Product Details:
|
Product Name: | Steel Wire Rope / Drilling Line | Grade: | STEEL |
---|---|---|---|
Special Use: | Free Cutting Steel | Tensile Strength: | 1770mpa, 1960mpa, Etc |
Type: | Galvanized | Processing Service: | Bending |
Packing: | Standared Package | Application: | Oilfield Drilling Well |
High Light: | API 9A Drilling Rig Spare Parts,Topland Oilfield steel wire rope,1770mpa Drilling Rig Spare Parts |

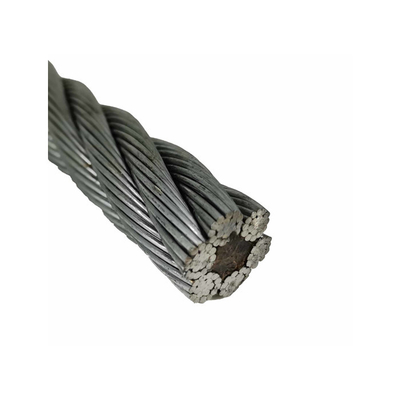

API 9A Drilling Rig Steel Wire Rope Drilling Rig Spare Parts 6x19S-IWRC Drilling Line
Drilling Line description of Drilling Rig Spare Parts:
The various lines for rotary drilling rigs require a complex balance of wire rope characteristics: abrasion resistance, crush resistance, fatigue resistance, strength, bendability and stability.
Each rig is different, of course, but the chart below provides general guidelines for selecting the right rope.
Steel Wire Rope Advantage:
♦ Excellent anti-abrasion performance and extrusion-resistance.
♦ Excellent Stability.
♦ Breaking force higher than fiber core steel wire rope.
♦ Customizing by customer’s requirements Occasions:
♦ Drilling line.
♦ Wire rope for workover.
Nominal diameter | Reference weight | Nominal Tensile Strength/MPa | |||||
1770 | 1960 | 2160 | IPS | EIP | EEIP | ||
/mm | kg/100m | Minimum breaking force/kN | |||||
12.7 | 64.5 | 102 | 113 | 124 | 102 | 118 | 130 |
13 | 67.6 | 106 | 118 | 130 | 107 | 124 | 136.2 |
14.3 | 81.8 | 129 | 143 | 157 | 129 | 149 | 165 |
16 | 102 | 161 | 179 | 197 | 159 | 185 | 204 |
18 | 130 | 204 | 226 | 249 | 202 | 233 | 257 |
19 | 144 | 227 | 252 | 278 | 226 | 259 | 285 |
20 | 160 | 252 | 279 | 308 | 250 | 287 | 316 |
22 | 194 | 305 | 338 | 372 | 302 | 348 | 383 |
24 | 230 | 363 | 402 | 443 | 358 | 412 | 453 |
25.4 | 258 | 407 | 450 | 496 | 399 | 460 | 506 |
26 | 270 | 426 | 472 | 520 | 418 | 481 | 529 |
28 | 314 | 494 | 547 | 603 | 483 | 555 | 610 |
28.6 | 327 | 515 | 571 | 629 | 503 | 578 | 636 |
31.8 | 404 | 637 | 706 | 778 | 617 | 711 | 782 |
32 | 410 | 645 | 715 | 787 | 625 | 720 | 792 |
34.9 | 487 | 767 | 850 | 937 | 743 | 854 | 943 |
35 | 490 | 772 | 855 | 942 | 747 | 859 | 948 |
36 | 518 | 817 | 904 | 997 | 789 | 906 | 999 |
38 | 578 | 910 | 1010 | 1110 | 876 | 1010 | 1110 |
38.1 | 581 | 915 | 1010 | 1120 | 880 | 1010 | 1110 |
40 | 640 | 1010 | 1120 | 1230 | 962 | 1100 | 1220 |
41.3 | 682 | 1080 | 1190 | 1310 | 1020 | 1170 | 1300 |
44 | 774 | 1220 | 1350 | 1490 | 1150 | 1330 | 1470 |
44.5 | 792 | 1250 | 1380 | 1520 | 1180 | 1360 | 1500 |
45 | 810 | 1280 | 1410 | 1560 | 1210 | 1390 | 1530 |
48 | 922 | 1450 | 1610 | 1770 | 1370 | 1580 | 1740 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
