Product Details:
|
| Product Name: | H-2-X Controlair Valve | Color: | Silver Gray |
|---|---|---|---|
| Material: | Aluminium Alloy | Working Temperature: | -40℃~60℃ |
| Weight: | 3kg | Leakage: | <=125Nml/min |
| Type: | Hand-operated Direction Valve | Size: | 15*13*32.5 |
| Overlow Character: | >=300l/min | Flow Character: | <=0.08MPa |
| High Light: | Operated Valve Drilling Rig Spare Parts,H-2-X Lever Operated Valve,H-2-X Controlair Valve |
||

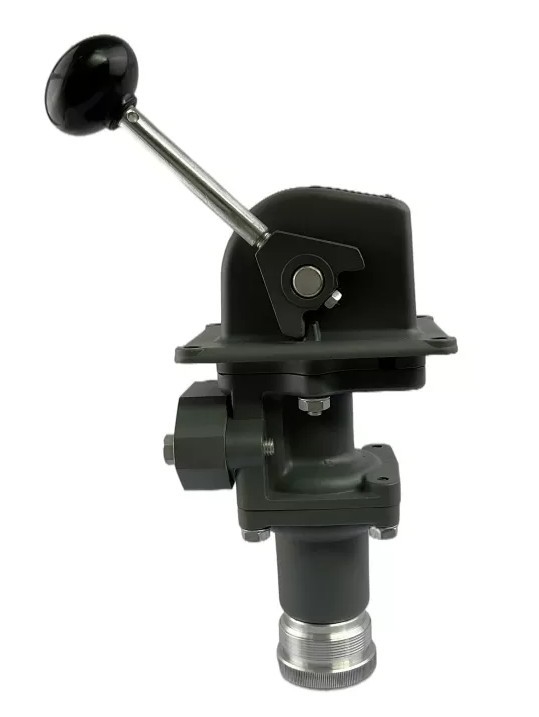

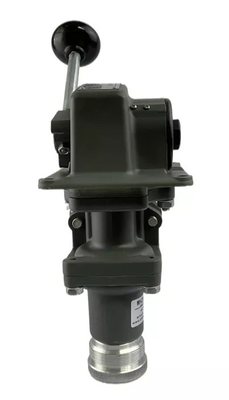

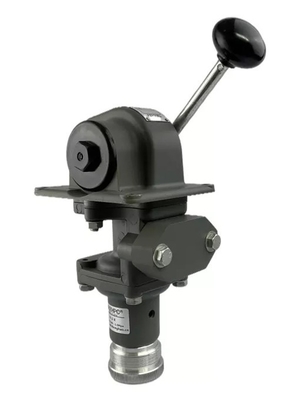

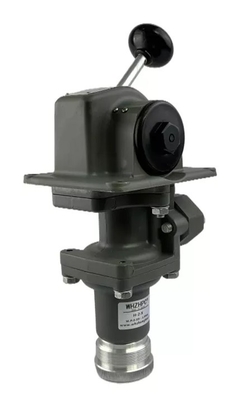

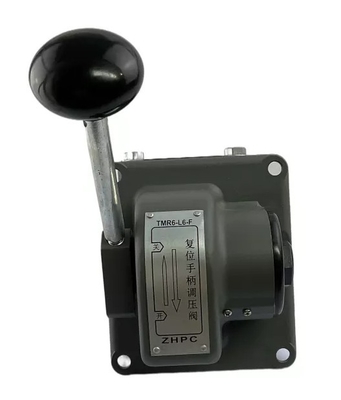

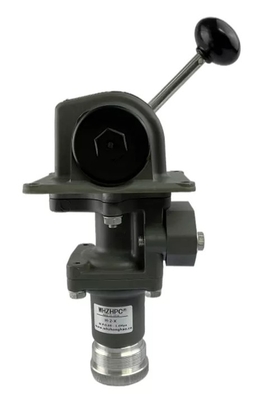

Lever Operated Valve Drilling Rig Spare Parts H-2-X Controlair Valve
H-2-X Controlair Valve description of Drilling Rig Spare Parts
The H-2 handle control valve is a two-way pressure regulator operated by the handle lever.

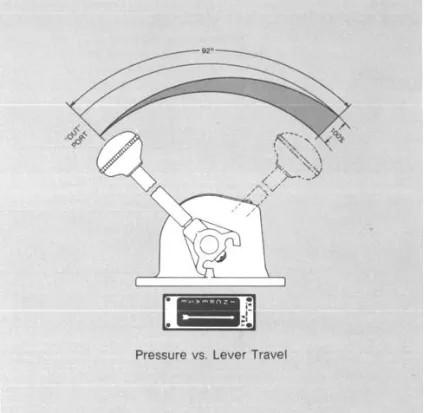

The original lever is in the closed position and the joystick moves clockwise (i. e., increased throttle direction).Increasing the handle angle, the output pressure gradually increases to the rated maximum output pressure.
When the handle lever remains in one position, the control valve maintains the outlet pressure at that position.
Drilling Rig Spare Parts H-2-X Controlair Valve Datasheet
| Model | Pressure Range (MPa) | Codename |
| H-2-X | 0-0.65 | 2 |
| 0-0.85 | 3 | |
| 0-1.25 | 4 | |
| H-2-FX | 0-0.65 | 2 |
| 0-0.85 | 3 | |
| 0-1.25 | 4 | |
| H-2-LX | 0-0.65 | 2 |
| 0-0.85 | 3 | |
| 0-1.25 | 4 | |
| H-2-EX | 0-0.65 | 2 |
| 0-0.85 | 3 | |
| 0-1.25 | 4 | |
| H-2-EFX | 0-0.65 | 2 |
| 0-0.85 | 3 | |
| 0-1.25 | 4 | |
| Note: Different pressure range can be used for each model; Reverreverse handle position can be provided according to user needs |
||

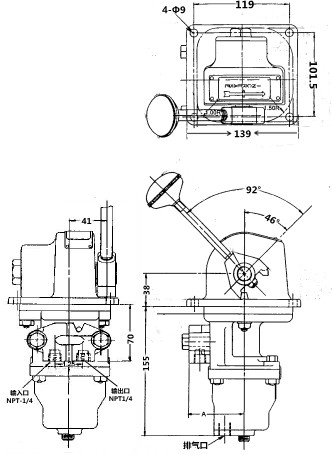

Pipe connection method: The right port is the input port NPT1/4. Left port is the output port-operated in a clockwise scale to output variable pressure from the minimum pressure position (off position). Model analysis: The H-2-X Control Valve-Handle lever removes the operating force at any position of the output pressure and can return to the minimum pressure position at any time The H-2-FX control valve-handle lever is held at any output pressure position.The friction force is adjustable. H-2-LX Control Valve-Handle lever moves out of the latch position (maximum limit pressure position) Handle lever automatically returns to the closed position.
