Oilfield Drilling Mud Pump Spare Parts Rubber Valve Seats

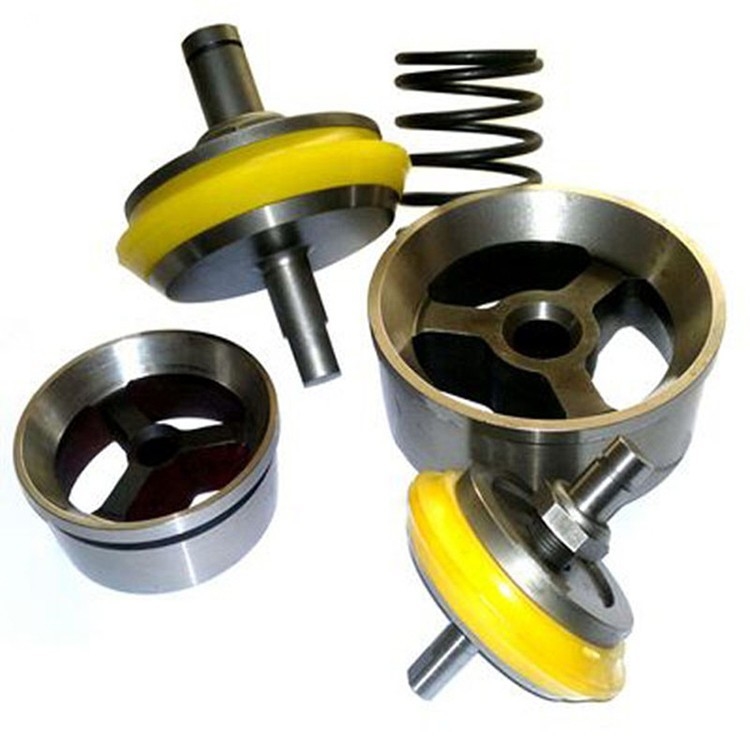

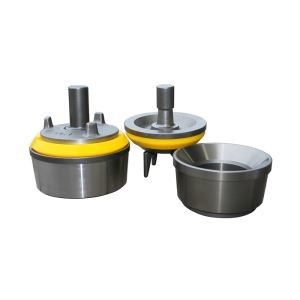

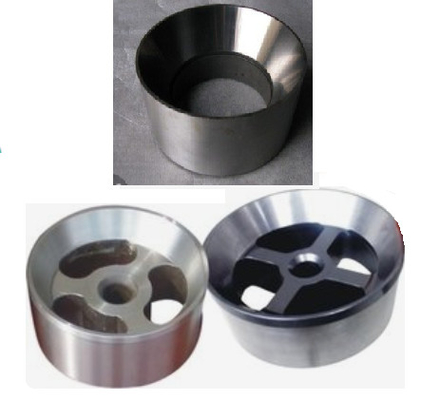

Mud Pump Spare Parts Valves & Seats

Topland supplies a wide variety of valves and seats, for the following applications, among others: Drilling Rig pumps, Work over pumps, high pressure well service fracturing pumps and cementing pumps.We provides a full range of Full Open, 3-Web, 4- Web and Plate Type design valves and seats available in API 4# thru API 8# sizes to fit all major mud pumps and accommodate for all types of drilling conditions, mud properties and temperatures reaching up to 350°F.

Features:
Forged and heat treated alloy steel valve body and seat.

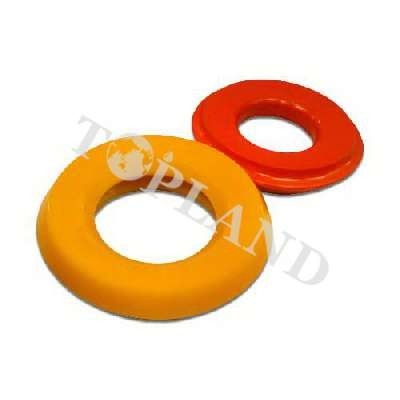

Insert permanently bonded to valve body.
High Temp and High Pressure urethane insert rated 300° and 7,500 PSI available.

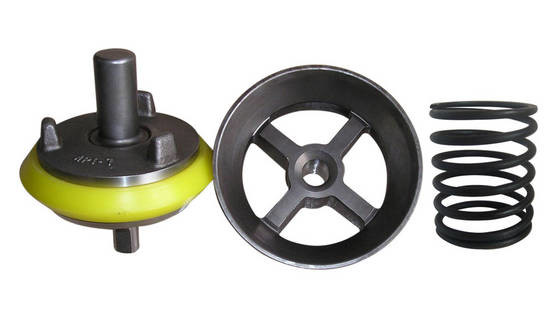

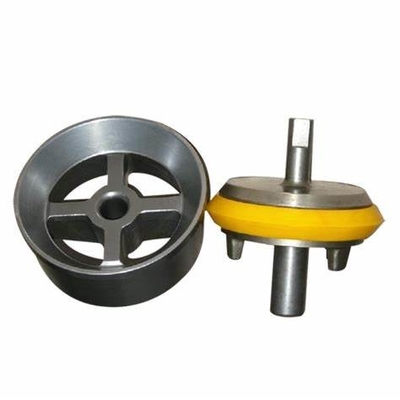

Cross Arms/4-Web Valve & Seat The Cross Arms Valve is a 4-Web Center Guided Valve System. This Valve has a replaceable Insert that is retained by a screw on plate with hammer lugs. Available in heavy duty standard temperature and high temperature versions. Oxide coated to fight corrosion while in storage. Available with standard API seats and “modified” API seats.


Full Open Mud Pump Valves & Seats is the leader in full open valve and seat supply; the first valves and seats in the industry rated for continuous service at 7500 psi.

We provide the following valves and much more:

EMSCO: F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600,D-375, D-700;

GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11;

IDECO: T–500, T–800, T–1000, T–1300, T–1600

NATIONAI: 7P–50, 8P–80, 9P–100, 10P-130, 12P–160, K-700, K-700A, K-500, K-500A,

OILWELL: A–350PT, A–560PT, A–600PT, A–850PT, A–1100PT, A–1400PT, A–1700PT

OMEGA: Opi1000; LS: 3NB-800, 3NB-1000, 3NB-1300, 3NB1300C, 3NB-1300C;

QZ: Sl3NB-1300, Sl3NB-1300A, Sl3NB-1300B, Sl3NB-1600.

Part of National 8P80 Mud Pump Part No.
