Product Details:
|
| Pressure: | 2000 PSI - 15000 PSI | Product Name: | API-6A Oilfield Wellhead Christmas Tree Cap |
|---|---|---|---|
| Keywords: | Tree Cap | Material Class: | AA, BB, CC, DD, EE, FF |
| Material: | AISI4130 Integral Forged | Processing: | Forged |
| Thread: | 2-3/8" EUE, 2-7/8" EUE, 3-1/2" EUE, 4-1/2" EUE | Bore Size: | 2-1/16" - 7-1/16" |
| Level: | PSL1, PSL2, PSL3, PSL3G | Standard Carried: | API Spec 6A, NACE-MR0175 |
| Application: | Wellhead Christmas Tree | ||
| High Light: | EUE API-6A Oilfield Wellhead Equipment,Oilfield Wellhead christmas tree cap,2-3/8" Oilfield Wellhead Equipment |
||

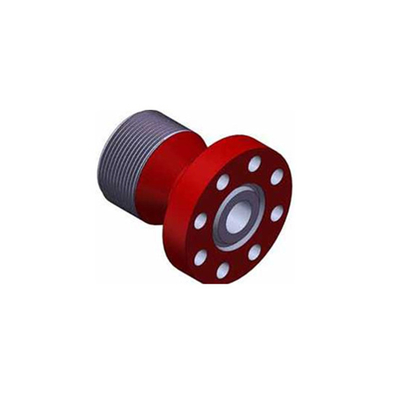

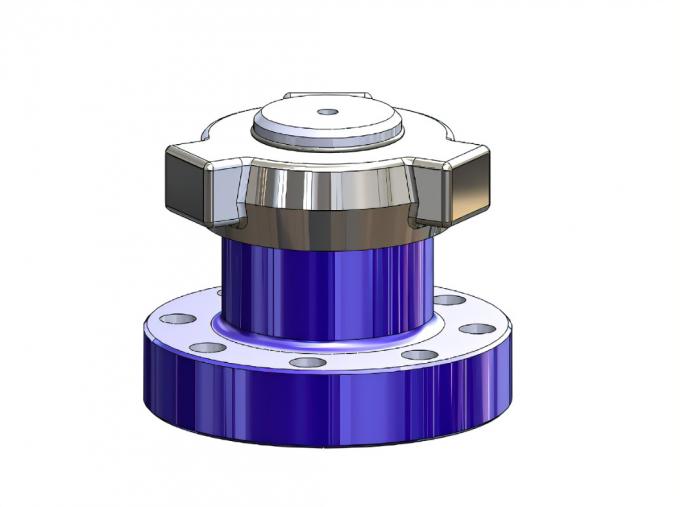

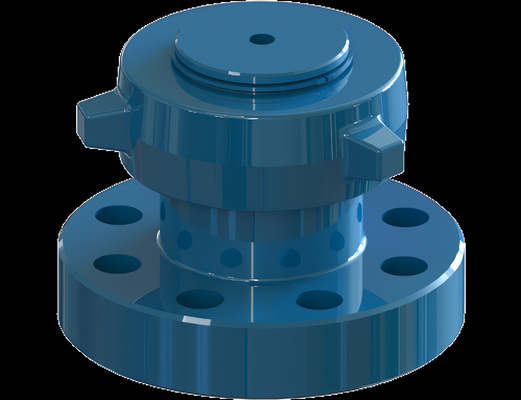

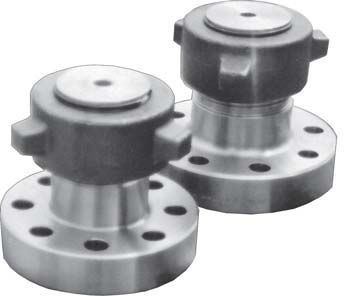

API-6A Oilfield Wellhead Equipment Christmas Tree Cap
A Christmas Tree Cap or Tree Cap, also known as Bottom Hole Test Adapter - BHTA, is an important component of Wellhead Assembly and Christmas Tree. As its name suggests, tree cap is often installed on the upper section of the Swab Valve which is right on top of the Christmas Tree. You will constantly find standard API-UPTBG(EUE) lift thread in the body of tree cap. The top plug of the tree cap has a thread for mounting a pressure gauge to measure well pressure. The Tree Cap provides access to Wellhead Assembly and Christmas Tree for service and monitoring. It provides quick access to the tubing bore for bottom hole testing, installing down-hole equipment, swabbing, and other services.
Wellhead Christmas Tree Caps are fully designed, manufactured, and tested in accordance with API Spec 6A & NACE MR0175 standards. Available in nominal bore sizes from 2-1/16" to 7-1/16" and working pressure ranging from 2000PSI to 20000PSI. The standard material for our tree caps is high quality integral forged AISI 4130 alloy steel, stainless steel and other material and sizes are also available upon request.
| Application: | Wellhead Christmas Tree | Bore Size: | 2-1/16" - 7-1/16" |
|---|---|---|---|
| Rated Working Pressure: | 2000 PSI - 15000 PSI | Material: | AISI4130 Integral Forged |
| Lifting Thread: | 2-3/8" EUE, 2-7/8" EUE, 3-1/2" EUE, 4-1/2" EUE | Standard Carried: | API Spec 6A, NACE-MR0175 |
| Material Class: | AA, BB, CC, DD, EE, FF | Temp Class: | K, L, P, R, S, T, U, V |
| Product Specification Level: | PSL1, PSL2, PSL3, PSL3G | Performance Requirement: | PR1, PR2 |
The provided Wellhead Tree Cap is developed by using qualitative components under the direction of our skilled professionals. Our customers can avail from us the finest quality assortment of Wellhead Tree Cap. Clients can avail this Wellhead Tree Cap at very reasonable rates. Also we can supply following wellhead components.
