Product Details:
Place of Origin: China
Brand Name: Topland
Certification: API
Model Number: Plunger & Flapper Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 50-500 USD PER SET
Packaging Details: Standard export packing
Delivery Time: 10~20 days
Supply Ability: 1000 SET PER MONTH

Oilfield API Drill Pipe Float Valve Sub Downhole Drilling Tools Drill Pipe

Description
Product Name: Float Valve Sub Port Size: DN50-DN600
Pressure: High Pressure Color: Customer's Request
Material: Forged, Ductile Iron,Aluminum Bronze Power: Hydraulic
Lubrication: Grease Or Oil Application: AH Slurry Pump Stuffing Box
High Light:

Oilfield Downhole Drilling Tools

,

Drill Pipe float valve sub

,

Downhole Drilling Tools Drill Pipe

Oilfield API Drill Pipe Float Valve Sub Downhole Drilling Tools Drill Pipe

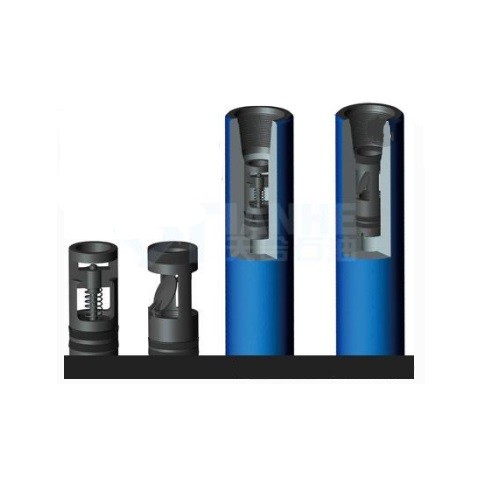

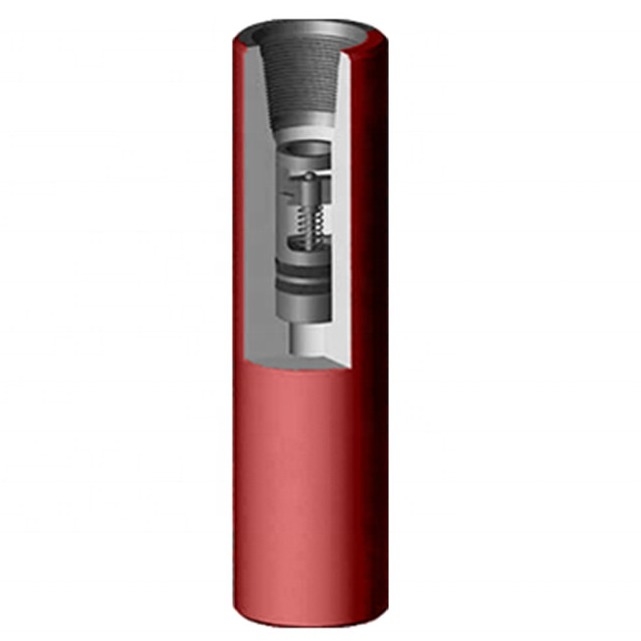

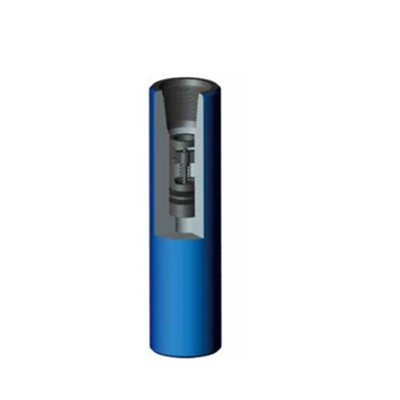

Float Valve Sub Description of Downhole Drilling Tools

Float valve sub is one of the necessary tools for oil drilling. The float valve sub is connected to the upper part of the drill bit, and the float valve assembly in the joint is close to the connection thread of the drill bit, and can also be connected to the required place of the drill string. Its main functions are: to prevent mud from being brought into drill cuttings, sediment backflow, and block the water hole of the drill bit; when blowout and kick occur, the valve cover of the float valve assembly automatically closes the water hole, preventing the inside of the pipe string. The occurrence of blowout accidents.

Oilfield API Drill Pipe Float Valve Sub Downhole Drilling Tools Drill Pipe 0

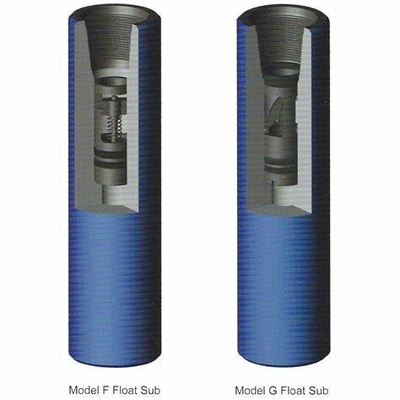

Model G I.D. of Valve
Model F I.D. of Valve
Size Valve
D = Diameter of Valve
R = (D Plus 1/32) Diameter of Recess for Valve
L = Length of Valve
T* = Diameter of Recess for TOTCO Spider
N/A
1
1R
1 21/32
1 11/16
5 7/8
1 5/16
1
1 1/4
1F2R
1 29/32
1 15/16
6 1/4
1 1/2
1 1/4
1 9/16
2F3R
2 13/32
2 7/16
6 1/2
1 29/32
1 5/8
1 7/8
3F
2 13/16
2 27/32
10
2 7/16
1 5/8
1 7/8
3 1/2IF
3 1/8
3 5/32
10
2 11/16
1 31/32
2 5/16
4R
3 15/32
3 1/2
8 5/16
2 15/16
2 3/16
2 1/2
4F
3 21/32
3 11/16
12
3 1/4
2 1/4
2 3/4
5R
3 7/8
3 29/32
9 3/4
3 3/8
2 7/8
3 1/4
5F6R
4 25/32
4 13/16
11 3/4
4 9/32

4 1/18
6F
5 11/16
5 23/32
14 5/8
5 3/16



Oilfield API Drill Pipe Float Valve Sub Downhole Drilling Tools Drill Pipe 1
