Product Details:
|
Product Name: | Releasing And Circulating Overshot | Material: | Alloy Steel, Carbon Steel |
---|---|---|---|
O.D (mm): | 89 98 102 114 119 121 138 143 146 149 | Max.Catch Size(mm) Of Spiral Grapple: | 60.3 79.4 73 89 95.3 98.4 105 121 127 |
Max.Catch Size(mm) Of Basket Grapple: | 48.3 66.7 60.3 73 82.6 85.7 89 108 114 | API Connection: | NC26 NC31 NC38 NC50 |

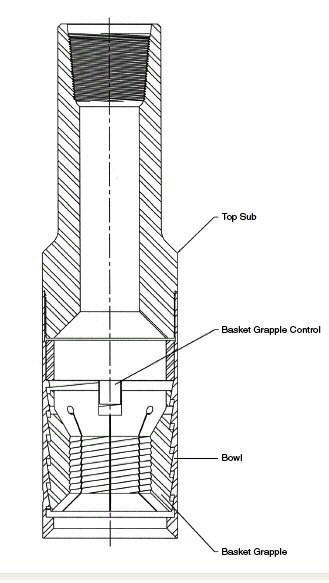

Grapple Type: | Basket Grapple ; Spiral Grapple | Outside Parts: | Top Sub, Bowl, And Standard Guide. |
SH: | Slim Hole | FS: | Full Strength |
High Light: | Circulating overshot drilling tool,Api drilling fishing tool,Releasing overshot drilling tool |
Releasing And Circulating Overshot Downhole Drilling Tools Api Fishing Tool Series 150
Overshot Description of Downhole Drilling Tools

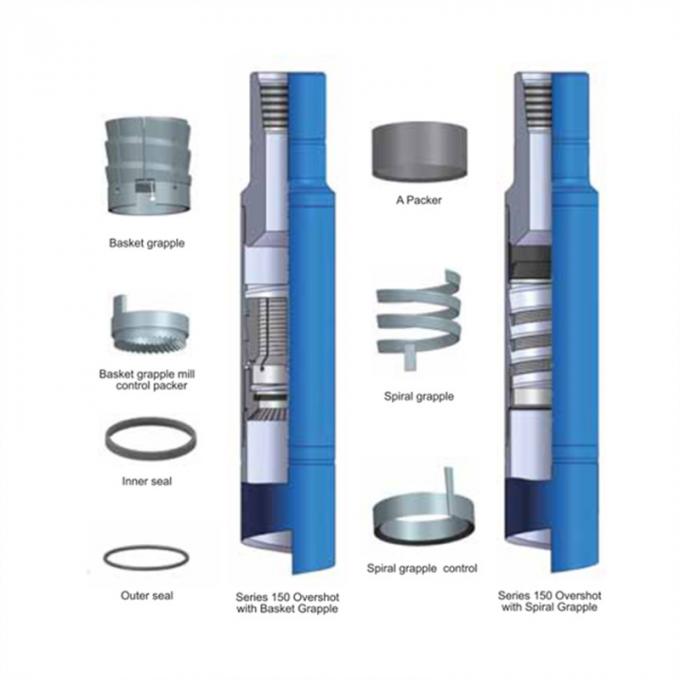

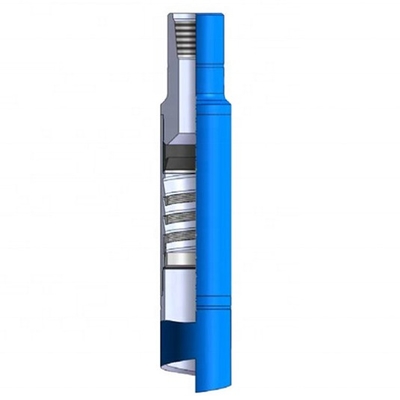

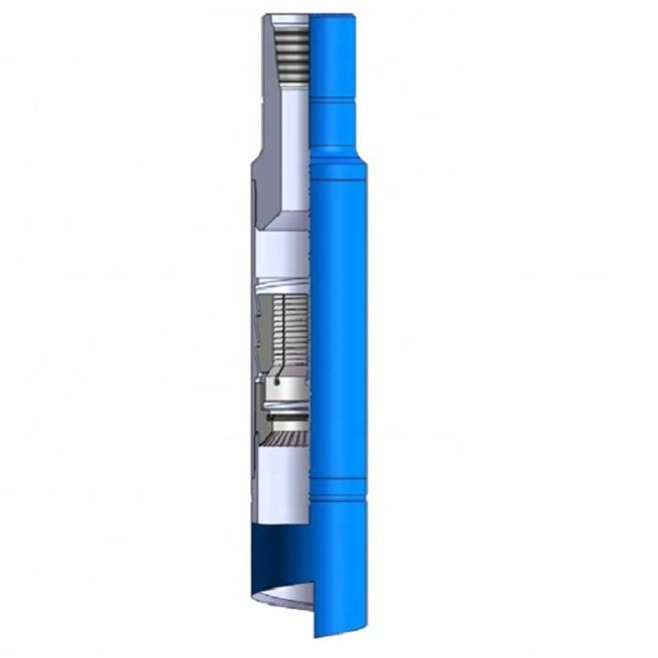

LT-T Type Releasing and Circulating Overshot is one of the most common external fishing tool for engage, pack off and retrieve tubular fish, especially for fishing drill collar and drillpipe. There is a high pressure mud fluid circulating when overshot caught the drill collar or drill pipe with spiral grapple and mill control. Basket grapple and mill shoe are used when catch the tubing, the mill shoe can be used to mill the fish top and sharp edge to make the fish run into the overshot.
LT-T Type Releasing and Circulating Overshot has the advantage of simple structure, easily operation and high success fishing rate. Spare parts such as grapples choose advantage raw material, we forging and machining with CNC lathe, advanced heat treatment technology keeps the teeth hardness and internal toughness of the grapple. All these material and machining technology makes the cylinder and performance reliable. The overshot can catch a heavier fishing weight and longer service life.
Overshot Datasheet of Downhole Drilling Tools
Model | Product Code | O.D (mm) |
Max.Catch Size(mm) | API Connection | |
Spiral Grapple | Basket Grapple | ||||
LT-T89F.S. | L01-1100 | 89 | 60.3 | 48.3 | NC26 |
LT-T98S.H. | L01-4600 | 98 | 79.4 | 66.7 | NC26 |
LT-T102F.S. | L01-1300 | 102 | 73 | 60.3 | NC26 |
LT-T114S.H. | L01-1500 | 114 | 89 | 73 | NC31 |
LT-T119S.F.S. | L01-6000 | 119 | 95.3 | 82.6 | NC31 |
LT-T121S.H. | L01-6100 | 121 | 98.4 | 85.7 | NC31 |
LT-T138F.S. | L01-6400 | 138 | 105 | 89 | NC38 |
LT-T143S.H. | L01-1700 | 143 | 121 | 108 | NC38 |
LT-T146F.S. | L01-1800 | 146 | 121 | 108 | NC38 |
LT-T149S.H. | L01-1900 | 149 | 127 | 114 | NC38 |
LT-T168S.H. | L01-2200 | 168 | 139.7 | 120.8 | NC50 |
LT-T181F.S. | L01-2300 | 181 | 146 | 127 | NC50 |
LT-T194S.F.S | L01-2400 | 194 | 159 | 141 | NC50 |
LT-T200F.S. | L01-2500 | 200 | 159 | 141 | NC50 |
LT-T200S.H. | L01-5500 | 200 | 171.5 | 155.6 | NC50 |
LT-T206S.H. | L01-2700 | 206 | 178 | 163 | NC50 |
LT-T206F.S. | L01-2600 | 206 | 165 | 149 | NC50 |
LT-T210F.S. | L01-5100 | 210 | 168 | 149 | NC50 |
LT-T232S.H. | L01-3000 | 232 | 203 | 187 | NC50 |
LT-T245F.S. | L01-3100 | 245 | 203 | 184 | 6 5/8 REG |
LT-T257F.S. | L01-5200 | 257 | 216 | 197 | 6 5/8 REG |
LT-T270F.S. | L01-3300 | 270 | 228.6 | 209.6 | 6 5/8 REG |
LT-T288F.S. | L01-3500 | 286 | 244.5 | 225.4 | 6 5/8 REG |
LT-T298F.S. | L01-3600 | 298 | 257 | 238.1 | 6 5/8 REG |
LT-T324 | L01-4300 | 324 | 286 | 267 | 6 5/8 REG |
LT-T350 | L01-4400 | 350 | 305 | 286 | 6 5/8 REG |
