Product Details:
|
Product Name: | Drawworks JC70 Rope Guider Rope Arrange | Surface: | Paiting |
---|---|---|---|
Color: | Red/Others | Processing Type: | Forging |
Condition: | New | Use: | Oilfield Well Drilling |
Application: | Drawworks Equipments | Warranty: | 1 Year |
High Light: | Drilling drawwork parts JC40,oil rig drawworks Rope Arrange,drawwork parts JC50 |
Topland is an integrated supplier specializing in businesses related to the oil and natural gas industries, which was established in 2008.From its birth to the present day, we maintain our status as one of the world’s largest distributors, producers and traders. With a long track record of supplying premium equipment and components with superior quality, we have positioned ourselves as the PREFERIENTIAL choice for clients who want access to Chinese manufacturing with proven integrity and value-added service.

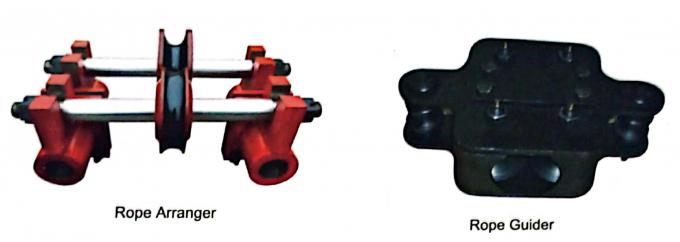

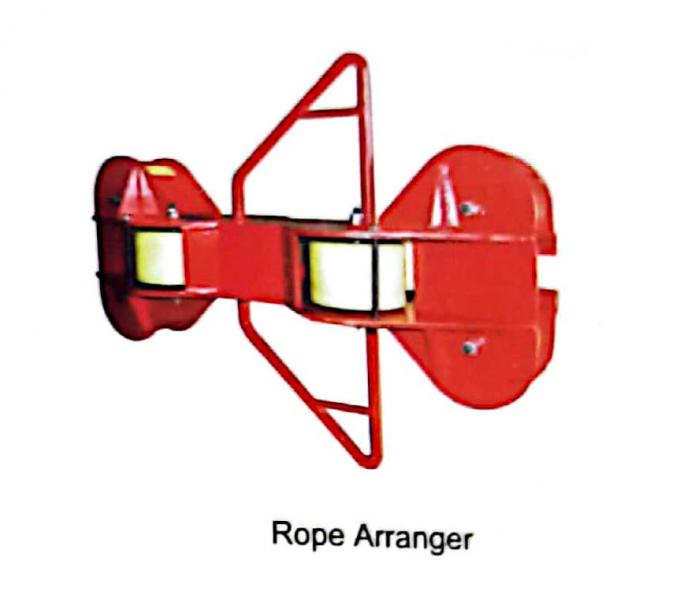

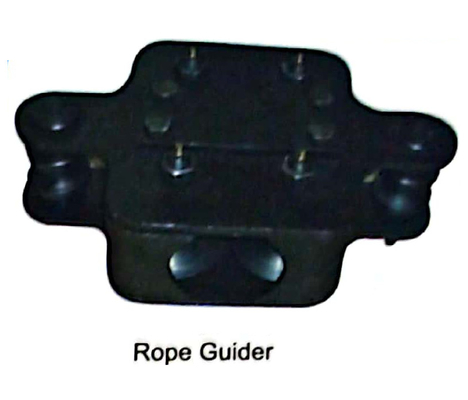

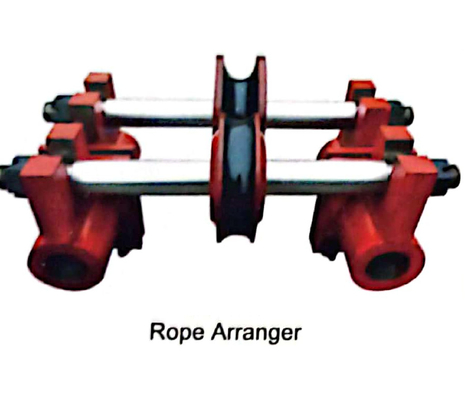

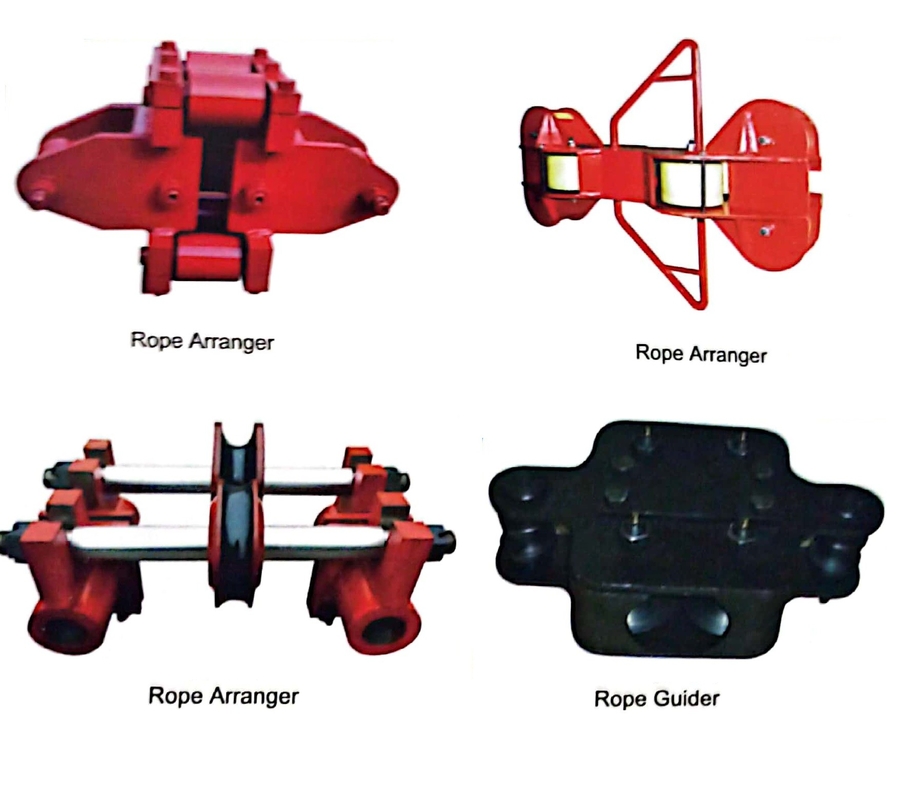

Drilling Drawwork Parts JC70 Rope Guider Rope Arrange
T105-001.00 Wireline clampφ38
The new-style applicable device can achieve automatic rope arrangement, ease labor intensity, improve quality of rope arrangement and prolong the service life of steel rope It is a kind of automatic and mandatory mechanical rope arrangement device. The output gear set is installed on the ends of the drum, chain wheel drive and bevel gear drive put in rotation the two reversing bevel gears that embed on the same transmission shaft which is connected with lead screw through safety clutch. Wheel set for rope arrangement is amounted on the lead screw, two reversing bevel gears are installed on the slide combination device of its transmission shaft, with the slide combination device controlling its moving towards left and right through shifter fork, and the action for the two cylinders is controlled by two mechanical control valves and a reversing valve.
Pressure switch PEV-1/4-B | 512604051500030000 | Straightway joint QS-1/2-12 | 520902040101701000 |
Shuttle valve OS-1/4-B | 512704110400070000 | Hose PAN-L12 x 1.75 | 150204120020100000 |
Rapid discharge valve NPT1/2 | 512704070600100000 | Hose PAN-L10 x 1.5 | 150204120020200000 |
Ratary air guide union XJ-L15 | 520902900200003000 | Valve terminal single valve piece HCPV18-M1H-30LS-3GLS-1/4 | 176070 |
Joint NPT1/2 | 520203080200150000 | Valve terminal single valve piece CCPV18-M1H-2 x 3-GLS-1/4 | 163189 |
Air horn QF66-GF74 | 561122090000010000 | Bolt M36×160 | AF700303-37 |
Right-angle joint QSL-1/4-10 | 520902040102200000 | Bolt M36×120 | AF700303-20 |
Straightway joint QS-1/4-10 | 520902040101400000 | Bolt M36×125 | AF700303-12 |
Straightway joint QS-3/8-12 | 520902040104500000 | Blocking nut M36-8-Zn.D | 420421016360400000 |
Right-angle joint QSL-3/8-10 | 520902040103700000 | Nut M36-6-Zn.D | 420402016360300000 |
Joint QSSF-1/4-10-B | 520902040102000000 | Nut M36-8-Zn.D | 420402026360400000 |
Joint QSSF-1/2-12-B | 520902040101901000 | Tee QST-10 | 520902040100400000 |
