Product Details:
|
| Product Name: | Master Bushing And Insert Bowls | Machine Type: | Drilling Equipment |
|---|---|---|---|
| Processing Type: | Forging | Material: | Alloy Steel |
| Casing Size: | 2 3/8-30 Inch | Rotary Size: | 17 1/2- 49 1/2 Inch |
| Surface Treatment: | High Frequency Quenching | Bush Type: | Solid And Split Bushings |
| Application: | Rotary Table | Packing: | Standard Exported Package |
| High Light: | API 7K Master Roller Bushing,API 7K Insert Bowls,Tubular Handling Tools |
||
API 7K Master Bushing Roller Bushing And Insert Bowls Tubular Handling Tools

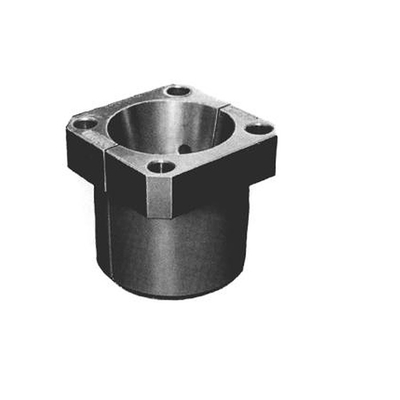

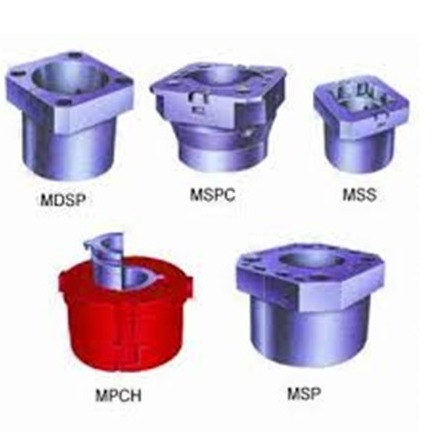

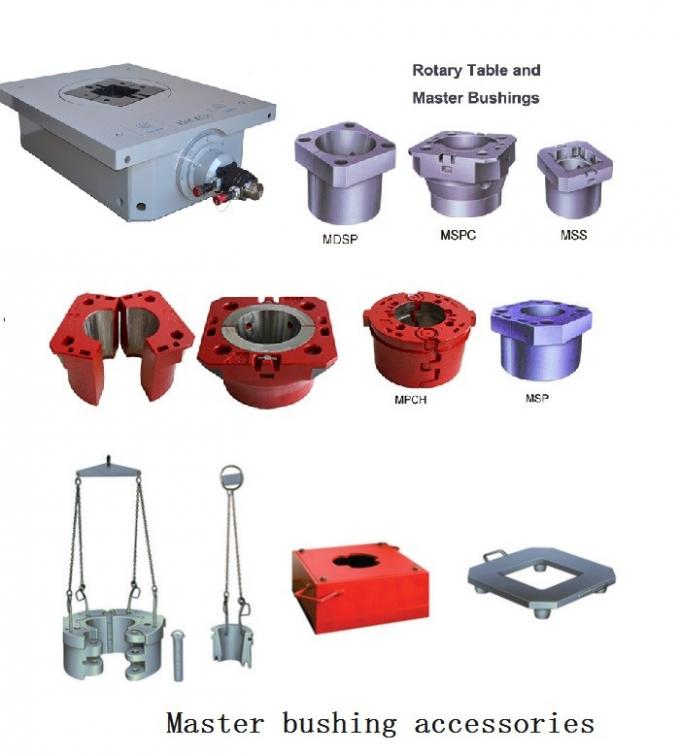

Tubular Handing Tools Master Bushing :
These series of rotary bushing are suitable for API standard rotary slips, drill collar slips, casing slips,insert bowls and roller bushings, with two structures: solid body and split body. Two drive types are available: pin driven and square driven. It is designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”. These series of rotary bushing are suitable for API standard rotary slips, drill collar slips, casing slips,insert bowls and roller bushings, with two structures: solid body and split body. Two drive types are available: pin driven and square driven. It is designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”
The technicals of Tubular Handing Tools - casing bushing
| Model | Rotary table size (in) | Insert bowl | Tubulars OD |
| (in) | |||
| MSS(solid) | 17 1/2~23 | 1011 | 2 3/8~7 5/8 |
| Extended 1024 | 2 3/8~8 5/8 | ||
| 27 1/2 | 1022 | 2 3/8~7 5/8 | |
| Extended 1025 | 2 3/8~8 5/8 | ||
| 1026 | 9 5/8~10 3/4 | ||
| 2002 | 11 3/4~13 3/8 | ||
| MSS(Split) | 17 1/2~27 1/2 | / | 2 3/8~7 5/8 |
| MSPC(Solid) | 20 1/2~22 1/2 | 1809 | 2 3/8~8 5/8 |
| 1902 | 9 5/8~10 3/4 | ||
| Master bushing 1805-1 | 11 3/4~13 3/8 | ||
| Master bushing 19333 | 11 3/4~13 3/8 | ||
| 23~27 1/2 | 1810 | 2 3/8~8 5/8 | |
| 1904 | 9 5/8~10 3/4 | ||
| 1903 | 11 3/4~13 3/8 | ||
| MDSP(Split) | 17 1/2~20 1/2 | / | 2 3/8~8 5/8 |
| MSP(Split) | 27 1/2 | / | 2 3/8~8 5/8 |
| MPCH | 37 1/2 | 6608 | 2 3/8~8 5/8 |
| 6609 | 9 5/8~10 3/4 | ||
| 6610 | 11 3/4~13 3/8 | ||
| 49 1/2 | MPCH 37 1/2 | 2 3/8~13 3/8 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
