Product Details:
|
| Type: | Mud Pump, Triplex Single-Acting | Core Components: | Pump, Gear, Engine, Motor |
|---|---|---|---|
| Dimension: | 4615*3276*2688mm | Engine: | Disel Engine |
| Function: | Drilling Milling Machining | Power Rating HP/KW: | 1600/ 1193 |
| Stroke Rating SPM: | 120 | Inlet Dia.(in/mm): | 12"/305 |
| Outlet Dia.(in): | 5-1/8" Flange 5000psi | Applicable Industries: | Construction Works , Energy & Mining |
| High Light: | Topland Oilfield Mud Pump Spare Parts,API Mud Slurry plunger pump,Mud Pump Spare Parts Drilling Rig |
||

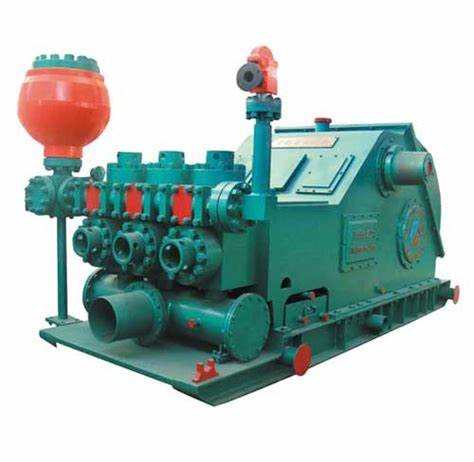

API Oilfield Mud Pump Spare Parts Drill Mud Slurry Plunger Pump For Drilling Rig F-1600
Description of Mud Pump Spare Parts
F series mud pump are applicable to the requirement of high pump pressure in oilfield and high displacement technology of well drilling with its solid and compact structure, small volume and out-standing operation performance.
F series mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance effectively and extended the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.
The power end of F series mud pump adapts combined lubricating system of forced lubrication and splash lubrication. Reliable to lubricate and increased the service life of power end.
Mud Pump Spare Parts Specifiction
| Model | F500 | F800 | F1000 | 1300 | F1600 | F2200 |
| Power rating HP(kw) | 500(373) | 800(597) | 1000(746) | 1300(969) | 1600(1193) | 2200(1618) |
| Stroke rating SPM |
165
|
150 | 140 | 120 | 120 | 105 |
| Stroke length (in/mm) | 7.5"/190.5 | 9"/228.6 | 10"/254 | 12"/305 | 12"/305 | 356 |
| Gear ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 | 3.512 |
|
Inlet dia. (in/mm) |
8"/203 | 10"/254 | 12"/305 | 12"/305 | 12"/305 | 305 |
|
Outlet dia. (in) |
4" flange 5000psi |
5-1/8" flange 5000psi | 5-1/8" flange 5000psi | 5-1/8" flange 5000psi | 5-1/8" flange 5000psi | 130 |
| Valve | API 5# | API 6# | API 6# | API 7# | API 7# | API 8# |
| Max. liner (in/mm) | 6-3/4"/170 | 6-3/4"/170 | 6-3/4"/170 | 7"/180 | 7"/180 | φ140-φ230 |
|
Overall dimension L*W*H (mm) |
3658*2709*2231 |
3963*3025*2410 |
4267*3167*2580 |
4617*3260*2600 |
4615*3276*2688 |
6000*3456*2746 |
| Approx.weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 | 38800 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,
PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
