Product Details:
|
| Product Name: | Safety Clamp | Machine Type: | Drilling Equipment |
|---|---|---|---|
| Processing Type: | Forging | Material: | Stainless Steel; Carton Steel |
| Use: | Pipe Clamp | Application: | Oil Field |
| Color: | Red | Size: | 2 7/8"~36 1/8" |
| Standard: | API 7K | Packing: | Standard Exported Package |
| High Light: | Tubular Handling Tools Safety Clamps,Oil Drilling Safety Clamp Topland,API 7K MP Safety Clamps |
||

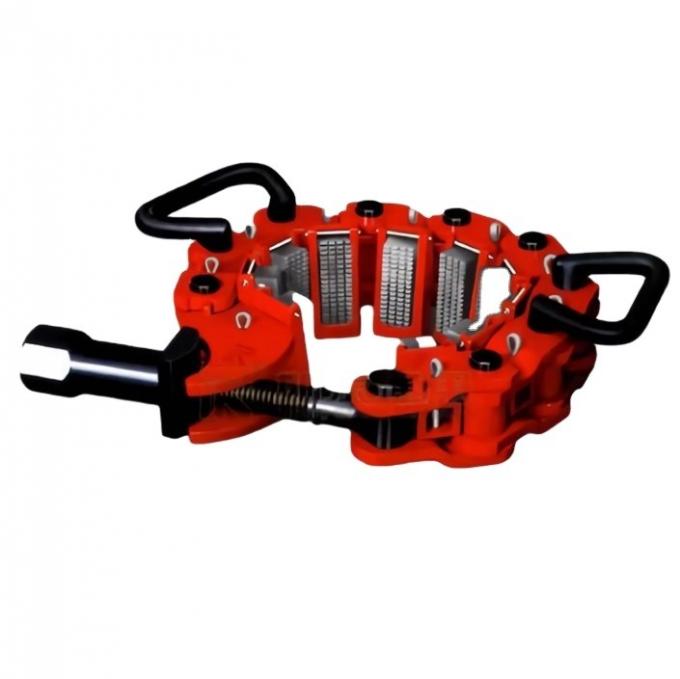

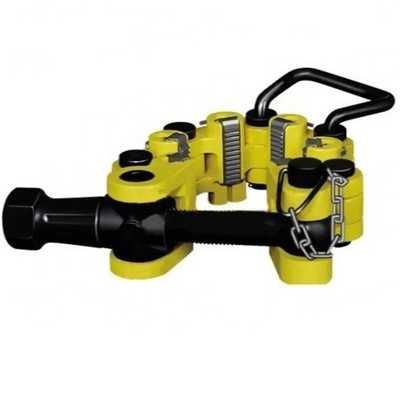

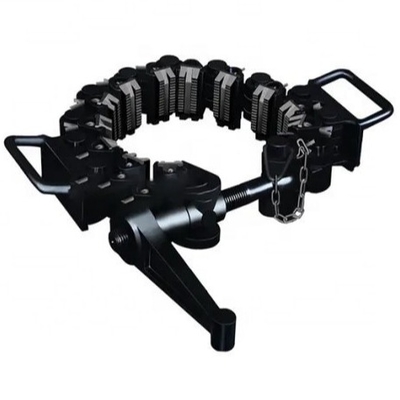

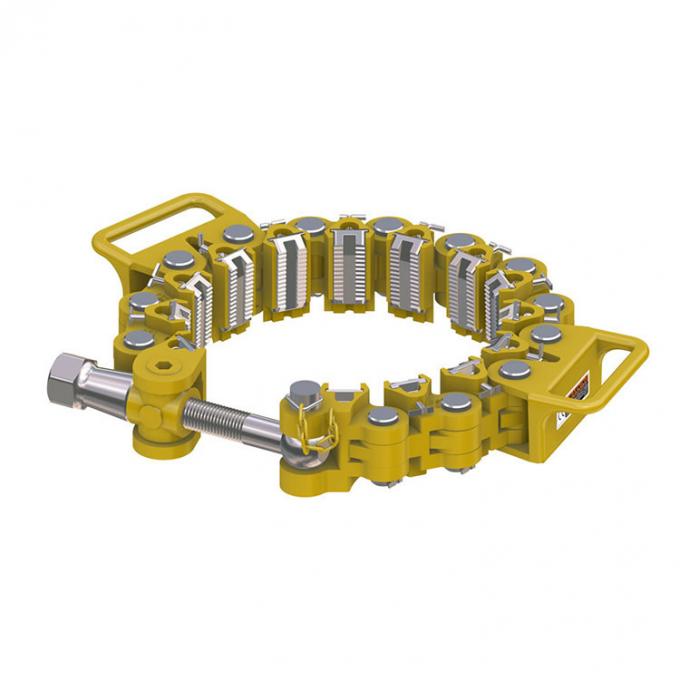

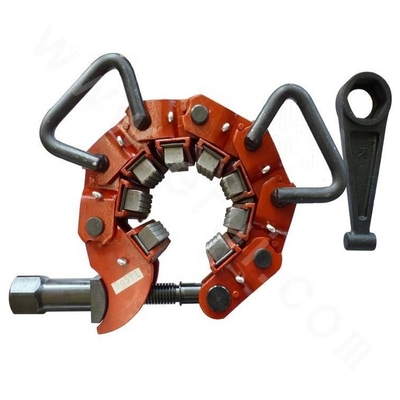

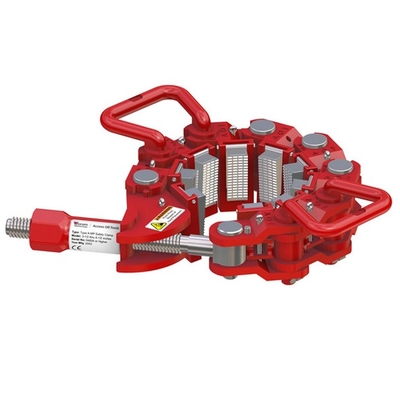

API 7K Tubular Handling ToolsType T/C/MP Oil Drilling Safety Lifting Clamps
Safety Clamp description of Tubular Handing Tools:
The Safety Clamp consists of individual links, flexibly hinged together. Each link has a separate tapered slip which acts as a gripping member, much like a tapered rotary slip, and each slip is held in a retracted position on the taper by spring tension. When the clamp is tightened, each small slip take a firm initial grip on the surface of the pipe. Should the pipe start to fall, or should load increase occur against the slips, the taper mounting causes each slip to wedge tighter against the surface of the pipe to increase the grip or lock the pipe against further movement.
Gripping pressure is always uniform around the pipe so there is little danger of crushing thin-walled pipe or damaging the pipe surface. And, since each link, complete with tapered slip, is interchangeable as a unit, the Safety Clamp is readily adaptable to virtually any diameter. Each link changes the effective gripping diameter of the clamp one inch. All parts are made of alloy steel, heat-treated for strength and gripping ability.
Tubular Handing Tools Safety Clamp Technical Parameter:
| Type /(Range) | P/N: | Qty | Weight Ibs. | MP Parts list | ||||||
| MP-S | Links | Grip | W/O | C/W | Index | P/N: | Description | Qty | Weight | |
| Dies | Case | Case | No. | Uint | Ibs. | |||||
| 2 7/8" - 4 1/8" | 3030 | 7 | 8 | 83 | 125 | 1 | 3335 | Link, Complete for MP-S only | AR | 9 |
| 4" - 5" | 3031 | 8 | 9 | 91 | 133 | 1 | 3319 | Link, Complete for MP-R, MP-M MP-L and MP-XL | AR | 8¾ |
| MP-R | 2 | 3306 | Link (with cotter pin for carrier) | 1 | 4¼ | |||||
| 4½" - 5 5/8" | 33011 | 7 | 8 | 81 | 123 | 3 | 3307 | Pin, for link (with cotter pin) | 1 | ¾ |
| 5½" - 7" | 3012 | 8 | 9 | 89 | 131 | 4 | 3325 | Carrier Assy, Die for MP-S only | 1 | 6¼ |
| 6¾" - 8¼" | 33013 | 9 | 10 | 97 | 139 | 4 | 3324 | Carrier Assy, Die for MP-R, MP-M, MP-L , and MP-XL only | 1 | 6 |
| 8" - 9¼" | 33014 | 10 | 11 | 105 | 147 | 5 | 3333 | Die, Grip (with cotter pin) for MP-S only | 1 | 1¼ |
| 9¼" - 10½" | 3015 | 11 | 12 | 113 | 155 | 5 | 3310 | Die, Grip (with cotter pin) for MP-R, MP-M,MP-L, and MP-XL only | 1 | 1 |
| MP-M | 6 | 3309 | Carrier, Die | 1 | 2½ | |||||
| 10½" - 11½" | 3016 | 12 | 13 | 121 | 163 | 7 | 3311 | SPRING | 1 | |
| 11½" - 12½" | 3017 | 13 | 14 | 129 | 171 | 8 | 5104-18 | Pin, Roll | 1 | |
| 12½" - 13 5/8" | 3018 | 14 | 15 | 137 | 179 | 9 | 51405-28 | Pin, Cotter | 1 | |
| 13 5/8" - 14¾" | 3019 | 15 | 16 | 145 | 187 | 10 | 3318 | Bars, Link side, pr | 1 | 2½ |
| 14¾" - 15 7/8" | 3300 | 16 | 17 | 153 | 195 | 11 | 3304 | Link, Latch for MP-S, MP-R, MP-M and MP-L | 1 | 7 |
| MP-L | 11 | 3321 | Link, Latch for MP-XL only | 1 | 14 | |||||
| 15 7/8" - 17" | 3301 | 17 | 18 | 173 | 215 | 12 | 3308 | Pin, Screw (with cotter pin) | 1 | ½ |
| 17" - 18½" | 33022 | 18 | 19 | 181 | 223 | 13 | 3315 | Bushing, Screw pin | 1 | ½ |
| 181/8" - 19 3/8" | 3303 | 19 | 20 | 189 | 231 | 14 | 1405-10 | Pin, Cotter (1 per link pin) | AR | |
| MP-XL | 15 | 3302 | Screw | 1 | 5½ | |||||
| 19 3/8" - 20 3/8" | 3302 | 19 | 20 | 196 | 280 | 16 | 2714 | Washer, Thrust | 1 | 1 |
| 20 3/8" - 21½" | 3025 | 20 | 21 | 204 | 288 | 17 | 3303 | Nut, Makeup | 1 | 3½ |
| 21" - 22 5/8 " | 33032 | 21 | 22 | 212 | 296 | 18 | 3305 | Handle (2 required for MP-S, MP-R and MP-M;4 required for MP-L and MP-XL | R | 4½ |
| 22 5/8" - 23 3/4" | 33033 | 22 | 23 | 220 | 304 | 19 | 3316 | Lug, Hold, down (2 required for MP-S, MP-R, and MP-M; 4 required for MP-L and MP-XL) | Opt | 5¾ |
| 23¾" - 24 7/8" | 3034 | 23 | 24 | 228 | 312 | 20 | 3317 | Eye, Lifting (2 required for MP-S, MP-R, and MP-M;4 required for MP-L and MP-XL) | ||
| 24 7/8" - 26" | 33035 | 24 | 25 | 236 | 320 | 21 | 3320 | Wrench | Opt | 4¾ |
| 26" - 27 1/8" | 3036 | 25 | 26 | 244 | 328 | 22 | 3331 | Case for MP-S, MP-R, MP-M and MP-L | 1 | 5 |
| 29 3/8" - 30½" | 33039 | 28 | 29 | 330 | 354 | 22 | 3334 | Case for MP-XL | 1 | 42 |
| Type | Hand Pipe Size | Qty. of Chain Links | Weight | |
| mm(in) | kg | 1b | ||
| WA- C | 88.9-117.5(3 1/2-4 5/8) | 7 | 20.9 | 46 |
| 114.3-142.9(4 1/2-5 5/8) | 8 | 25 | 55 | |
| 139.7-168.3(5 1/2-6 5/8) | 9 | 27.7 | 61 | |
| 165.1-193.7(6 1/2-7 5/8) | 10 | 29.1 | 64 | |
| 190.5-219.1(7 1/2-8 5/8) | 11 | 31.3 | 69 | |
| 215.9-244.5(8 1/2-9 5/8) | 12 | 32.7 | 72 | |
| 241.3-269.9(9 1/2-10 5/8) | 13 | 40 | 88 | |
| 266.7-295.3(10 1/2-11 5/8) | 14 | 41.8 | 92 | |
| 292.1-320.7(11 1/2-12 5/8) | 15 | 44 | 97 | |
| 317.5-346.1(12 1/2-13 5/8) | 16 | 46.3 | 102 | |
| 342.9-371.5(13 1/2-14 5/8) | 17 | 48.6 | 107 | |
| 368.3-396.9(14 1/2-15 5/8) | 18 | 50.9 | 112 | |
