Product Details:
|
| Material: | 35Crmn OR 40CrMoMn | Processing: | Forged |
|---|---|---|---|
| Working Pressure: | 5000psi, 7500 Psi, And 1000 Psi Pressure. | Color: | Stainless Steel Or Red |
| Condition: | New | Application: | Drilling Mud Pump |
| Useage: | Fluid End Parts | P/N: | 1291280 |
| High Light: | 8P-80 Mud Pump Spare Parts,1291280 Fluid end Module,Mud Pump Spare Parts 1291280 |
||

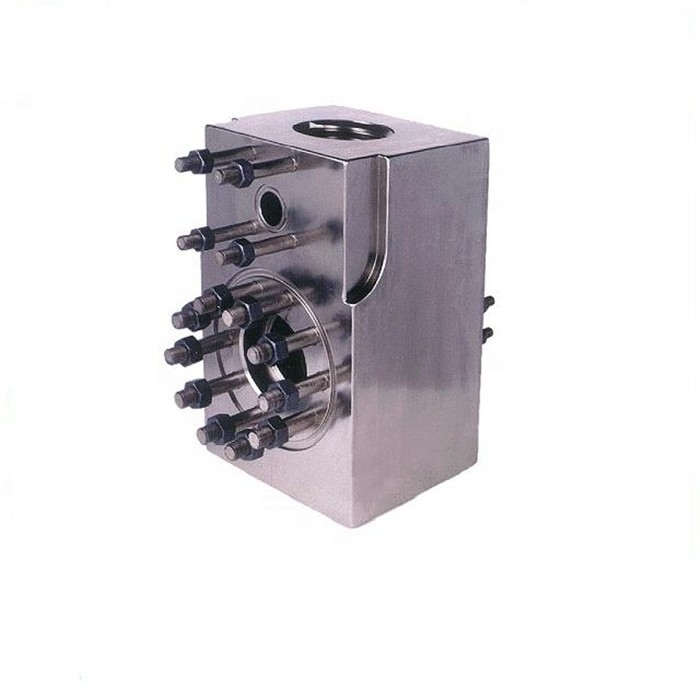

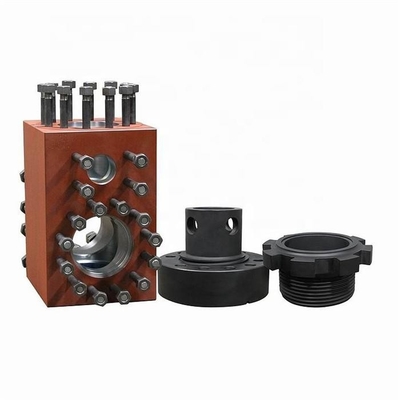

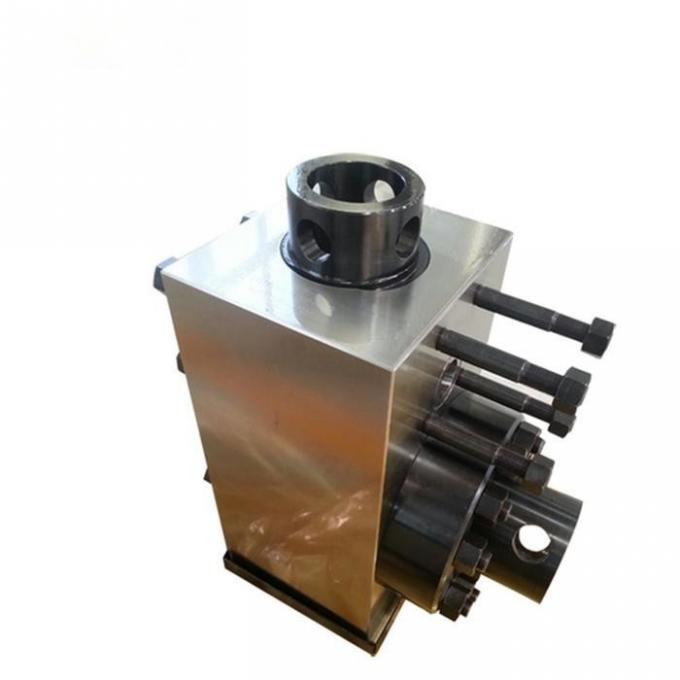

1291280 Module Discharge With Stud And Nut For 8P-80 Mud Pump Spares Parts
Topland's high-strength, triple reduction, forged steel triplex fluid end modules are made from 4135 alloy steel, heat treated for a long working life, machined to perfection and packaged for delivery with anti-corrosion protection.
Features: Completely interchangeable with OEM Premium forged alloy steel Made on CNC boring mills Strict computer controlled heat treat procedures Rigid inspection Rated for all drilling operations under 5000psi, 7500 psi, and 1000 psi pressure.

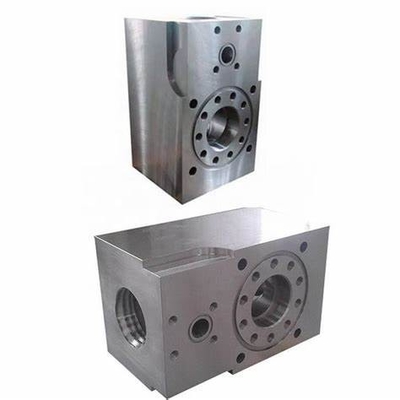

Hydraulic cylinder is also called the valve box, it is a major part to the fluid end parts. Blank forged by highstrength alloy steel. After heat treated, with multi-channel processes. The three cylinders of each pump is interchangeable. The following key parts: cone sawtooth thread of cylinder head, connect of the curve of all the screw hole and inner cavity.
| PARTNO. | DESCRIPTION | PARTNO. | DESCRIPTION |
| 1291280 | Discharge Module, Studded | 1291085 | Piston Rod Clamp |
| 1290338 | Suction Module, Studded | 1291090 | Crosshead,R.H.& Center |
| 1290174 | Seal Retainer | 1291165 | Liner Bushing |
| 1290175 | Back Up Ring | 1291166 | Liner Clamp |
| 1290178 | Wedge Adjusting Screw | 1291182 | Intermediate Rod Wiper Seal |
| 1290181 | Wedge Retaining Spring | 1291190 | Liner Spray Manifold |
| 1290307 | Valve Cover | 1291194 | Intermediate Rod Baffle |
| 1290308 | Threaded Ring | 1291276 | Sub Rod |
| 1290315 | Wedge Adjusting Screw Washer | 1291277 | Piston Rod |
| 1290342 | Discharge Connector | 1291286 | Discharge Spacer,Studded |
| 1290343 | Discharge Connector Adapter | 1292140 | alve Guide Holder |
| 1290344 | Suction Module & Wear Plate Seal | 1292141 | alve Guide Insert |
| 1290345 | Discharge Spacer Seal | 1540126 | Valve Cover Gasket |
| 1290357 | Wear Plate | 1590051 | Suction Manifold Seal |
| 1291015 | Crossheadi,R.H.& Center | 2410031-348 | Rectangular Packing |
| 1291017 | Crosshead Liner | 2410031-427 | Rectangular Packing |
| 1291028 | Crosshead Pin | 6908033 | Ring Joint Gasket |
We can also supply modules forged by alloy 35CrMo or 40CrMoMn. It is of high quality with secondary smelting, and with deoxygenates treatment. It is manufactured according to JB/TQ252-81 Specification and with high mechanical performance. Topland supplies a complete line of interchangeable fluid end modules and accessories for triplex mud pumps. Fluid ends and components are interchangeable to OEM’s such as National, Emsco, Gardner Denver, Bomco, Ideco,Weatherford, Drillmec, Texma, Mud King, Honghua, RG, RS, GPM, LS-NOW, Wirth and Oilwell.
