Product Details:
|
| Product Name: | CMS Series Casing Slip | Machine Type: | Wellhead Tools |
|---|---|---|---|
| Processing Type: | Casting | Material: | Iron |
| Usage: | Casing | Application: | Oil Field |
| Color: | Red/Yellow | Size: | 4-1/2"-30" |
| Capacity: | 125 Tons, 250Tons | Standard: | API 7K |
| Packing: | Standard Exported Package | ||
| High Light: | Topland Casting Wellhead Casing Slips,casing slips drilling API 7K,CMS-XL Wellhead Casing Slips |
||

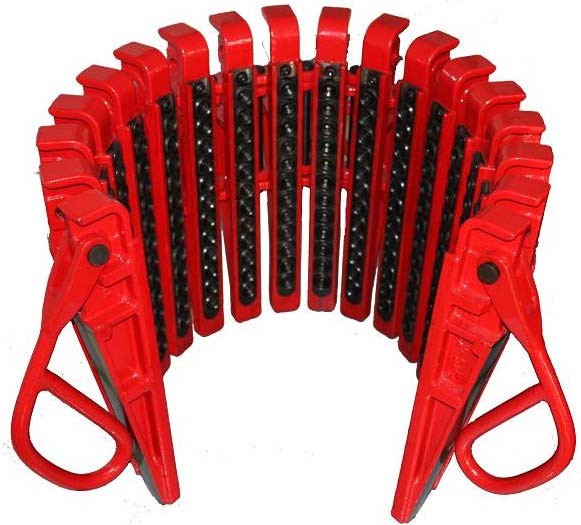

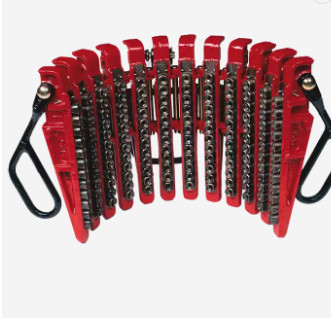

Drill Casing Slips Type CMS-XL Tubular Handling Tools API 7K For Drill Casing
Casing Slips description of Tubular Handing Tools

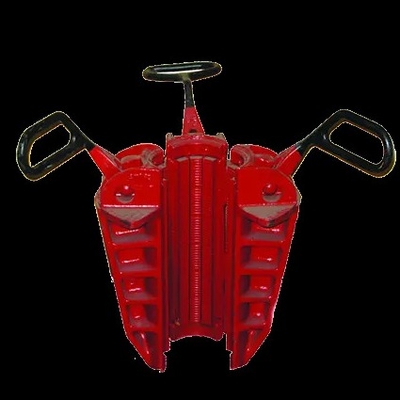

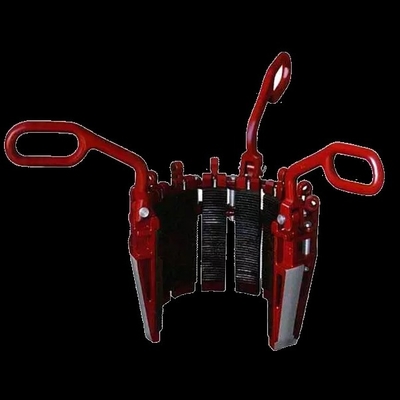

Slip consists of slip pieces, slip teeth and handles. The shape is a cone, which can be wedged into the inner hole of the turntable; The drill pipe slip is a three-piece structure connected by a hinge pin, and the drill collar slip and the casing slip are a four-piece structure connected by a hinge pin.
The CMS casing slips can accommodate casing from 4-1/2 to 30in(114.3 to 762mm).They are designed and manufactured in API 7K Slips for well drilling.It is manufactured in a structure of multi-segment pieces with firm structure, light weight , and large holding range, which is easy to fit the changing of the external diameter of the casing pipes due to wear and tear.
Casing Slips datasheets of Tubular Handing Tools
| Casing OD | In | 4 1/2 | 5 | 5 1/2 | 6 5/8 | 7 | 7 5/8 | 8 5/8 | 9 5/8 | 10 3/4 |
| mm | 114.3 | 127 | 139.7 | 168.275 | 177.8 | 193.675 | 219.075 | 244.475 | 273.05 | |
| 2628-108 | 2619-108 | 2630-108 | 2628-144 | 2619-144 | 2630-144 | 2630-156 | 2630-168 | 2630-180 | ||
| Circular Buttons P/N | ||||||||||
| 9 | 9 | 9 | 12 | 12 | 12 | 13 | 14 | 15 | ||
| Total number of segments | ||||||||||
| Kg | 81 | 81 | 80 | 89 | 84 | 75 | 82 | 87 | 95 | |
| Weight | Ib | 176 | 176 | 174 | 196 | 184 | 166 | 181 | 192 | 209 |
| Use in insert Bowl number | API or No.3 | No.2 | ||||||||
| OD | In | 11 3/4 | 13 3/8 | 16 | 18 5/8 | 20 | 24 | 26 | 30 |
| mm | 298.45 | 339.725 | 406.4 | 473.075 | 508 | 609.6 | 660.4 | 762 | |
| 2627-204 | 2630-216 | 2631-252 | 2626-300 | 2631-312 | 2631-360 | 2631-396 | 2631-444 | ||
| Circular Buttons P/N | |||||||||
| 17 | 18 | 21 | 25 | 26 | 30 | 33 | 37 | ||
| Total number of segments | |||||||||
| Kg | 118 | 112 | 140 | 167 | 174 | 201 | 220 | 248 | |
| Weight | Ib | 260 | 247 | 308 | 367 | 383 | 443 | 486 | 546 |
