Product Details:
|
| Type: | Dry Sand Suction Pump | Brand: | XBSY |
|---|---|---|---|
| Structure: | Gear Pump | Fuel: | Electric |
| Capacity: | 25-240m³/h | Speed: | 1440-1780 Rpm |
| Head: | 11-37 M | Power: | Electric, 4-75kw |
| High Light: | XBSY dry sand suction pump,1780 rpm Centrifugal Sand Pump,dry sand suction pump 1440 rpm |
||

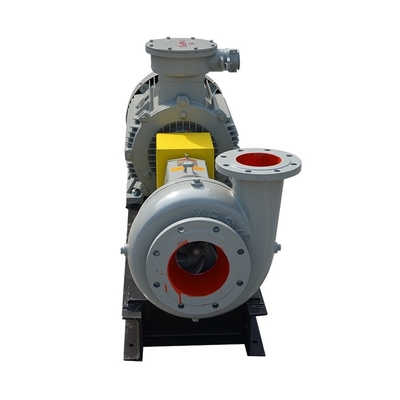

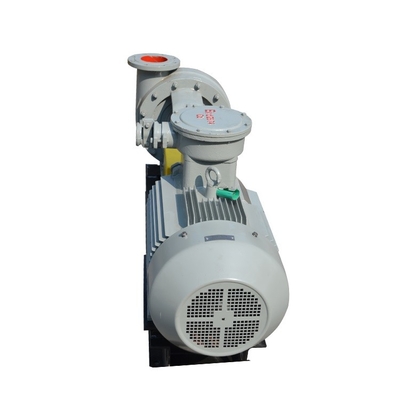

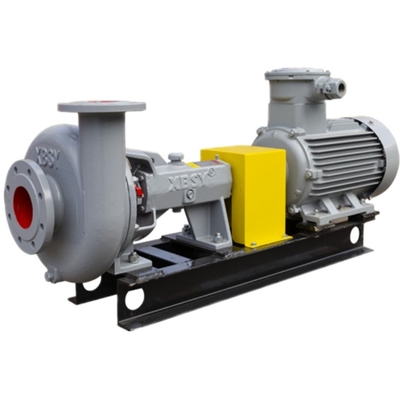

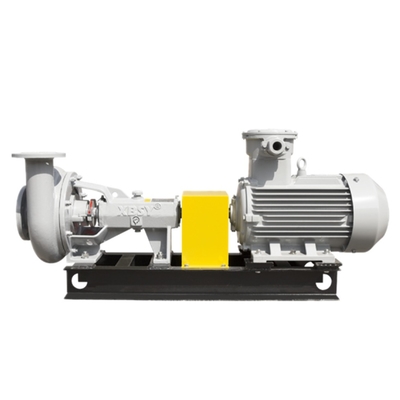

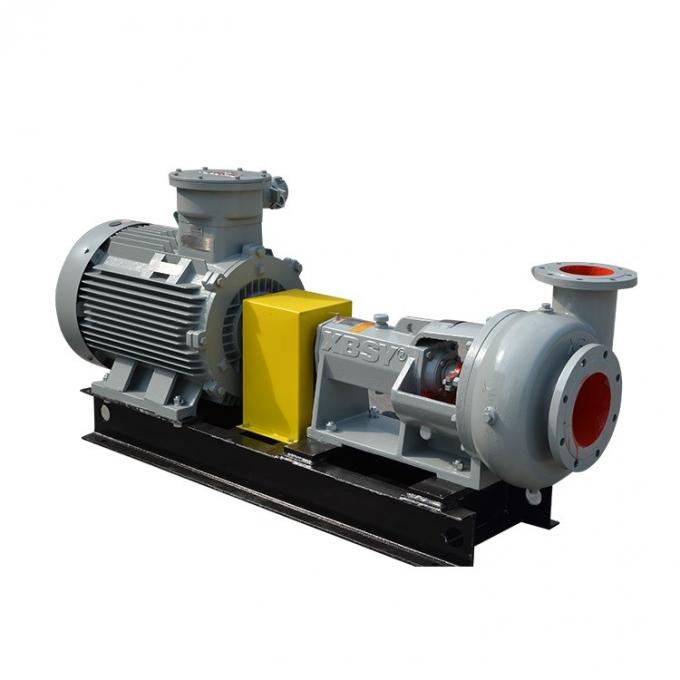

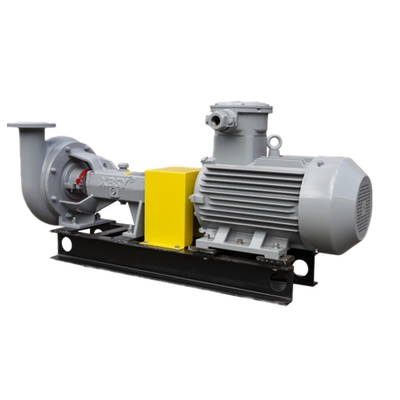

XBSY Dry Sand Suction Pump Solids Control Equipment Centrifugal Sand Pump
Dry Sand Suction Pump Description of Solids Control Equipment
SB serial sand pump are supplementary pumps, newly designed and manufactured according to features of petroleum and natural gas drilling equipment. The pumps are applicable to deliver corrosive drilling fluid (with suspended particulates) or other liquid media under similar work condition, and are optional pumps for desander, desliter and mix hoppers as well as perfect perfusion pumps of mud pumps. We have more than 80 models of SB6x8, SB5X6, SB4X5, SB3X4, and SB2X3 with motors ramying from 4KW to 75KW. The pumps have two structures of direct connection and belt connection which are suitable for power grids of 50Hz and 60Hz. They also have metric and british systems and clockwise and anticlockwise directions.
Solids Control Equipment Sand Pump Features:
1. No leakage
Use combined seal rely mainly on mechanical seal while packing subsidiary. The mechanical seal is designed by our company with patent ZL200720079857.2.
2. High efficiency
Impeller and case have a streamlined design.
Long service life
The flow parts are made of high wearable cast iron.
3. No jam
The impeller has wide flow pass.
4. Beautiful appearance
The structure, which has certificate of design patent, is compact and beautiful. (Patent NO.ZL200730094452.1)
Sand Pump Technical Parameter Solids Control Equipment
|
Type
|
Capacity(m³/h)
|
Head(m)
|
Speed(rpm) |
Efficiency(%)
|
Power(KW) |
Weight(kg)
|
Dimension L*W*H (mm)
|
||
| 50Hz | 60Hz | Brake power | Motor power | ||||||
| SB6X8J-13 | 240 | 37 | 1480 | 1780 | 67 | 36 | 75 | 1130 | 2052*698*1022 |
| SB6X8J-12 1/2 | 200 | 36 | 1480 | 1780 | 66 | 29.7 | 55 | 1000 | 1996*698*972 |
| SB6X8J-12 | 200 | 33 | 1480 | 1780 | 64 | 28 | 45 | 850 | 1916*638*917 |
| SB5X6J-12 1/2 | 200 | 33 | 1480 | 1780 | 64 | 28 | 45 | 785 | 1806*528*884 |
| SB5X6J-12 | 180 | 31 | 1480 | 1780 | 63 | 24.1 | 37 | 760 | 1781*528*864 |
| SB5X6J-11 1/2 | 160 | 28 | 1470 | 1780 | 62 | 19.7 | 30 | 650 | 1746*528*844 |
| SB5X6J-11 | 140 | 26 | 1470 | 1780 | 62 | 13.5 | 22 | 545 | 1686*516*764 |
| SB4X5J-10 1/2 | 150 | 22 | 1470 | 1780 | 61 | 17.4 | 30 | 580 | 1662*490*817 |
| SB4X5J-10 | 150 | 25 | 1470 | 1780 | 61 | 16.8 | 22 | 480 | 1602*453*720 |
| SB4X5J-9 | 93 | 20 | 1460 | 1760 | 58 | 8.8 | 15 | 400 | 1564*753*705 |
| SB3X4J-10 | 85 | 26 | 1460 | 1760 | 61 | 9.9 | 15 | 360 | 1405*443*682 |
| SB3X4J-9 1/2 | 80 | 23 | 1460 | 1760 | 61 | 8.2 | 11 | 340 | 1365*443*682 |
| SB3X4J-9 | 54 | 18 | 1440 | 1750 | 60 | 4.4 | 7.5 | 290 | 1245*443*650 |
| SB2X3J-10 | 55 | 22 | 1460 | 1760 | 60 | 5.5 | 11 | 320 | 1352*446*682 |
| SB2X3J-9 | 50 | 18 | 1440 | 1750 | 56 | 4.4 | 7.5 | 260 | 1232*446*650 |
| SB2X3J-8 | 40 | 16 | 1440 | 1750 | 54 | 3.2 | 5.5 | 245 | 1192*446*650 |
| SB2X3J-7 1/2 | 25 | 11 | 1440 | 1750 | 50 | 1.5 | 4 | 223 | 1161*446*600 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
