| TYPE: | 6 5/8 FH |
| GRADE: | S-135 IEU |
| LENGTH: | 9400 - 9500 MM |
| WEIGHT: | 27.7 IBS/FT |
| PIPE BODY Wall THICKNESS: | 0.362 inch |
| PIPE BODY ID: | 5.901 INCH |
| CONNECTION TYPE: | 6 5/8 FH API |
| TOOL JOINT OD/ID: | 8-1/2 ” / 4-1/4” |
| API Bore Back Box Connection , API Stress Relief Grooved Pin , Cold Rolled Thread Roots , Phosphate coated connections |
|
| TOOL JOINT PIN TONG SPACE: | 10” |
| TOOL JOINT BOX TONG SPACE: | 13” |
| Tortional Ratio: | 0.8 |
| Adjusted Weight: | 34.17 IBS/FT |
| TAPERED SHOULDER TOOL JOINT BOX: | 18 DEGREE |
| TAPERED SHOULDER TOOL JOINT PIN: | 35 DEGREE |
| HARD FACING: | Arnco-300XT / TCS Titanium |
| Internal Plastic Coating: | TK-34P / TC-2000 |
| INSPECTION CERTIFICATE: | DSI-CAT 5 BY THIRD PARTY |
| THREAD PROTECTOR: | PRESSED STEEL PROTECTOR 330 EA |

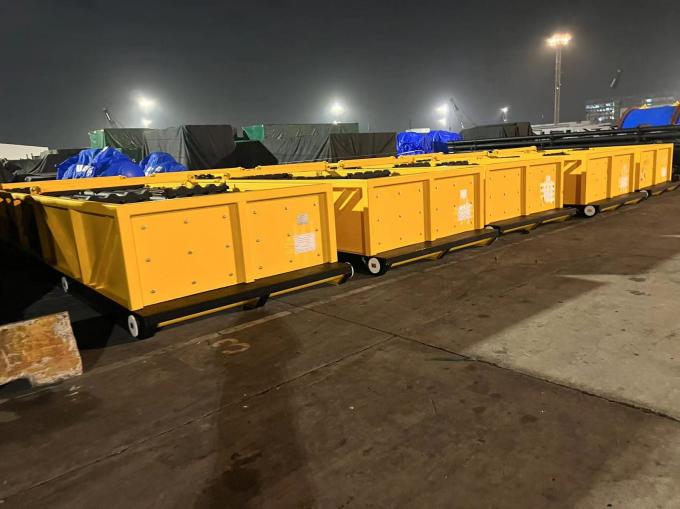

| Spacer Bar - Wooden or Elastomer Type for Drill Pipe placed in Pipe Basket for pipe | |

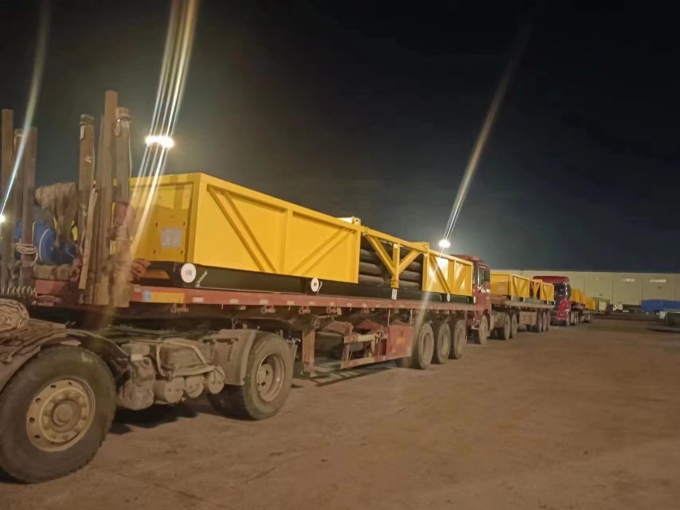

Topland finished the production of 6 5/8 FH DRILL PIPE recently and they have passed the strict quality inspection by our QC. Now they are ready for deliver to our abroad client.
