Product Details:
|
| Type: | ZQ Drill Pipe Power Tong | Processing Type: | Casting |
|---|---|---|---|
| Overall Dimensions: | 1760*1080*1360MM | Weight: | 2600kg |
| Max. Torque: | 92200ft.lbf | Air Pressure: | 0.5-0.9 Mpa |
| Max Torque In High Gear: | 125 KN.m | Shifting Distance: | 1500mm |
| Application: | Well Drilling | Material: | ZG35CrMo, ZG35CrMo |
| High Light: | ZQ203-125 drill pipe power tong,API 7K Tubular Handling Tool,Topland Hydraulic drill pipe power tong |
||

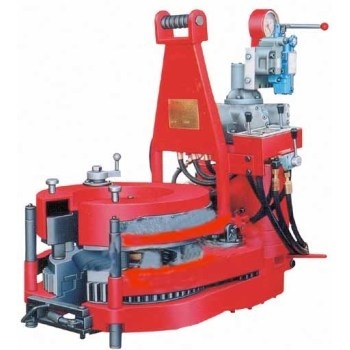

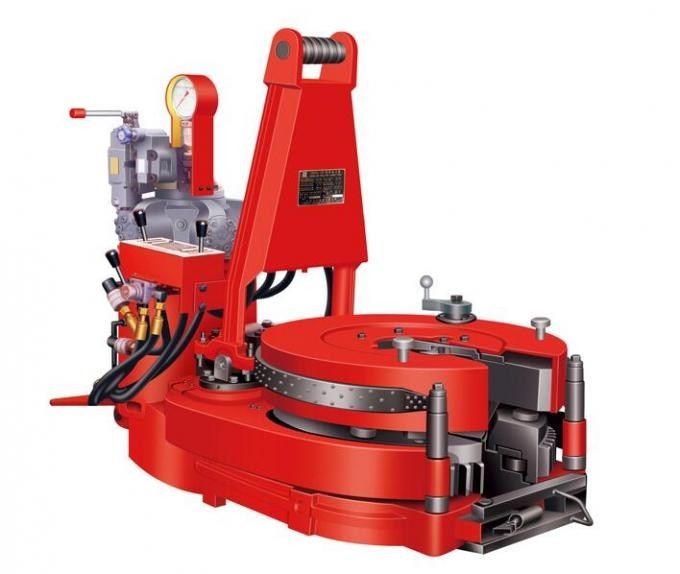

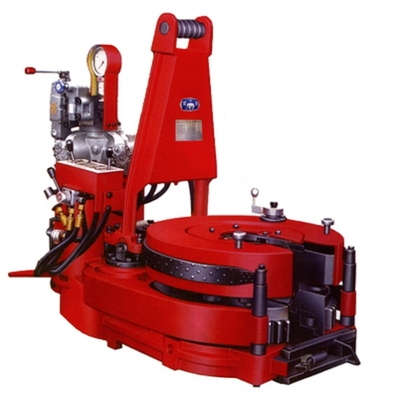

API 7K Tubular Handling Tools ZQ203-125 Series Hydraulic Drill Pipe Power Tongs
Power Tong description of Tubular Handing Tools:
Tubular Handing Tools ZQ drill pipe power tong is an ideal well head tool for oil drilling, widely applied for making-up and breaking-out in offshore and onshore drilling operations and workover operations. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.
Features of Tubular Handing Tools:
1. Using pneumatic power to shift and drive backup tong
2. It is a integral mechanism made by spin tong and torque tong
3. Changing gear allowed during operation
4. New or old drilling pipe joint could be clamped reliably
5. Both directions could run the maximum torque and rotation speed
| Model | ZQ127/25 | ZQ162/50 | ZQ203/100 | ZQ203/125 | ||
| Size Range Tubing | Drill pipe | mm | 65-127 | 85-162 | 114-203 | |
| in | 2 3/8~3 1/2 | 2 3/8~5 | 2 7/8~8 | |||
| Casing | mm | 65-127 | 114.3-153.7 | |||
| in | 2 3/8~3 1/2 | 4 1/2~5 1/2 | ||||
| Tubing | mm | 65-127 | 88.9-141.3 | |||
| in | 2 3/8~3 1/2 | 3 1/2~4 1/2 | ||||
| Max.Torque | kN.m | 25 | 50 | 100 | 125 | |
| ft.Ibf | 18440 | 36880 | 73750 | 92200 | ||
| Speed | rpm | 10.5-65 | 4.1-60 | 2.7-40 | 2.7-40 | |
| Air pressure | MPa | 0.5-0.9 | ||||
| psi | 72-130 | |||||
| Pressure rating | MPa | 12 | 16 | 16.6 | 20.7 | |
| psi | 1740 | 2320 | 2400 | 3000 | ||
| Flow rating | L/min | 120 | 114 | |||
| gpm | 31.7 | 30 | ||||
| Shifting distance | mm | 1000 | 1500 | |||
| in | 39.4 | 59 | ||||
| Size | mm |
1110x735x815 |
1570x800x1280 |
1760x1000x1360 | 1760x1080x1360 | |
| in | 44x31x32 | 62x31x50 | 69x39x53 | 69x40.5x53 | ||
| Weight | kg | 620 | 1500 | 2400 | 2650 | |
| lb | 1360 | 3310 | 5290 | 5840 | ||
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
