Product Details:
|
| Product Name: | Rotary Drill Pipe Slips | Machine Type: | Wellhead Tools |
|---|---|---|---|
| Processing Type: | Casting | Material: | Carbon Steel, Stainless Steel |
| Use: | Well Drilling, Pipe Clamp | Application: | Oil Field |
| Color: | Red/Yellow | Size: | 2-3/8"-5-1/2" |
| Standard: | API 7K | Packing: | Standard Exported Package |
| Weight: | 20kg | ||
| High Light: | SDXL Tubular Handling Tools,SDS Rotary drill pipe slips,Topland Tubular Handling Tools |
||

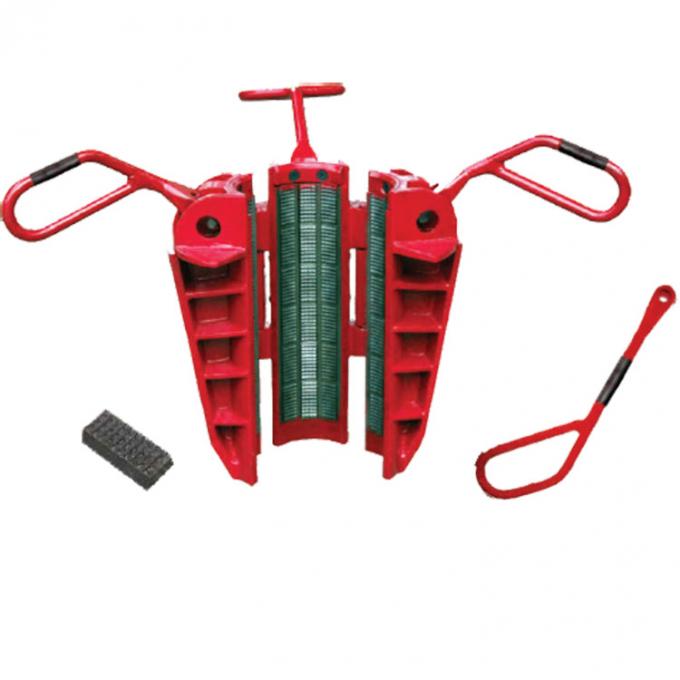

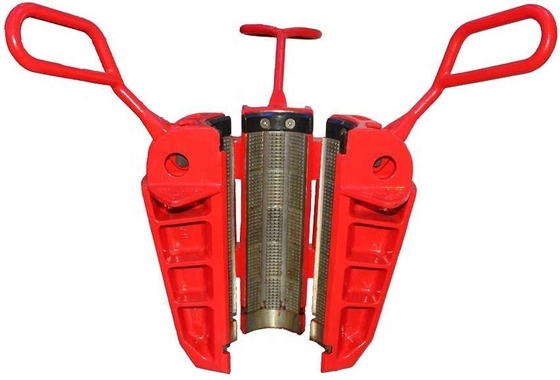

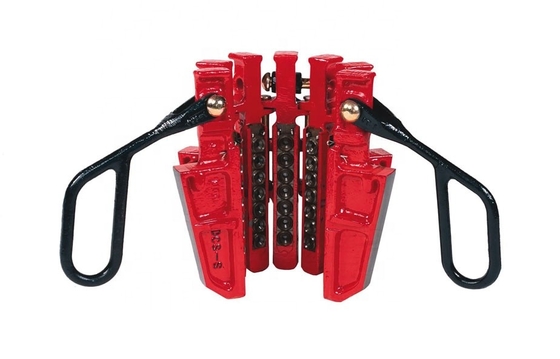

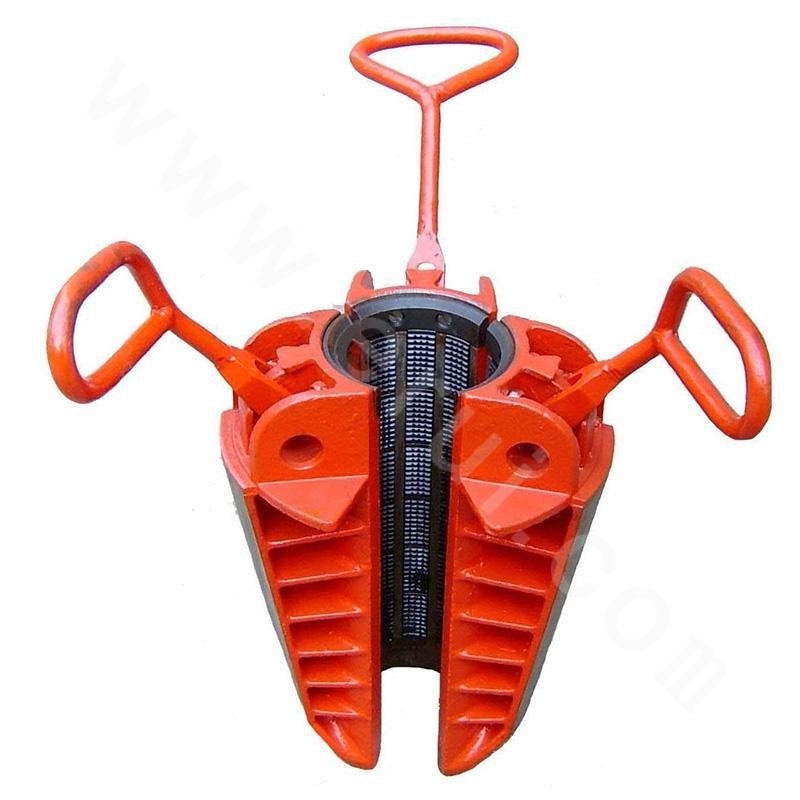

API 7K SDS SDML SDXL Rotary Drill Pipe Slips Tubular Handling Tools
Rotary Drill Pipe Slips Description of Tubular Handing Tools
Rotary slips can accommdate drill pipe from 2 3/8" to 5 1/2" (60.3mm to 139.7mm) OD. they are classified as type short(SDS), Medium(SDML) and Extra Long(SDXL) according to gripping length. SDS slips are designed for shallow hole drilling. SDML slips are the perfect choice for all medium depth drilling, SDXL slips are designed for deep drilling.The slips are designed and manufactured in API Spec 7K and SY/T 5049 Slips for well drilling. It is suitable to handle the drill rods during the oil well drilling operations for the exploration of petroleum and natural gases ,It is an essential tool for coupling and uncoupling.
| SDS | |||||||
| Slip Body Size(in) | 3 1/2" | 4 1/2" | |||||
| Pipe Size(in) | 2 3/8" | 2 7/8" | 3 1/2" | 3 1/2" | 4" | 4 1/2" | |
| P/N: Slip w/Flex Handles &Inserts | 3901 | 3903 | 3905 | 3907 | 3909 | 3911 | |
| Wt: Slip w/inserts. Ibs (KG) | 134(61) | 128(58) | 124(56) | 162(73) | 155(70) | 146(66) | |
| Insert Set: | P/N | 2160-24 | 2161-24 | 2162-24 | 2163-36 | 2164-36 | 2165-36 |
| Wt.Ibs (KG) | 21(9.5) | 16(7) | 10(4.5) | 32(14.5) | 25(11) | 16(7) | |
| Qty. | 24 | 24 | 24 | 36 | 36 | 36 | |
| SDML | |||||||||||||
| Slip Body Size(In) | 3 1/2" | 4 1/2" | 4 1/2" | 5 1/2" | |||||||||
| Pipe Size(In) | 2 3/8" | 2 7/8" | 3 1/2" | 3 1/2" | 4" | 4 1/2" | 4" | 4 1/2" | 5" | 4 1/2" | 5" | 5 1/2" | |
| P/N: Slip W/Flex Handles& Inserts | 15524 | 15523 | 15522 | 15563 | 15564 | 15565 | 15567 | 15568 | 15569 | 15571 | 15572 | 15573 | |
| Wt: Slip W/Inserts(Ibs.) | 193(87.5) | 188(85) | 180(81.5) | 207(94) | 199(90) | 188(85) | 204(92.5) | 196(89) | 185(84) | 200(91) | 192(87) | 181(82) | |
| Insert Set: | P/N | 2160-30 | 2161-30 | 2162-30 | 2163-45 | 2164-45 | 2165-45 | 2168-45 | 2166-45 | 2167-45 | 2168-45 | 2169-45 | 2170-45 |
| Wt. Ibs (KG) | 26(12) | 21(9.5) | 13(6) | 39(17.5) | 31(14) | 20(9) | 39(17.5) | 31(14) | 20(9) | 39(17.5) | 31(14) | 20(9) | |
| Qty. | 30 | 30 | 30 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | |
| SDXL | ||||||||||
| Slip Body Size(in) | 4 1/2" | 5" | 5 1/2" | |||||||
| Pipe Size(in) | 3 1/2" | 4" | 4 1/2" | 4" | 4 1/2" | 5" | 4 1/2" | 5" | 5 1/2" | |
| P/N: Slip w/Flex Handles&Inserts | 15515 | 15514 | 15513 | 15518 | 15517 | 15516 | 15521 | 15520 | 15519 | |
| WT: Slip w/ inserts. Ibs(KG) | 229(104) | 219(99) | 205(93) | 237(107.5) | 227(103) | 213(96.5) | 234(106) | 224(101.5) | 210(95) | |
| Insert Set: | P/N | 2163-54 | 2164-54 | 2165-54 | 2168-54 | 2166-54 | 2167-54 | 2168-54 | 2169-54 | 2170-54 |
| Wt.Ibs(KG) | 47(21) | 37(17)_ | 23(10.5) | 47(21) | 37(17)_ | 23(10.5) | 47(21) | 37(17)_ | 23(10.5) | |
| Qty. | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | |
