Product Details:
|
| Product Name: | Mud Pump Spare Parts Sealings | Material: | Rubber |
|---|---|---|---|
| Condition: | New | Application: | Drilling Mud Pump |
| Type: | O Ring, Oil SEAL Ring, Gasket | Color: | Black, Cutomerized |
| High Light: | O Ring Mud Pump Spare Parts,Black oil sealing ring,Rubber Mud Pump Spare Parts Topland |
||

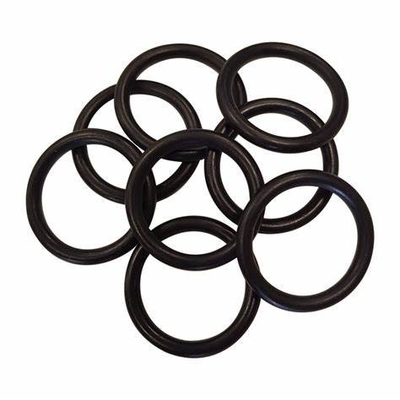

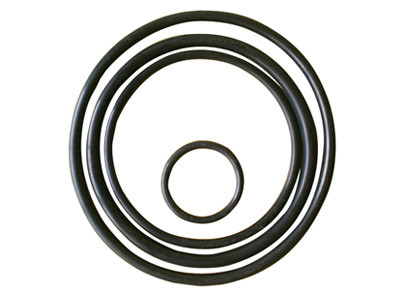

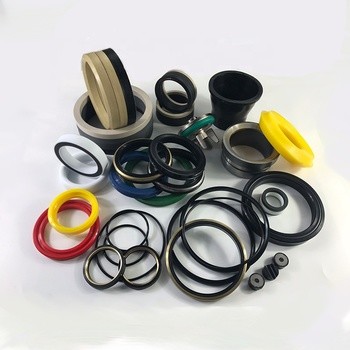

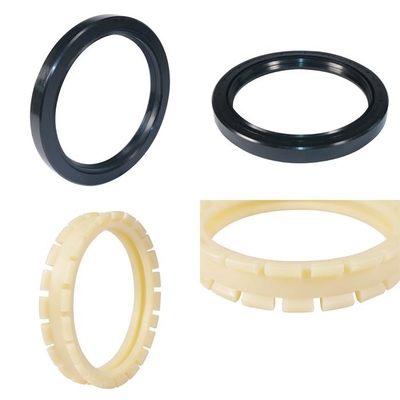

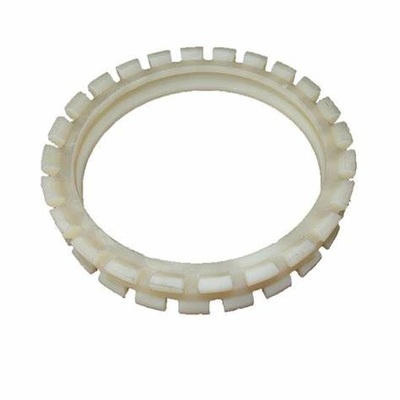

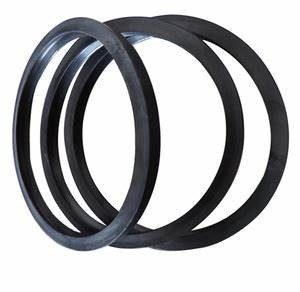

Mud Pump Spare Parts Sealings
Mud Pump Spare Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F2200, F2200HL, F-1300, F-1600, F1600HL, FB1300, FB1600, F-800, F-1000, F-500
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200
PZ7 Drilling mud pump spare parts
| PN. | DESCRIPTION | PN. | DESCRIPTION |
| 200PZG732 | SHIM (002) | 300PZJ715 | GASKET, VALVE COVER |
| 201PZG732 | SHIM (005) | 2007674 | BUSHING, SUCTION VALVE GUIDE |
| 202PZG732 | SHIM (007) | 2011860 | COVER-VALVE |
| 203PZG732 | SHIM (020) | 300PZG587 | LOCK-COVER |
| 12BA20 | BEARING-ROLLER, ECCENTRIC | 200PZG069 | MANIFOLD-SUCTION |
| 201PZG168 | PLATE-RETAINER, ECCENTRIC BEARING | 25BE41 | GASKET, SUCTION MANIFOLD TO CYLINDER |
| 655EG08D | SCREW, RETAINER TO ECCENTRIC | 655EG08N | SCREW, SUCTION MANIFOLD TO CYLINDER |
| 12BA18 | BEARING, CONNECTING ROD TO ECCENTRIC | 25C131N | GASKET, SUCTION MANIFOLD FLANGE |
| 74D18 | RING-RETAINING, CONNECTING ROD BEARING | 64CU11 | FLANGE, SUCTION - WELDNECK |
| 1PZ1400 | PLATE-RETAINING, BEARING TO ECCENTRIC | 655EG130 | SCREW, SUCTION FLANGE TO MANIFOLD |
| 655EF05D | SCREW, BEARING TO ECCENTRIC | 50B8 | NUT, SUCTION FLANGE TO MANIFOLD |
| 75B41 | SCREW, BEARING TO CONNECTING ROD | 200PZG071 | MANIFOLD-DISCHARGE |
| 12BA19 | BEARING-ROLLER, CROSSHEAD PIN | 25AL35 | GASKET, DISCHARGE MANIFOLD TO CYLINDER |
| 200PZG005 | CROSSHEAD | 209PZL110 | STUD, DISCHARGE MANIFOLD TO DISCHARGE FLANGE |
| 200PZG189 | PIN-CROSSHEAD | 50AW11 | NUT, DISCHARGE MANIFOLD TO DISCHARGE FLANGE |
| 202PZG168 | PLATE-RETAINER, CROSSHEAD PIN | 25V24 | GASKET, DISCHARGE MANIFOLD FLANGE |
| 655EG09D | SCREW, RETAINER PLATE TO CROSSHEAD | 64EB15 | FLANGE, DISCHARGE -WELDNECK |
| 75AG17 | SCREW, RETAINER PLATE TO CROSSHEAD PIN | 64EB240 | FLANGE, DISCHARGE, BLIND |
| 300PZG839 | ROD-EXTENSION | 2FXK840 | BAFFLE |
| PV701 | SCREW, ROD TO CROSSHEAD | 25BC69N | GASKET |
| 200PZG168 | PLATE-RETAINER, OIL STOP HEAD TO FRAME | 202PZL482A | FLUID VALVE ASSEMBLY |
| 2PO1398 | ADAPTOR, FOR ROTATING JACKSHAFT | 78H44 | SPRING, VALVE |
| 205PZL029 | CYLINDER-FLUID, 5000 PSI | 201PZL106 | INSERT, VALVE (POLYURETHANE) |
| 79L188 | STUD, CYLINDER TO FRAME (LONG) | 202PZL039 | SEAT-VALVE |
| 79AL6 | STUD, VALVE COVER RING TO CYLINDER | 50AW35 | LOCKNUT |
| 202PZL110 | STUD, CYLINDER TO DISCHARGE MANIFOLD | 201PZG060 | ROD-PISTON |
| 50B36 | NUT, CYLINDER TO FRAME STUD | 1PV14 | CLAMP, LINER |
| 50AQ30 | NUT, LINER CLAMP | 313PZL350 | PISTON, COMPOSITE (STD) 6" |
| 50B34 | NUT, VALVE COVER RING TO CYLINDER STUD | 321PZL350 | PISTON, COMPOSITE (STD) 5 1/2" |
| 50B34 | NUT, CYLINDER TO DISCHARGE MANIFOLD STUD | 321PZL350 | PISTON, COMPOSITE (STD) 4" |
| 2011861 | RING-RETAINER, VALVE COVER GASKET | PY13960 | LINER-FLUID 6" |
| 2011699 | RING-VALVE COVER | PY13955 | LINER-FLUID 5 1/2" |
| 300PZG456 | LINER-FLUID 4" |
