Product Details:
|
| Material: | NBR,HNBR | Condition: | New |
|---|---|---|---|
| Application: | Drilling Mud Pump | Useage: | Mud Pump Pulsation Dampener |
| Model: | K20,K70,KB45,KB75 | Product Name: | Pulsation Dampener Rubber Kit |
| High Light: | K70 pulsation dampener,Mud Pump Diaphragm K20 Rubber,KB45 pulsation dampener |
||

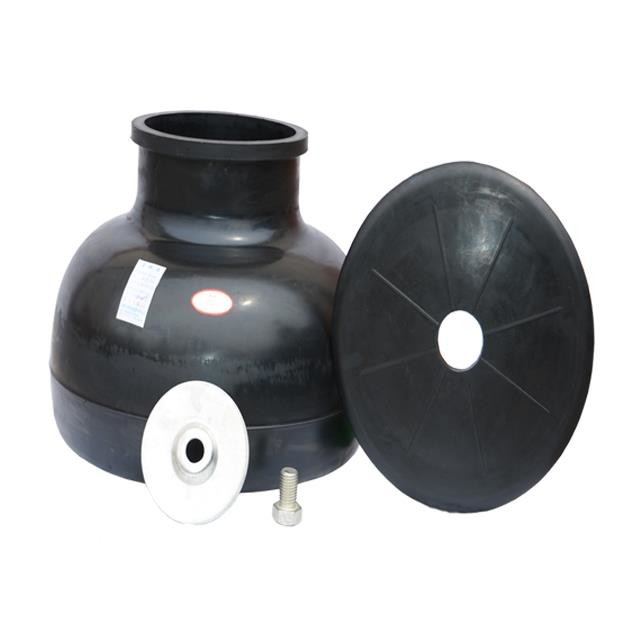

Mud Pump Spare Parts Diaphragm K20 Rubber KB45 K70 Pulsation Dampener Rubber Kit
Topland supplies a wide variety of mud pump , like liner, piston,valves and seats and so on.

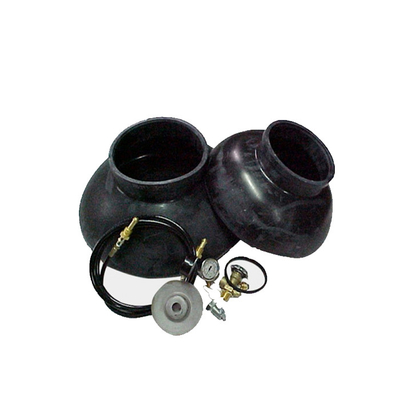

About the Pulsation Dampener Rubber Kit, we can supply as following:

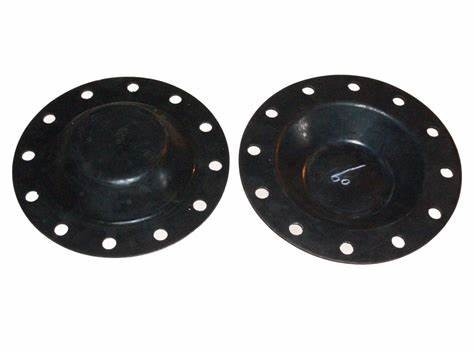

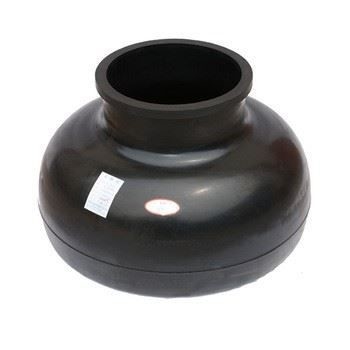

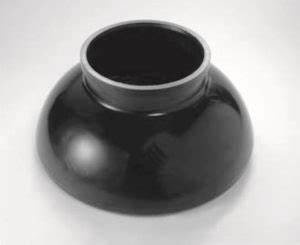

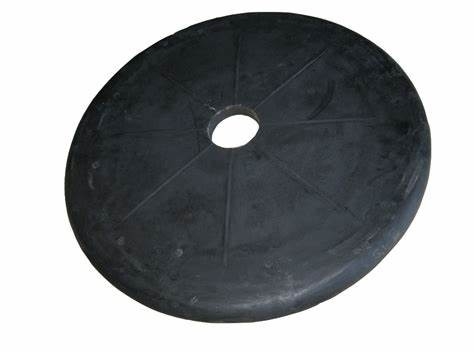

KB 45/KB75 Diaphragm ,Pulsation Dampener Rubber
Diaphragm PD45 ,PD75 Pulsation Dampener Rubber
K10/K20 Diaphragm ,Pulsation Dampener Rubber
M10/M20 Diaphragm ,Pulsation Dampener Rubber
| Model | Pulsation Dampener Rubber Kit | |||||
| KB45 | F500 | F800 | F1000 | HHF500 | HHF800 | HHF1000 |
| KB75 | F1300 | F1600 | HHF1300 | HHF1600 | ||
| PD45 | Emsco F500 | Emsco F800 | Emsco F1000 | |||
| PD55 | FB1300 | FB1600 | ||||
| K10 | 7P50 | 8P80 | 9P100 | |||
| K20 | 10P130 | 12P160 | ||||
| M10 | 7P50 | 8P80 | 9P100 | |||
| M20 | 10P130 | 12P160 | ||||
| KB25 | EWS440 | EWS446 | LWS440 | LWS446 | ||
| Bomco,Emsco,Hydril,Mattco100% interchangeable,500psi & 7500psi avaliable | ||||||
Our pulsation dampener and bladders have the following features:
1. Assembled and tested before using on mud pump.
2. Diaphragms are available in various materials to suit application requirement.
3. Single piece forged bodies provide stronger body and smoother inside surface.
4. Large top cover plate allows fast diaphragm replacement without removing the body from unit
5. API standard bottom connection flange with R39 ring-joint gasket.
6. Field replaceable bottom plates eliminate costly shop repairs and down time.
7. Heavy duty cover protects pressure gauge and charge valve from damage
Part of National 8P80 Mud Pump Part No.
| PARTNO. | DESCRIPTION | PARTNO. | DESCRIPTION |
| 1291280 | Discharge Module, Studded | 1291085 | Piston Rod Clamp |
| 1290338 | Suction Module, Studded | 1291090 | Crosshead,R.H.& Center |
| 1290174 | Seal Retainer | 1291165 | Liner Bushing |
| 1290175 | Back Up Ring | 1291166 | Liner Clamp |
| 1290178 | Wedge Adjusting Screw | 1291182 | Intermediate Rod Wiper Seal |
| 1290181 | Wedge Retaining Spring | 1291190 | Liner Spray Manifold |
| 1290307 | Valve Cover | 1291194 | Intermediate Rod Baffle |
| 1290308 | Threaded Ring | 1291276 | Sub Rod |
| 1290315 | Wedge Adjusting Screw Washer | 1291277 | Piston Rod |
| 1290342 | Discharge Connector | 1291286 | Discharge Spacer,Studded |
| 1290343 | Discharge Connector Adapter | 1292140 | alve Guide Holder |
| 1290344 | Suction Module & Wear Plate Seal | 1292141 | alve Guide Insert |
| 1290345 | Discharge Spacer Seal | 1540126 | Valve Cover Gasket |
| 1290357 | Wear Plate | 1590051 | Suction Manifold Seal |
| 1291015 | Crossheadi,R.H.& Center | 2410031-348 | Rectangular Packing |
| 1291017 | Crosshead Liner | 2410031-427 | Rectangular Packing |
| 1291028 | Crosshead Pin | 6908033 | Ring Joint Gasket |
