Product Details:
|
| Product Name: | Mud Pump Spare Parts 1316936 Piston Rod Clamp | Material: | Cast Steel |
|---|---|---|---|
| Condition: | New | Application: | Drilling Mud Pump |
| Useage: | Mud Pump Fluid End Parts | Type: | Clamp Assy |
| High Light: | MP10 Mud Pump Spare Parts,1316936 piston rod clamp,Mud Pump Spare Parts 1316936 |
||

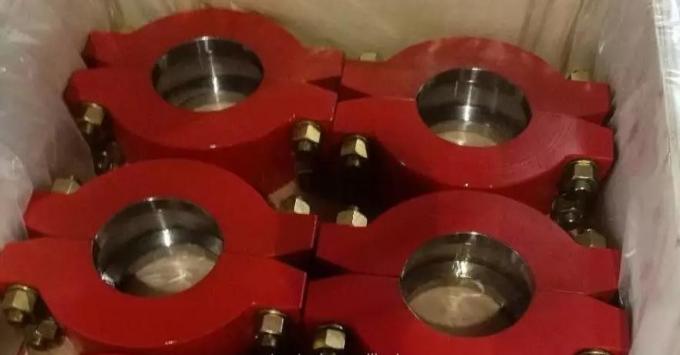

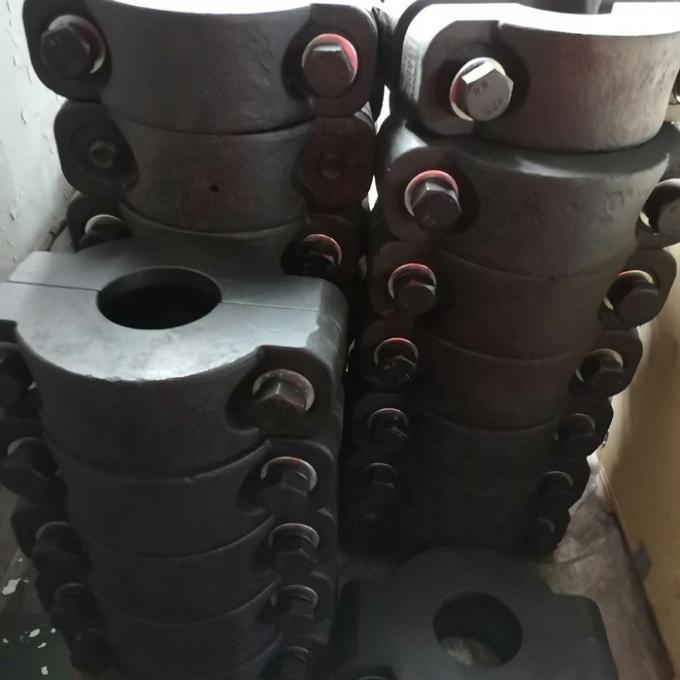

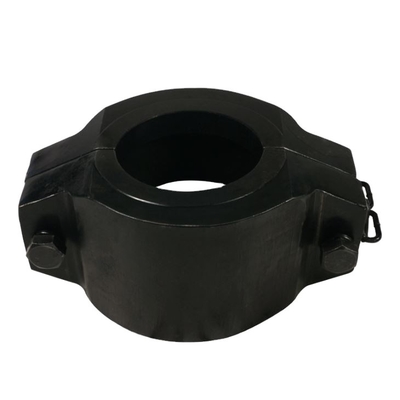

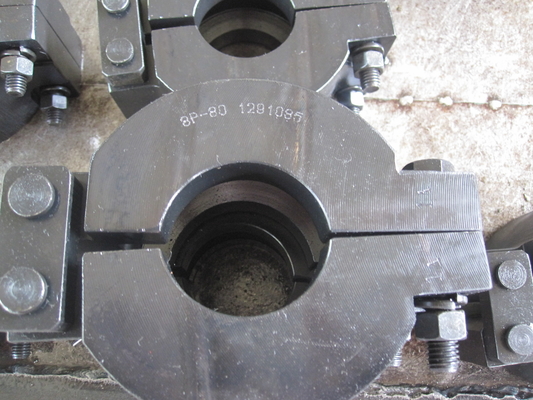

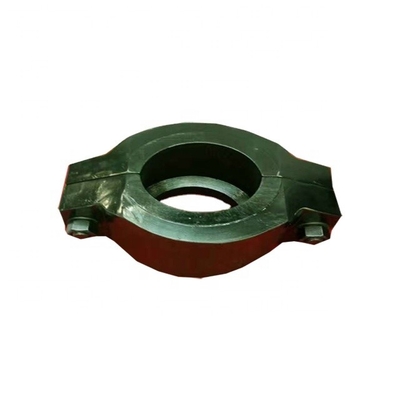

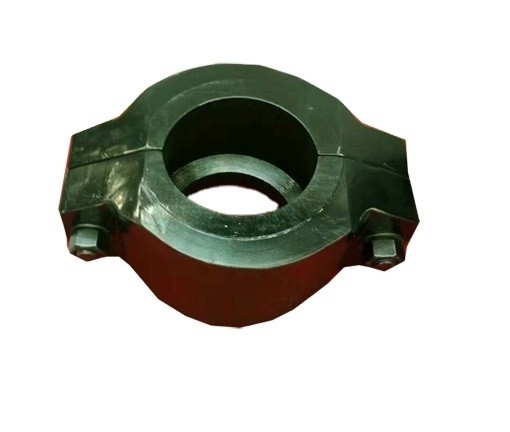

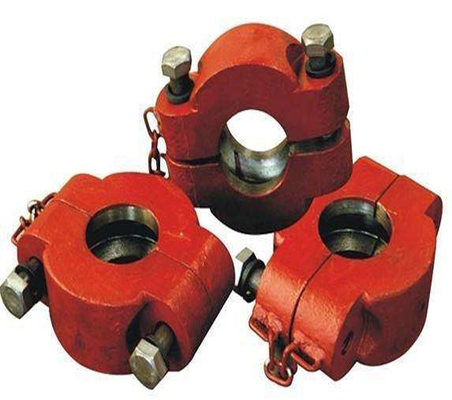

WEATHERFORD MP10 Mud Pump Spare Parts 1316936 Piston Rod Clamp
Topland supplies a wide variety of mud pump , like Bi-metal liner, Ceramic liner, mud pump piston, valves and seats, piston rod, extension rod, piston rod clamp, sealings and so on.
API Clamp For Mud Pump for sale is used for for circulating drilling fluid, its the heart of the drilling fluid circulation system components, mainly composed of by the power end and fluid end of two parts. Technical Features Power end: shell is for welded structure, high strength, light weight; transmission gear uses the whole involute herringbone Hardened teeth, smooth operation, high efficiency, long life; eccentric crank adopts casting hollow cast structure, light weight and large carrying capacity; using splash lubrication and forced lubrication together , lubrication reliable; ring, piston rod and other fastening nut use spira lock nut, its solid and reliable, and easy to disassemble.
WEATHERFORD MP10 Mud Pump Spare Parts List
| CROSSHEAD ASSEMBLY | MODULE ASSEMBLY | ||
| 908378 | ROD, CROSSHEAD EXTENSION | 1124947 | COVER, VALVE |
| 1280237 | BAFFLE | 1124954 | GUIDE, VALVE UPPER |
| 1124882 | GASKET, WIPER BOX | 1124984 | RETAINER, UPPER VALVE |
| 1124881 | BOX, WIPER | 1317792 | SEAL, VALVE COVER |
| 1317770 | SEAL, OIL DOUBLE LIP 4.5X5.5X0.50 | 1124935 | RING, THREADED |
| 1124885 | O-RING, WIPER BOX 140 X 7HNBR | 1317644 | SEAL, CYLINDER |
| 1123534 | SPRING, WIPER BOX | 1124948 | CAGE, LINER |
| 1124901 | RETAINING, RING | 1124938 | PLUG, CYLINDER HEAD |
| 1124906 | BOLT, EXTENSION ROD | 1124936 | HEAD, CYLINDER |
| 1280249 | CAPSCREW 3/8" - 16UNC X 1-1/2" | 1317030 | MODULE, STUDDED |
| PISTON ASSEMBLY | 1124955 | GUIDE, LOWER VALVE | |
| 1317936 | CLIP PIN, LOWER VALVE GUIDE | ||
| 1124994 | ROD, PISTON | 1317356 | LINER 6-1/2" |
| 1133856 | NUT, PISTON ROD (2700034) | VALVE ASSY | |
| 1316936 | CLAMP, PISTON ROD | 1318053 | VALVE ASSY. WITH INSERT FULL OPEN |
| 1149771 | BOLT, ROD CLAMP | 1317993 | INSERT, RUBBER FULL OPEN |
| 766945 | SEAL, PISTON HEAD | 1318028 | SPRING, VALVE CS |
| 1317585 | PISTON ASSY., COMPLETE 6-1/2" NITRILE | 1318008 | SEAT, VALVE FULL OPEN |
| 1317530 | RUBBER, PISTON REPLACEABLE 6-1/2" NITRILE | 13178756 | HEAD, PULLER |
