Product Details:
|
| Product Name: | Sucker Rod Elevator | Machine Type: | Drilling Tool |
|---|---|---|---|
| Processing Type: | Forging | Material: | Alloy Steel; Carbon Steel |
| Usage: | Wellhead Equipment | Application: | Oil Field |
| Color: | Red | Size: | 1/2"-1/12" |
| Rated Capacity: | 20/25T | Standard: | API 8A/8C |
| High Light: | Topland sucker rod elevator Drilling Tool,Carbon steel oilfield rod elevators,Alloy steel sucker rod elevator |
||

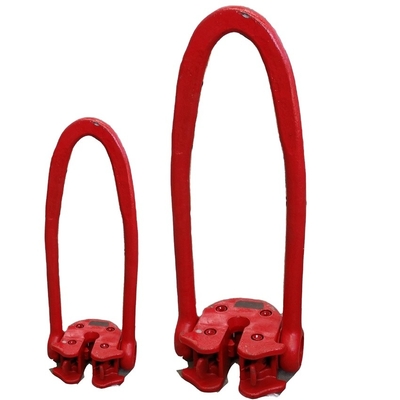

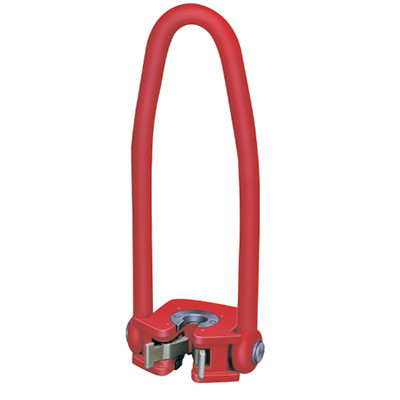

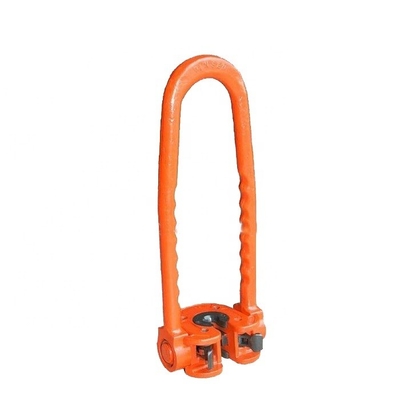

Tubular Handling Tools API 8C SRE20 to SRE25 Sucker Rod Elevator
Sucker Rod Elevator Description of Tubular Handling Tools

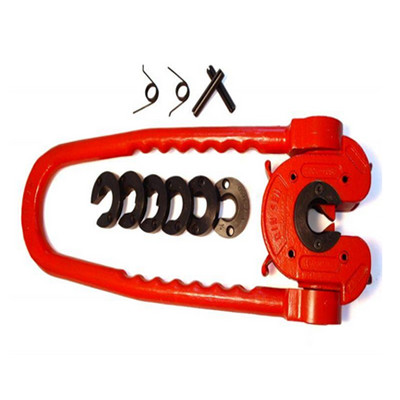

Sucker rod elevator is composed of elevator body and rod plates, which allow quick convert ion of the elevator body to various rod or pipe size. Additional saving is realized because work plates can be replaced instead of replacing the entire elevator. The basic elevator design provides excellent balance and non-tilt performance. Large access to the front and rear release levers assures easy, safe latching and unlatching. They are designed and manufactured according to API Spec 8C PSL1-specification for drilling and production Hoisting Equipment.
Tubular Handling Tools Sucker Rod Elevator Feature:
1. Model: SRE20, SRE25
2. sucker rod elevators are hoisting tools for handling sucker rods
3. rated capacity:20tons, 25tons
4. applicable diameter of tubulars: 1/2~11/2 inch
5. Standard: API 8A/8C
Sucker Rod Elevator Technical Parameter of Tubular Handling Tools
| Rod size | Dia of Bore | Max load | Weight |
| (mm) | (kN) | (kg) | |
| 1/2-5/8 | 19 | 200 | 12 |
| 5/8 - 3/4 | 23 | ||
| 3/4 - 7/8 | 26 | ||
| 1 | 30 | ||
| 1.1/8 | 32 | ||
| 1.1/4 | 35 | ||
| 5/8 - 3/4 | 23 | 25 | 17 |
| 3/4 - 7/8 | 26 | ||
| 2007/8/1 | 30 |
| Specification | Rating Load KN(t) | Specification of Suck Rod(in) |
| SRE20 | 20Tons (180KN) | 1/2”-5/8”,5/8”-3/4”,3/4”-7/8”,1”,1-1/8”,1-1/4”,1-1/2” |
| SRE25 | 25Tons (225KN) | 5/8”-3/4”,3/4”-7/8”,1” |
