Product Details:
|
| Product Name: | RTTS Packer | Weight: | 17-38 |
|---|---|---|---|
| Material: | Alloy Steel, 4140 | Suitable Casing: | 5-1/2,7,9-5/8 |
| Min OD: | 44-62 | Max OD: | 115-152 |
| Working Pressure: | 25 Mpa | Connection Threads: | 2-7/8EUE |
| High Light: | Mechanical Retrievable Packer,Alloy steel RTTS Packer,Topland Retrievable Packer |
||
Mechanical Retrievable Packer RTTS Packer Oilfield Cementing Tools Cementing Operations
Packer Description of Oilfield Cementing Tools

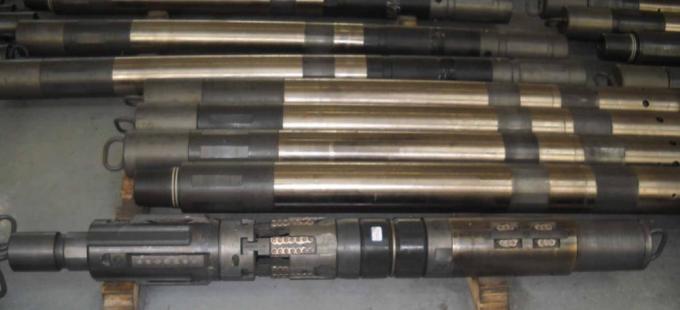

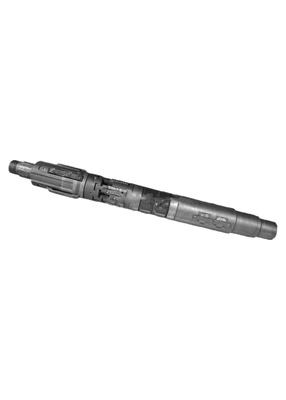

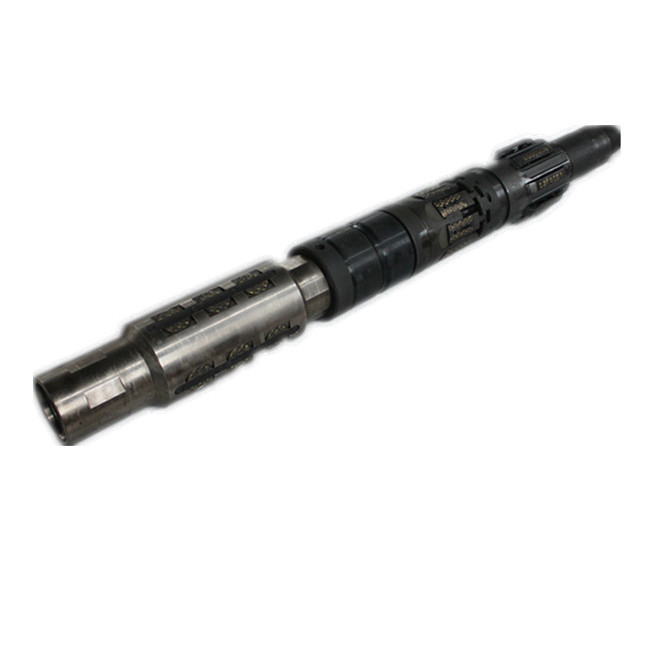

RTTS Packer is a large-diameter mounted type packer that can seal bi-directional pressure, which was designed for formation testing, acidizing fracturing, plug cementing and other down-hole operations. The large diameter can pump over large volumes of fluid under small pressure drop and make it pass the through-tubing perforating gun. RTTS packer can thus be used for multiple operations during one trip in the hole. Generally, RTTS Packer is used with RTTS Circulating Valve. It may also include a safety joint.
Structure features

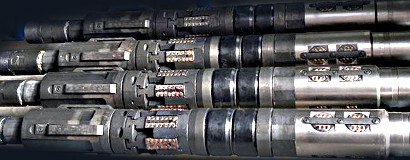

Each specification of RTTS packer includes a J-slot mechanism, mechanical slip, packing element and hydraulic anchor mechanism. The hydraulic anchor mechanism can help prevent the packer from being pumped up the hole when too much pressure in the bottom of the packer. In addition, all packers are assembled with friction blocks and automatic J-slot sleeves.
| Casing | Packer | |||
| OD(inch) | ID (mm) | Max OD(mm) | Min ID(mm) | Thread Connection |
| 5.5 | 118.62~121.36 | 111.3 | 44.0 | 2-7/8 EU |
| 121.36~124.30 | 115.3 | 46.0 | 2-7/8 EU | |
| 7.0 | 150.37~154.79 | 144.0 | 60.2 | 2-7/8 EU |
| 154.79~157.07 | 146.1 | 60.2 | 2-7/8 EU | |
| 157.07~159.41 | 148.1 | 60.2 | 2-7/8 EU | |
| 159.41~166.07 | 152.4 | 60.2 | 2-7/8 EU | |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
