Product Details:
|
| Type: | Kelly Drill Pipe Spinner | Power: | Pneumatic / Hydraulic |
|---|---|---|---|
| Color: | Yellow,red | Usage: | Oilfield Drilling Equipment |
| Video Outgoing-inspection: | Provided | Machine Type: | Tubular Handling Tools |
| High Light: | Kelly Drill Pipe Spinner Topland,API 8C Oillfield Equipment,Pneumatic Drill Pipe Spinner |
||
Drill Pipe Spinner Kelly Drill Pipe Spinner Tubular Handling Tool API 8C Oillfield Equipment

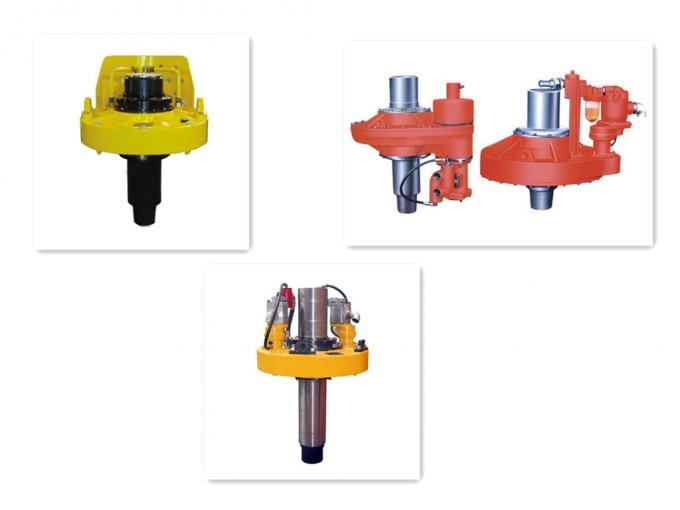

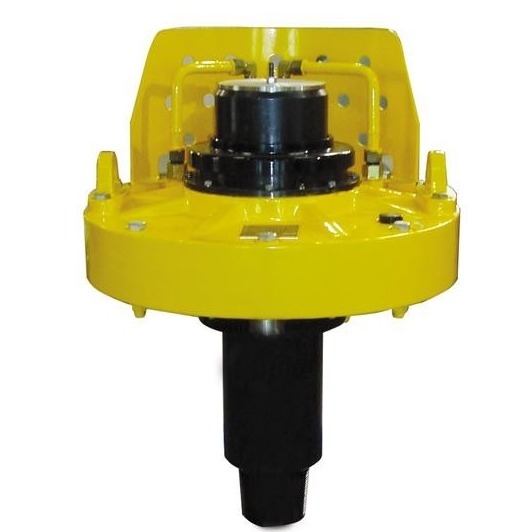

Kelly Spinner description of Tubular Handing Tools:
Kelly spinner is a special equipment to connect single pipe by matching with mouse hole clamping device. It unitizes air or hydraulic motor to drive kelly to rotate, And is has the features of security, time- saving time and high efficiency. It is designed and manufactured according to API Spec 8C “Specification For Drilling and Production Hoisting Equipment”
1.A6C Kelly Spinner is used to connect single pipe by matching with mouse hole clamping device and designed according to API 8A.

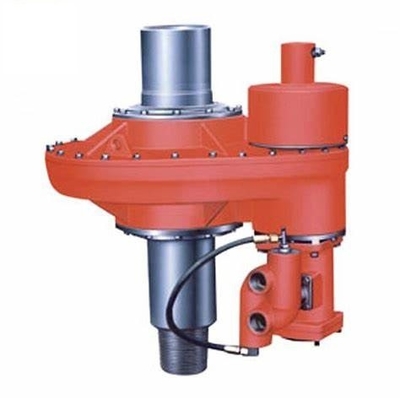

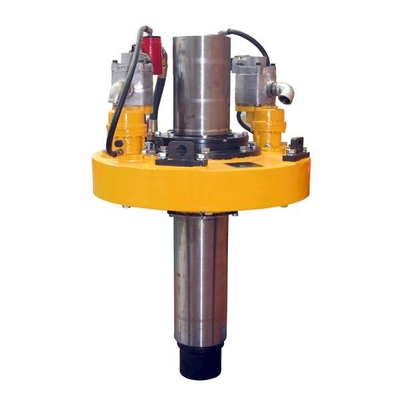

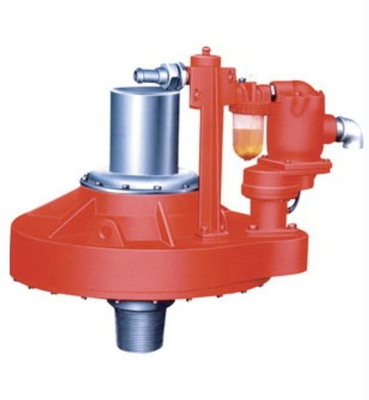

2.KS is designed and manufactured under Varco 6600 (Pneumatic Kelly Spinner) and 6800 (Hydraulic Kelly Spinner) designs,
which is used for rotating drill pipe slowly, for limited rathole and mousehole drilling, and for making fast Kelly connections. This unit is completely reversible, the driller can spin out, as well as spin in, and when making connections, therefore, spinning chains are not required any more.
Tubular Handing Tools Kelly Spinner Datasheet:
| Model | FXD | QF2 | Q3 | A6C | 6600 | 6800 | ||||
| Drive mode | Pneumatic Driven | Hydraulic Driven | ||||||||
| Max. static load | 2250kN | 2250kN | ||||||||
| Pressure | MPa | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 | 13.8 | |||||
| Psi | 72-130 | 72-130 | 72-130 | 2000 | ||||||
| Brake torque | Nm | 1200 | 1600 | 1650 | 1500 | 1500 | 1650 | |||
| ft.ibf | 885 | 1180 | 1215 | 1100 | 1100 | 1215 | ||||
| Idle speed | rpm | 76 | 72 | 72 | 170 | 130 | 110 | |||
| Rotating direction | Single | Double | Double | Double | ||||||
| consumption/flow | m3/min | 9.3 | 20 | 20 | 9.3 m3/min | 15 m3/min | 91 LPM | |||
| ft3/min | 328 | 706 | 706 | 328 ft3/min | 529 ft3/min | 24 GPM | ||||
| Stem connection | 6-5/8 REG LH | 6-5/8 REG LH | ||||||||
| Size | mm | 845*740*725 | 558*558*935 | 860*725*980 | 768*768*1225 | 740*710*978 | 740*710*978 | |||
| in | 33*29*28 | 22*22*37 | 34*28*39 | 30*30*48 | 29*28*38.5 | 29*28*38.5 | ||||
| Weight | Kg | 383 | 450 | 520 | 540 | 500 | 504 | |||
| lb | 844 | 992 | 1146 | 1190 | 1100 | 1110 | ||||
