Product Details:
|
| Type: | Mud Pump Spare Parts | Standard: | API |
|---|---|---|---|
| Condition: | New | Core Components: | Valve Assembly |
| Material: | Alloy Steel | Model: | F Series, P Series, NB Series, Bomco Etc. |
| Keywords: | Valve Assembly | Usage: | Mud Pump |
| High Light: | Drilling Mud Pump Valve Seat,API Valve Body Assembly,Alloy Steel Mud Pump Valve Seat |
||
API Valve Assembly Drilling Mud Pump Spare Parts Valve Body Valve Seats
Valve Assembly Description of Mud Pump Spare Parts

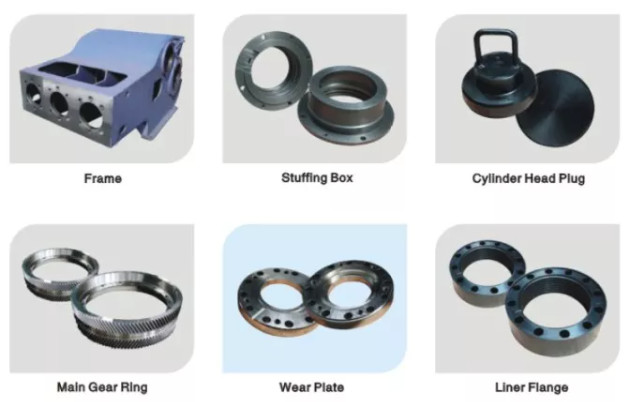

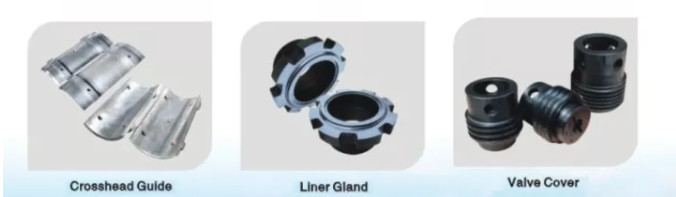

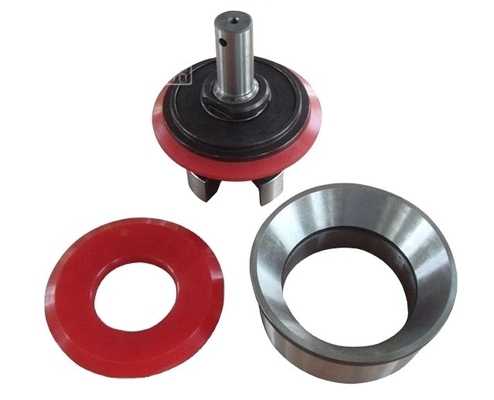

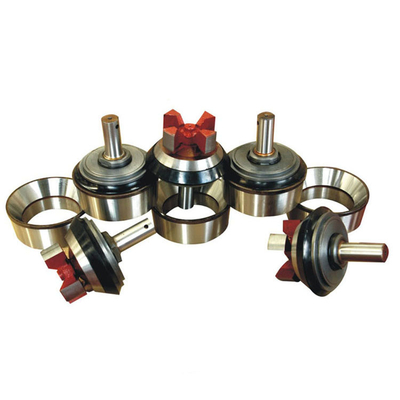

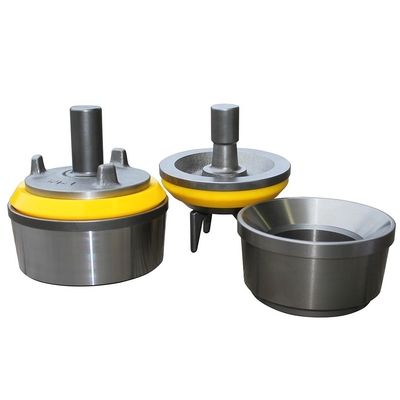

The valve body assembly consists of: valve body, valve rubber, valve nut, guide frame, gland, circlip, steel ball, etc. The working frequency is high and the impact is large. Its quality directly affects the service life of the hydraulic cylinder. It is the
main accessory in the hydraulic end system of the drilling mud pump, and it is also one of the wearing parts used in drilling work.HL petroleum can produce various specifications of valve bodies and valve seats for F series (F-800, F- 1000, F-1300, F-1600), 3NB (3NB-1000, 3NB- 1300, 3NB-1600) series and other series drilling pumps, high strength, high toughness.
Mud Pump Spare Parts Valve Assembly Technical Parameter
| Item | F500 | F800 | F1000 | F1300 | F1600 |
| Power Rating HP(kw) | 500 (373) | 800 (597) | 1000 (746) | 1300 (969) | 1600 (1193) |
| Stroke RatingSPM | 165 | 150 | 140 | 120 | 120 |
| Stroke Length(in /mm) | 7.5" /190.5 | 9"/228.6 | 10"/254 | 12"/305 | 12"/305 |
| Gear Ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 |
| Inlet Dia. (in/mm) | 8"/203 | 10"/254 | 12"/305 | 12"/305 | 12"/305 |
| Outlet Dia. (in) | 4" Flange 5000psi |
5-1/8" Flange 5000psi | 5-1/8" Flange 5000psi |
5-1/8" Flange 5000psi |
5-1/8" Flange 5000psi |
| Valve | API5# | API6# | API6# | API7# | API7# |
| Max. Liner (in/mm) | 6-3/4"/170 | 6-3/4"/170 | 6-3/4"/170 | 7"/180 | 7"/180 |
| Overall Dimension L*W*H(mm) | 3658*2709*2231 | 3963*3025*2410 | 4267*3167*2580 | 4617*3260*2600 | 4615*3276 *2688 |
| Approx. Weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 |
| Stroke per Minute |
Liner size (mm) and Pressure Rating(Mpa/psi) | |||||||
| φ170 | φ160 | φ150 | φ140 | φ130 | φ120 | φ110 | φ100 | |
| 9.4 | 10.6 | 12.1 | 13.9 | 16.1 | 18.9 | 22.5 | 27.2 | |
| 1365 | 1540 | 1750 | 2010 | 2335 | 2740 | 3260 | 3945 | |
| Displacement (L/S)(gpm) | ||||||||
| 165 | 35.67 | 31.6 | 27.77 | 24.19 | 20.86 | 17.77 | 14.93 | 12.34 |
| 565 | 501 | 440 | 383 | 330 | 281 | 236 | 195 | |
| 150 | 32.43 | 28.73 | 25.25 | 21.99 | 18.96 | 16.16 | 13.58 | 11.22 |
| 514 | 455 | 400 | 348 | 300 | 256 | 215 | 178 | |
| 140 | 30.27 | 26.81 | 23.56 | 20.53 | 17.7 | 15.08 | 12.67 | 10.47 |
| 480 | 425 | 373 | 325 | 280 | 239 | 201 | 166 | |
| 130 | 28.11 | 24.9 | 21.88 | 19.06 | 16.44 | 14 | 11.77 | 9.73 |
| 445 | 394 | 347 | 302 | 260 | 222 | 186 | 154 | |
| 120 | 25.94 | 22.98 | 20.2 | 17.6 | 15.17 | 12.93 | 10.86 | 8.98 |
| 411 | 364 | 320 | 279 | 240 | 205 | 172 | 142 | |
| 110 | 23.78 | 21.07 | 18.52 | 16.13 | 13.91 | 11.85 | 9.96 | 8.23 |
| 377 | 334 | 293 | 255 | 220 | 188 | 158 | 130 | |
| Based on 100% volumetric efficiency and 90% mechanical efficiency | ||||||||
| Item No. | Drawing Name | Drawing NoTPart No. |
| 1 | F-1300 General Assembly Drawing | AH13010200 |
| 2 | F-1600 General Assembly Drawing | AH16010200 |
| 3 | F-1300 Crankshaft Assembly | AH1301020200 |
| 4 | F-1600 Crankshaft Assembly | AH1601020100 |
| 5 | F-1300 Pinion Shaft Assembly | AH1301020300 |
| 6 | F-1600 Pinion Shaft Assembly | AH1601020200 |
| 7 | F-1300/1600 Crosshead Assembly | AH1301020400 |
| 8 | F-1300/1600 Fluid End Assembly | AH1301020500 |
| 9 | F-1300/1600 Power End Lubrication Assembly | AH1301020600 |
| 10 | F-1300/1600 Spray Pump Assembly | AH1301020800 |
| 11 | F-1300/1600 Suction Desurger | AH0000050100 |
| 12 | F-1300/1600 Discharge Filter Assembly | |
| 13 | KB-75 Pulsation Dampener | AK75350200 |
| 14 | Pulsation Dampener Pneumatic Hose Assembly | AH100102130100 |
| 15 | JA-3 Shear Safety Wive | AH0000060200 |
| 16 | F-1300/1600 Attachment Spare Parts | |
| 17 | F1300/1600 Attachment Tool |
