Drilling Rig Mud Pump Spare Parts Packing Stuffing Box Assembly

Drilling Rig Mud Pump Spare Parts Packing Box Stuffing Box Assembly

Stuffing Box descaiption of Mud Pump Spare Parts

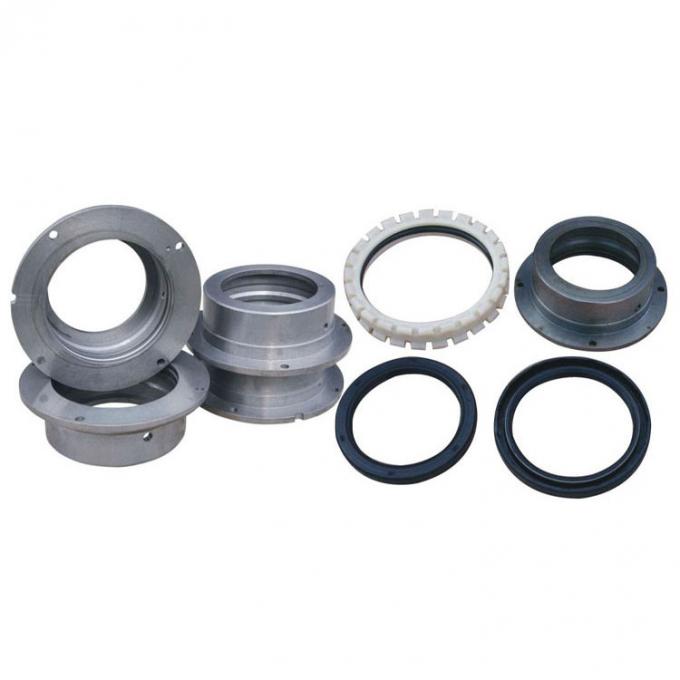

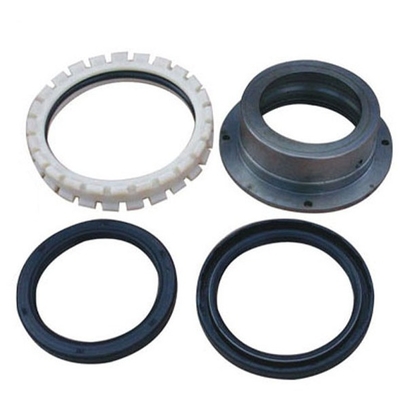

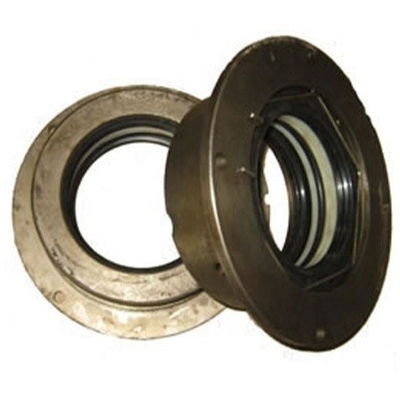

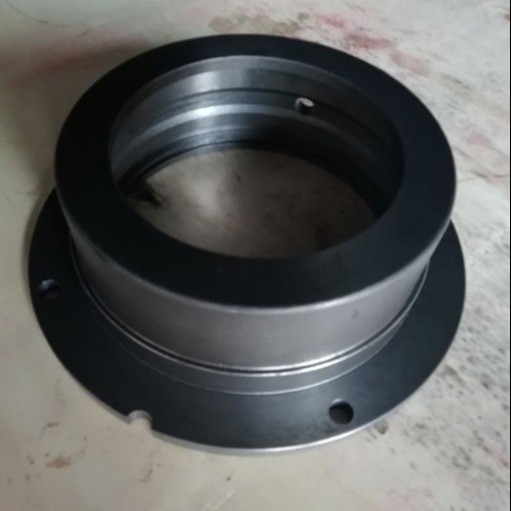

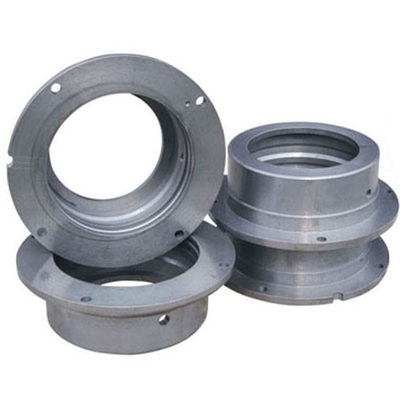

Stuffing box is located at the top of the middle tie rod of the drilling mud pump. It is made of gray iron and is connected to the cylinder liner. It plays the role of isolating the power end and the hydraulic end. The middle tie rod performs reciprocating linear motion in its inner hole. on the shelf. The inner cavity of the stuffing box is equipped with oil seal rings, O-rings, skeleton oil seals and other seals, which together form the stuffing box assembly.

Other Spare Parts of Mud Pump Spare Parts



Pinion Shaft Assembly, including Pinion Shaft, Oil Seal Wear Ring, End Cover, Gasket, Bearing Sleeve, oil Gathering Box, Oil Seal, Bearing, Flange, Bolt.



Hydraulic End Assemble: including Hydraulic cylinder assembly, Valve assembly, Cylinder liner, Piston, Piston rod, Cylinder head,Valve cover, Cylinder head flange,Cylinder liner flange, Cylinder liner gland, Cylinder head sealing ring, Cylinder liner seal,Valve cover sealing ring.



Discharge Pipeline Assembly: discharge manifold,The filter assembly, discharge air dampener assembly, double scale pressure gauge,Bend Stone.



Crank Shaft Assembly: crankshaft, Big gear ring, Main bearing set (left), Main bearing bolt, Eccentric Bearing, Main Bearing, spacer ,Retainer ring.



Fluid end: Liner, Piston, Piston rubber, valve body, seals, valve rubber,liner seals, cylinder head gasket, valve cover seals, piston rod, clamp assembly, valve cover, cylinder head, flange head, cylinder flange, cylinder cover, inhalation capsules, etc.



Crossing Head Assembly: Extension rod, crosshead , crosshead pin, cross pin baffle, upper and lower guide plate, packing boxes, seal ring, double lip oil seal.



Dampener: Dampener diaphragm, pressure gauges,fitting, tees, Angle type valve,relief valve, exhaust valve.



FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-4. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
