Product Details:
|
| Prodcut Name: | Crankshaft Assembly | Main Bearing Sleeve (right): | AH37001-01.02 |
|---|---|---|---|
| Main Bearing Sleeve (left): | AH37001-01.06 | Eccentric Wheel Bearing: | AH37001-01.08.00 |
| Locking Steel Wire F1.5: | GB343-82 | Core Components: | Gear |
| Material: | Alloy Steel | Application: | Drilling Mud Pump |
| High Light: | Triplex Crankshaft Assembly,Triplex Crankshaft Drilling Rig,API Drilling Crankshaft Assembly |
||
Drilling Rig Triplex Mud Pump Spare Parts Crankshaft Assembly API Standard
Crankshaft Assembly Features of Mud Pump Spare Parts:

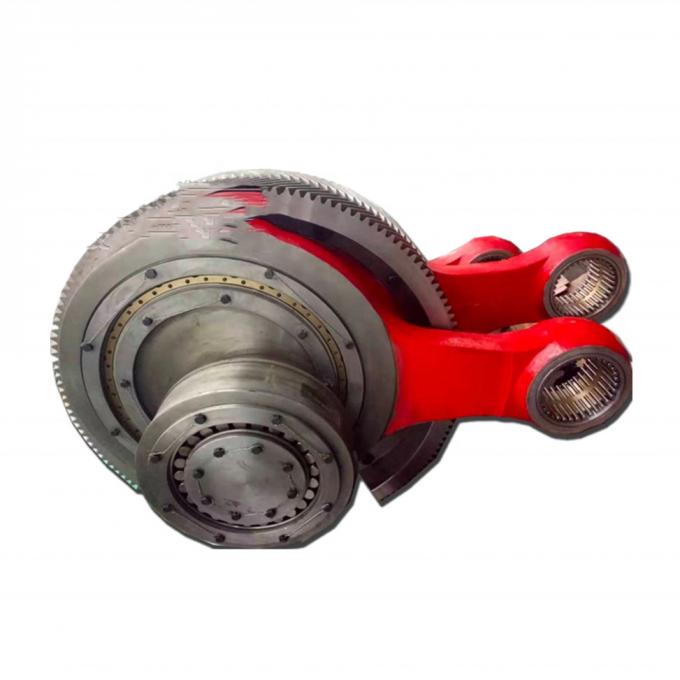

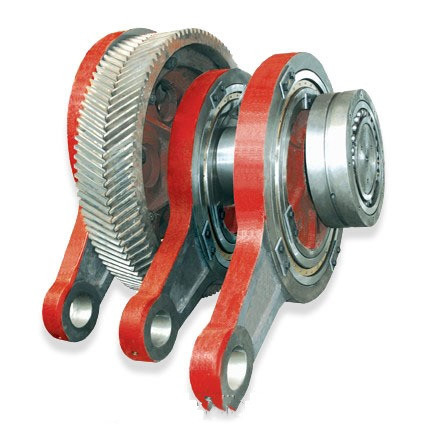

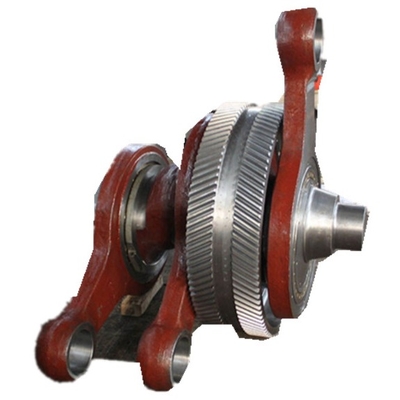

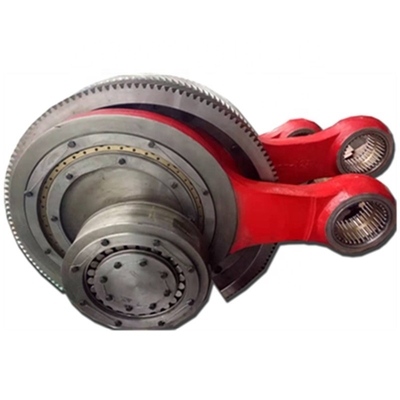

● The crank shaft assembly consists of crank shaft, ring gear, connection rod (with bearing) and the main bearing.
● The working clearance of bearing is pre-determined by the fitting precision of the installed shaft and the relevant holes.
● Crankshaft is alloy steel casting. Forged and heat treated, high strength alloy steel, provide longer service life and stronger, resistance against chipping under continuous load. They are exchangeable with all major pump models.
| Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 |
| Type | Triplex single acting | Triplex single acting | Triplex single acting | Triplex single acting | Triplex single acting |
| Rated Power | 373kw | 596kw | 735kw | 969kw | 1193kw |
| 500HP | 800HP | 1000HP | 1300HP | 1600HP | |
| Rated Speed | 165 SPM | 150 SPM | 140 SPM | 120 SPM | 120 SPM |
| Stroke(mm/inch) | 190/7 1/2″ | 228.6/9″ | 254/10″ | 305/12″ | 305/12″ |
| Max.Liner Dia. | 170/6 3/4″ | 170/6 3/4″ | 170/6 3/4″ | 180/7″ | 180/7″ |
| Gear Type | Herringbone | Herringbone | Herringbone | Herringbone | Herringbone |
| Valve Pot | API-5 | API-6 | API-6 | API-7 | API-7 |
| Gear Ratio | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 | 4.206:1 |
| Suction Inlet | 203/8″ | 254/10″ | 305/12″ | 305/12″ | 305/12″ |
| Discharge Inlet | 4″Flange | 5″Flange | 5″Flange | 5″Flange | 5″Flange |
| 5000 psi | 5000 psi | 5000 psi | 5000 psi | 5000 psi | |
| Lubrication | Forced& | Forced& | Forced& | Forced& | Forced& |
| Splash | Splash | Splash | Splash | Splash | |
| Max. Pressure | 27.2Mpa | 34.5Mpa | 34.5Mpa | 34.5Mpa | 35Mpa |
| 3945 psi | 5000 psi | 5000 psi | 5000 psi | 5080 psi | |
| Overall Size(in) | 144*106*86 | 156*79*66 | 163*89*70 | 174*121*78 | 181*129*106 |
| Weight(kg) | 9770 | 14500 | 18790 | 24572 | 24791 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?

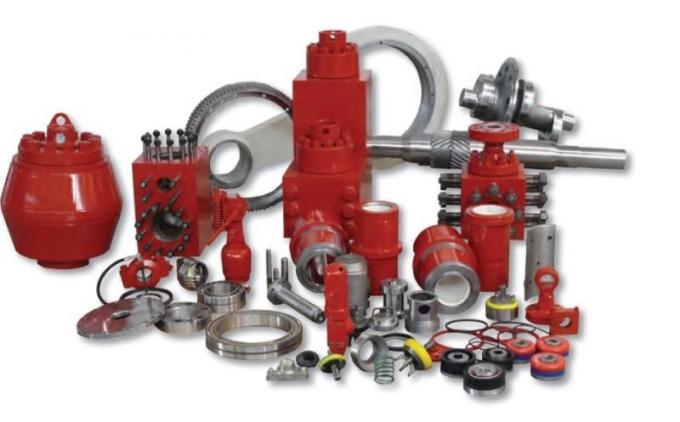

Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-4. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
