Product Details:
|
| Prodcut Name: | Pony Rod | Material: | 35CrMo, 42CrMo, Etc |
|---|---|---|---|
| Type: | Extension Rod | Core Components: | Pump, Engine, Motor |
| Machinery Test Report: | Provided | Application: | For Oil Drilling Mud Pump |
| High Light: | Piston Mud Pump Pony Rod,Extension Mud Pump Pony Rod,F1600 Mud Pump Extension Rod |
||
Mud Pump Spare Parts F1600 Pony Rod Piston Rod Extension Rod API 7K

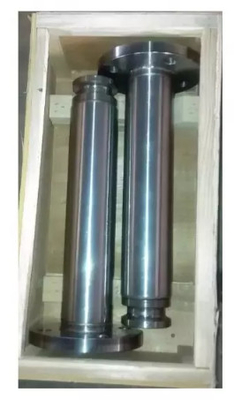

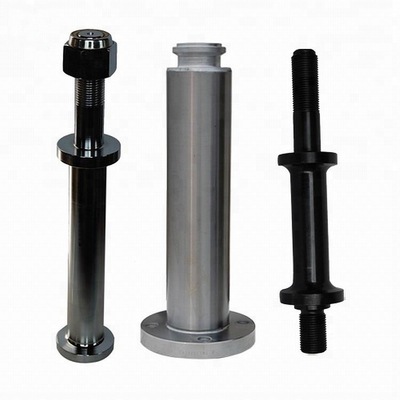

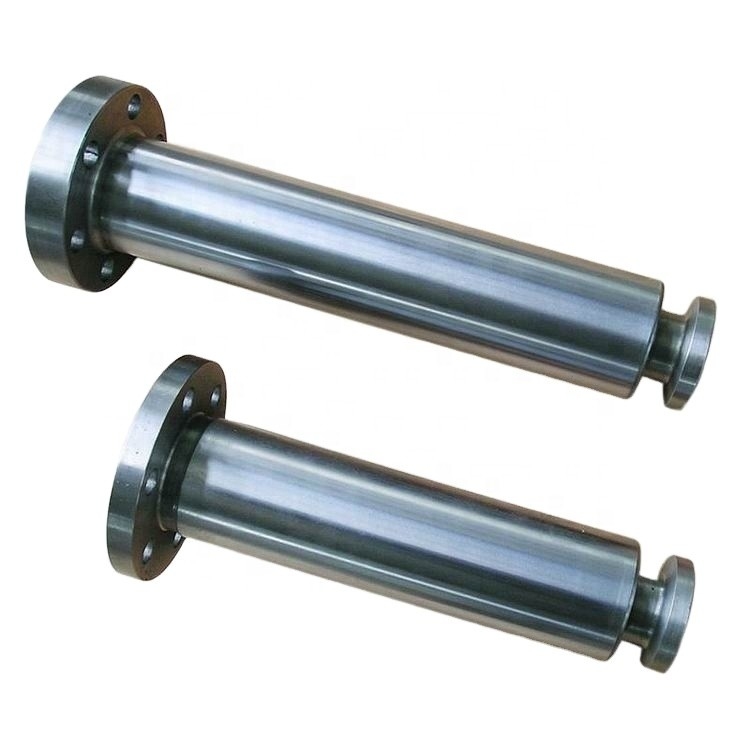

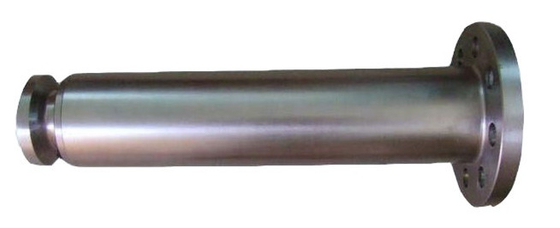

Pony Rod description of Mud Pump Spare Parts:
Pony rod is also called middle rod, is the key part at the boundary between the power end and the hydraulic end, and an important part connecting the crosshead and the piston rod. Its function is to transmit the power to the hydraulic end. One end of it is connected with the cross head, the other end is connected with the piston rod through the clamp, and the stuffing box assembly is installed on its outer surface. During the reciprocating motion, the outer circle of the intermediate tie rod and the seal in the stuffing box rub against each other. In order to ensure wear resistance, the outer surface of the intermediate tie rod is plated with hard chrome. The material of the middle tie rod is 35CrMo, and the surface is smooth after the surface is chrome-plated and finely ground, which greatly improves the wear resistance and corrosion resistance.
● The intermediate/extension rod is the critical part for the power end outlet of the mud pump.It is is an important parts transporting the power from the driving end to the hydraulic end.
● The larger end connects the crosshead and the smaller one connects the piston rod through the clamp.Its excircle is sealed by the two-lip seal and o ring in the stuffing box.
● The blank of intermediate/extension rod is 45 steel forging.
● The excircle went through hard chromium plating treatment.
● The roughness is Ra0.4.
Extension Rod specification of Mud Pump Parts:
| Model | Fig. No. | φ | L | Thread | Weight (Kg) |
| F500 | AH35001-05.18A | 66.68 | 457.9 | M24 | 7 |
| AH35003-05.06 | 1 1/2-8UN | ||||
| F800 | AH34001-05.02A | 88.9 | 485 | M39×3 | 9.6 |
| AH34001-05.02 | 1 1/2-8UN | ||||
| F1000 | AH33001-05.21A | 101.6 | 534 | M39×3 | 13.5 |
| AH33001-05.02 | 1 1/2-8UN | ||||
| F1300 F1600 |
AH36001-05.19A | 120.65 | 550 | M39×3 | 14 |
| AH36002-05.05 | 1 1/2-8UN | 17 |
| BOMCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | F-1600L | F-2200HL |
| Hong Hua | HHF-500 | HHF-800 | HHF-1300 | HHF-1600 | 3NB-1600F | 5NB-1600 | 5NB-2400 | |
| EMSCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | FD-1000 | FC-2200 | FB-1300 |
| Gardner Denver | PAH | P7 | P8/9 | P10/11 | PXL | PX-11 | PZL | PY-FXD |
| National | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-200 | 14-P-220 | N1000/1300 |
| Oilwell | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||||
| TSC | WF-500 | WF-800 | WF-1000 | WF-1300 | WF-1600 | WF-2000 | WF-2200 | |
| IDECO | T-500 | T-800 | T-1000 | T-1300 | T-1600 | |||
| Russian pump | UNBT950 | UNB600 | 8T650 | UNBT1180L | NBT600 | NBT300 | ||
| Wirth | TPK1000 | TPK1600 | TPK2000/2200 | |||||
| Weatherford | MP-5 | MP-8 | MP-10 | MP-13 | MP-16 |
