Product Details:
|
| Product Name: | Mud Pump Spare Parts Fluid End | Application: | Fluid End Module |
|---|---|---|---|
| Power: | Hydraulic | Color: | Steel / Red |
| Standard: | API 7K & ISO | Condition: | New |
| Weight: | 500 KGS | Usage: | Oilfields Drilling MUd Pump |
| High Light: | Emsco Mud Pump Fluid End,Mud Pump Fluid End Module,Hydraulic Discharge Fluid End Module |
||

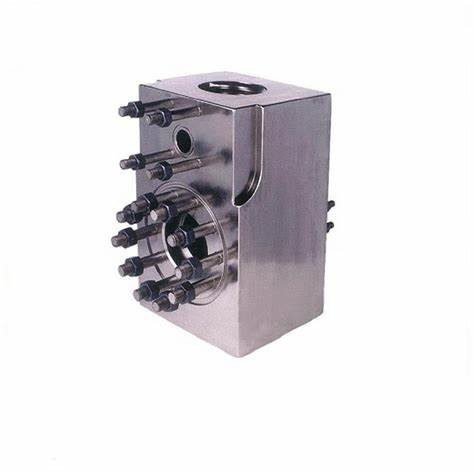

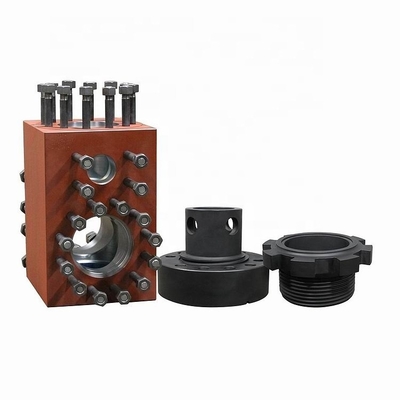

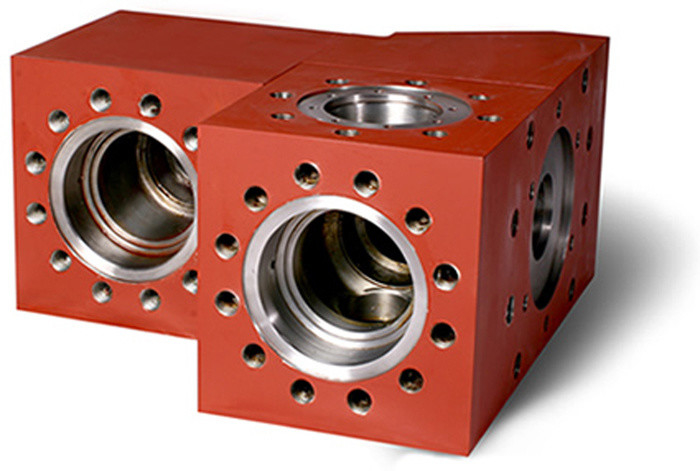

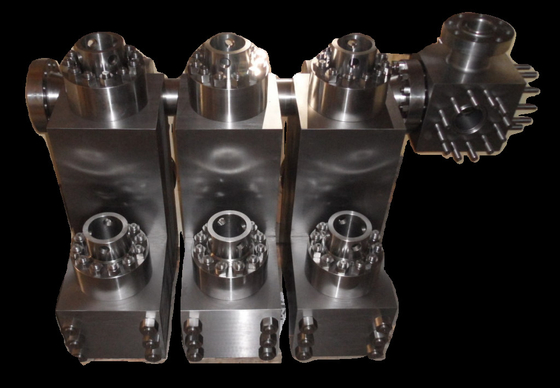

Discharge Fluid End Module for Gardner Denver/ Emsco / Bomco Mud Pump Spare Parts
Description of Mud Pump Spare Parts Fluid End
Mud mump Fluid End is also Hydraulic cylinder, can be called the valve box as well, it is a major part to the fluid end parts. Blank forged by highstrength alloy steel. After heat treated, with multi-channel processes. The three cylinders of each pump is interchangeable. Every module has been tested and issued with an inspection report
Fluid End Module Features:
1. Module is made from 4135 alloy steel with strict forging and heat treatment process.
2. Mud pump fluid end parts offer full lines of Cylinder Head, Valve Lock Cover, Cylinder Head Threaded Ring, Cylinder head Plug, Valve Cover Plug, Upper Valve Guide, Lower Valve Guide, Liner Threaded Ring, Liner Lock, Wear Plate and much more
|
Material
|
AISI 4135(35CrMo) or AISI 4130(30CrMo)
|
|||
|
Application
|
Rated for drilling operation pressure from 5000 PSI up to 7500 PSI
|
|||
|
Heat Treatment
|
High Pressure Forging & Advanced Heat Treatment conforming to & Exceeding API 6A Specification
|
|||
|
100% Interchangeable
|
100% interchangeable with a wide range of world popular brands mud pumps
|
|||
|
Material Tests
|
in accordance with ASTM A 370
|
|||
|
UT Inspection
|
performed per ASTM A 388 on each forging to ensure free of crack, inclusion, lamination etc
|
|||
