Product Details:
|
| Product Name: | Double Arm Elevator Links | Material: | Alloy Steel; Carbon Steel |
|---|---|---|---|
| Color: | Red, Blue | Standard: | API 8C |
| Capacity: | 75~450 Tons | Length: | 3600mm |
| Type 1: | Weldless Links | Type 2: | Perfection Links |
| High Light: | 150 Ton Perfection Links,SH Type Perfection Links,SH Type Double Elevator Links |
||
150 ton Perfection Links Tubular Handling Tools SH type Double Elevator Links

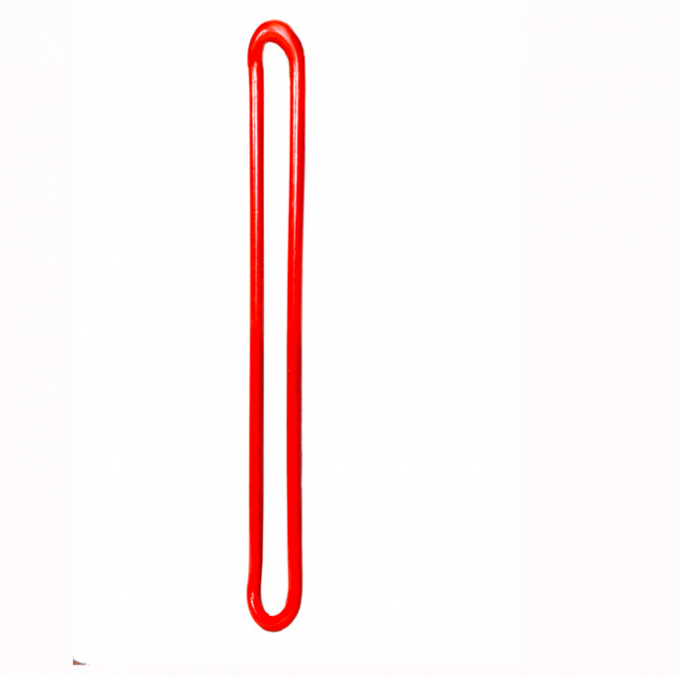

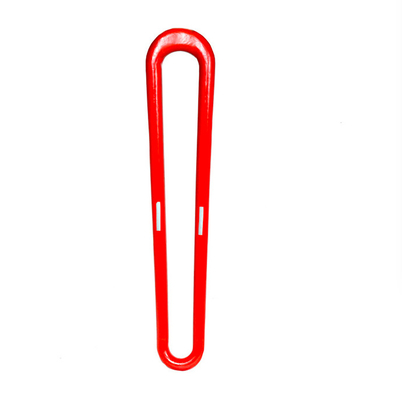

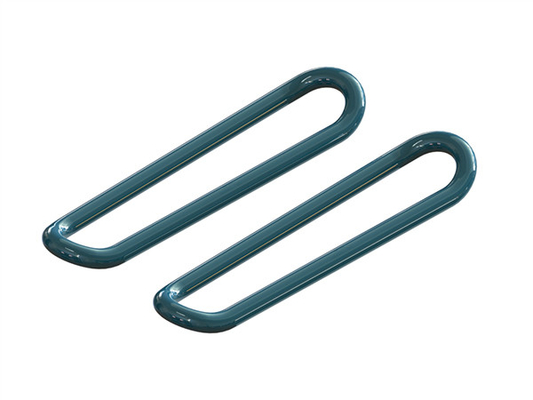

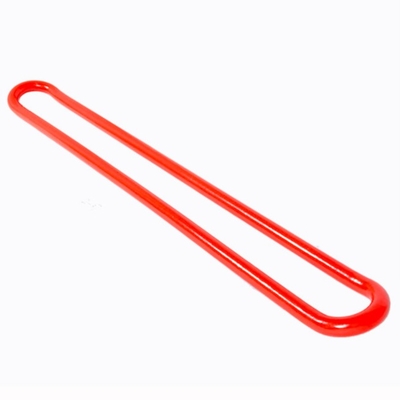

Description of Double Arm Elevator Links
SH dependable, efficient perfection links are designed for light loads. Perfection links are made by forging, bending and electric welding of high-quality steel bar stock, which is then heat-treated and magnafluxed. Rating loads of perfection links series are 40t(355kN),50t(445kN),65t(580kN),75t(665kN),100t(890kN),150t(1335kN). All the technical data and properties of perfection links completely conform to the requirements of GB/T 19190 and API Spec 8C.
Tubular Handling Tools Features:
* Standard: APISpec 8C,GB/T19190
* Adopts hig-qualty structural lly steel as raw material
* Safety Factor. n=3
* Working Load Limit: 30 ~ 150 tons
* Manufactured by forging and welding
* Special heat treatment.
* Non- destructive test is pertormed.
* Its strength is verifed throughout 1.5 WLL tensile test.
* There are signs such as WORKING LOAD LIMIT marked on the link.
* Surface painted.
* It is aplicable for diling in deep well and super deep well.
* Use in couple.
Double Elevator Links Datasheet
| Specifications | SH 40 | SH 50 | SH 65 | SH 75 | SH 100 | SH 150 |
| Rating loads | 40t(355kN) | 50t(445kN) | 65t(580kN) | 75t(665kN) | 100t(890kN) | 150t(1335kN) |
| Length | 1100mm | 1100mm | 1200mm | 1500mm | 1500mm | 1700mm |
| Art No. | D (mm) |
r1 (mm) |
R1 (mm) |
L1 (mm) |
L2 (mm) |
d3 (mm) |
r2 (mm) |
R2 (mm) |
L3 (mm) |
L4 (mm) |
L (mm) |
Weight (kg/Pair) |
| SH 30 | 40 | 20 | 51 | 20 | 102 | 40 | 20 | 51 | 102 | 40 | 1100 | 53 |
| SH 50 | 45 | 22.5 | 51 | 20 | 102 | 53 | 22 | 64 | 128 | 60 | 1100 | 73 |
| SH 65 | 50 | 25 | 51 | 20 | 102 | 55 | 22 | 64 | 128 | 60 | 1200 | 94 |
| SH 75 | 50 | 25 | 60 | 20 | 120 | 60 | 25 | 80 | 160 | 70 | 1500 | 134 |
| SH 100 | 55 | 27.5 | 60 | 25 | 120 | 65 | 27 | 80 | 160 | 75 | 1500 | 160 |
| SH 150 | 65 | 23 | 60 | 35 | 120 | 75 | 28 | 85 | 170 | 94 | 1700 | 244 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
