Product Details:
|
| Product Name: | Oilfields Mud Pump Roller Chain | ISO Chain No.: | 24S-6 |
|---|---|---|---|
| Model: | RC-120-6 | Standard: | GB3638 |
| Pitch: | 38.1mm | Structure: | Roller Type |
| Material: | Alloy Steel | Function: | Transmission Chain |
| High Light: | 8P80 Mud Pump Chain Case,RC-120-6 Mud Pump Chain Case,RC-120-6 Roller Chain |
||

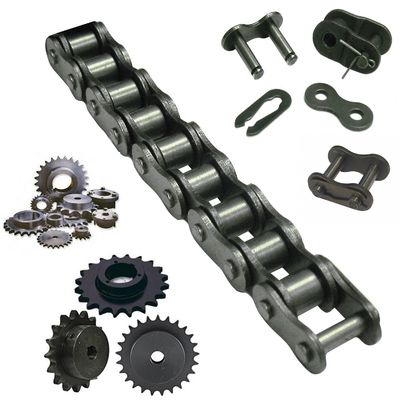

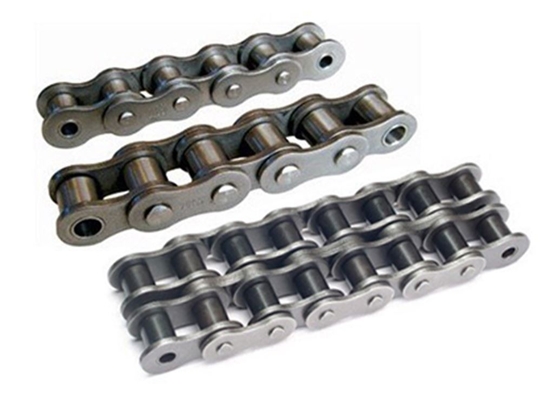

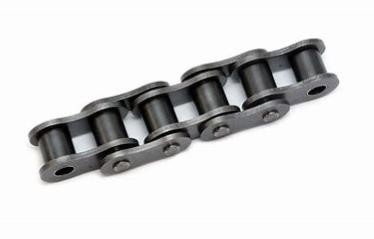

Oilfields Mud Pump Spare Parts Transmission Chains RC-120-6
The transmission chains (oil chain, oil field roller chain) is designed for oil drilling and oil production of mud pump drive, engine group, power drive, camshaft, rotary vice axis, rotary table and other design and production. Oil chains can also be used for natural gas extraction, mining equipment, logging machines and ball mills. Safety and reliability are critical to the oil chain.
Data sheet for Oilfields Mud Pump Spare Parts Transmission Chains RC-120-6
| China NO. |
GB Chiain No | Pitch | Roller | Inner width of | Pin | Plate | Plate | Array | Pin length | Tensile | Weight/m |
| ISO Chain No | Diameter | inner link | diameter | thickeness | height | Pitch | load | ||||
| p | d1(max) | b1(max) | d2(max) | h1 | h2 | pt | b2 | min | q | ||
| 80GA-1 | 16S-1 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | - | 36.2 | 55.6 | 2.84 |
| 80GA-2 | 16S-2 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 65.5 | 111.2 | 5.54 |
| 80GA-3 | 16S-3 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 94.8 | 166.8 | 8.23 |
| 80GA-4 | 16S-4 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 124.1 | 222.4 | 10.93 |
| 80GA-5 | 16S-5 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 153.4 | 278 | 13.63 |
| 80GA-6 | 16S-6 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 182.6 | 333.6 | 16.32 |
| 80GA-8 | 16S-8 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 241.2 | 444.8 | 21.72 |
| 100GA-1 | 20S-1 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | - | 43.6 | 86.74 | 4.25 |
| 100GA-2 | 20S-2 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 79.3 | 173.48 | 8.31 |
| 100GA-3 | 20S-3 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 115.1 | 260.22 | 12.36 |
| 100GA-4 | 20S-4 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 150.8 | 346.96 | 16.41 |
| 100GA-5 | 20S-5 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 186 | 433.7 | 20.47 |
| 100GA-6 | 20S-6 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 222.4 | 520.44 | 24.52 |
| 100GA-8 | 20S-8 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 293.9 | 693.92 | 32.63 |
| 120GA-1 | 24S-1 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | - | 54.1 | 125.1 | 6.81 |
| 120GA-10 | 24S-10 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45 | 463.1 | 125.1 | 59.63 |
| 120GA-1 | 24S-2 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 99.6 | 250.2 | 12.12 |
| 120GA-3 | 24S-3 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 145.5 | 375.3 | 18.06 |
| 120GA-4 | 24S-4 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 190 | 500.4 | 23.99 |
| 120GA-5 | 24S-5 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 235.9 | 625.9 | 29.23 |
| 120GA-6 | 24S-6 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 281.3 | 750.6 | 35.87 |
| 120GA-7 | 24S-7 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 326.7 | 875 | 41.82 |
| 120GA-8 | 24S-8 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 372.2 | 1000.8 | 59.63 |
| 140GA-2 | 28S-1 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | - | 58.4 | 170.27 | 7.91 |
| 140GA-10 | 28S-10 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 498.2 | 1702.7 | 76.81 |
| 140GA-2 | 28S-2 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 107.2 | 340.54 | 15.6 |
| 140GA-3 | 28S-3 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 156.1 | 510.81 | 23.25 |
| 140GA-4 | 28S-4 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 302.7 | 1021.62 | 46.2 |
| 140GA-5 | 28S-5 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 253.9 | 851.35 | 38.55 |
| 140GA-6 | 28S-6 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 302.7 | 1021.62 | 46.2 |
| 140GA-8 | 28S-8 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 400.5 | 1362.16 | 61.5 |
| 160GA-1 | 32S-1 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | - | 69 | 222.4 | 10.47 |
| 160GA-2 | 32S-2 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 127.5 | 444.8 | 20.65 |
| 160GA-3 | 32S-3 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 186.1 | 667.2 | 30.82 |
| 160GA-4 | 32S-4 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 244.6 | 889.6 | 40.99 |
| 160GA-5 | 32S-5 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 303.2 | 111.2 | 51.6 |
| 160GA-6 | 32S-6 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 361.7 | 1334.4 | 61.33 |
| 160GA-8 | 32S-8 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 478.8 | 1779.2 | 81.68 |
| 180GA-1 | 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 180GA-1 | 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 180GA-2 | 36S-2 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 143.6 | 560.5 | 27.88 |
| 180GA-3 | 36S-3 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 209.4 | 840.7 | 41.62 |
| 180GA-4 | 36S-4 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 275.3 | 1121 | 55.36 |
| 200GA-1 | 40S-1 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | - | 84.5 | 347.5 | 17.35 |
| 240GA-2 | 40S-2 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 156 | 695 | 34.14 |
| 200GA-3 | 40S-3 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 227.6 | 1042.5 | 50.94 |
| 200GA-4 | 40S-4 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 299.1 | 1390 | 67.73 |
| 240GA-1 | 48S-1 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | - | 102.2 | 500.4 | 25.2 |
| 240GA-2 | 48S-2 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 190.1 | 1000.8 | 49.81 |
| 240GA-3 | 48S-3 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 277.9 | 1501.2 | 74.43 |
| 240GA-4 | 48S-4 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 365.7 | 2001.6 | 99.04 |
