Product Details:
|
| Features: | Tubular Handling Casing | Product Name: | CD / CDZ Side Door Elevator |
|---|---|---|---|
| Size: | 2 3/8"-5 1/2" | Max Load: | 150~750 Tons |
| Material: | Carbon Steel | Application: | Oil Field |
| Condition: | New | Warranty: | 12 Months |
| High Light: | API 8C Drill Pipe Elevators,CD Drill Pipe Elevators,CDZ Side Door Elevator |
||

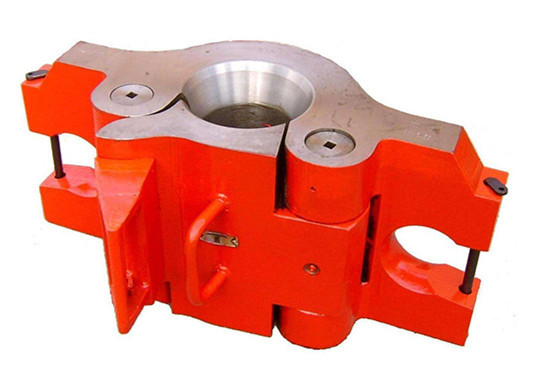

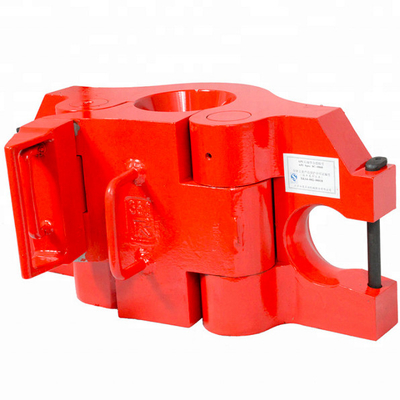

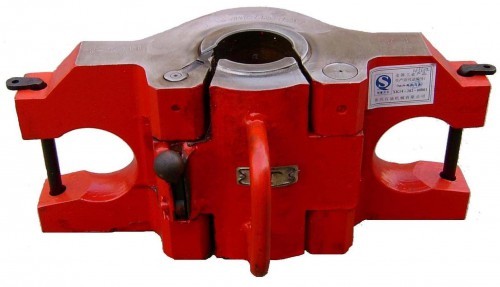

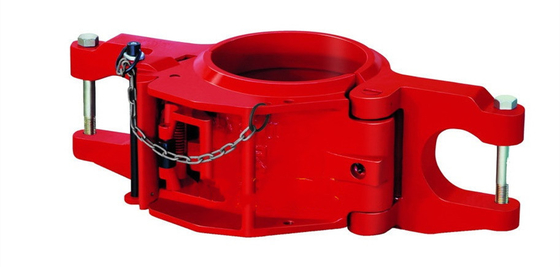

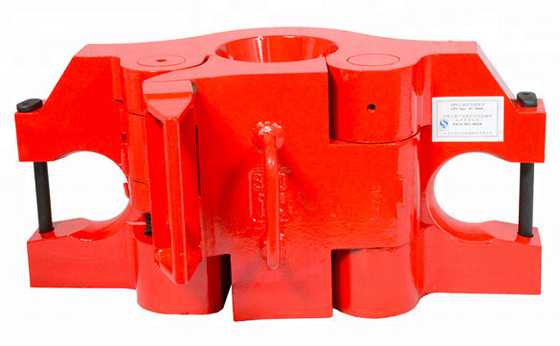

API 8C Drill Pipe Elevators Tubular Handing Tools CD CDZ Side Door Elevator
Tubular Handing Tools Elevator is a tool used to hoist pipes such as drill pipe, tubing and casing. In well engineering, elevator is a tool used to hoist pipes such as drill pipe, tubing and casing. In the lifting rings on both sides of the hook of the system, in order to lift out or run drilling tools, tubing and casing in the wellbore, the elevators have different specifications for the drill string to be lifted.
Tubular Handing Tools CD/CDZ Elevator description:
CD-type side-opening elevators are mainly used for the clamping and lifting of oil pipes, casings, drill pipes and drill collars during oil and gas drilling and workover operations. The products are designed and manufactured according to the requirements of API Spec 8C.
| Model | Applicable pipe diameter(in) | Rated Cap. (Short Tons) |
| CD-150 | 2.3/8-14 | 150 |
| CD-200 | 2.3/8-14 | 200 |
| CD-250 | 2.3/8-20 | 250 |
| CD-350 | 4.1/2-20 | 350 |
| CD-500 | 4.1/2-14 | 500 |
| CD-750 | 4.1/2-9.7/8 | 750 |
CDZ drilling pipe elevator is mainly used in the holding and hoisting of drilling pipe with 18 degree taper and tools in oil and natural gas drilling, well construction.CDZ drill pipe elevators are forged from high quality alloy steel, heat-treated, and NDT tested. The rated loads range from 150t (1350kN) to 500t (4500kN, and cover pipe sizes from 2.3/8" to 5.1/2" O.D .
| Type | Model | Drill pipe size and style | Elevator bores | Elevator sign | Maxload tons (KN.m) |
| CDZ | CDZ67 | 2 3/8 EU | 67 | 2 3/8 EU | 100(900) 150(1350) 250(2250) 350(3150) |
| CDZ83 | 2 7/8 EU | 83 | 2 7/8 EU | ||
| CDZ101 | 3 1/2 EU | 101 | 3 1/2 EU | ||
| CDZ109 | 4 IU | 109 | 4IU | ||
| CDZ121 | 4 EU | 121 | 4EU | ||
| 4 1/2 IU | 4 1/2 IU | ||||
| 4 1/2 IEU | 4 1/2 IEU | ||||
| CDZ133 | 4 1/2 IU | 133 | 4 1/2 IU | ||
| 5 IEU | 5 IEU | ||||
| CDZ148 | 5 1/2 IEU | 148 | 5 1/2 IEU |
