Product Details:
|
| Product Name: | CDZY /DDZH Hydraulic Elevator | Working Temperature: | -20℃~+60℃ |
|---|---|---|---|
| Flow: | 19L/min~60L/min | Load Tons: | 75~750 |
| Rated Working Pressure: | 2000psi~2500psi | Weight: | 500kg |
| Material: | Iron | Rate Load: | 2224kN |
| High Light: | DDZH Type Hydraulic Elevator,CDZY Type Hydraulic Elevator,Wellhead CDZY Hydraulic Elevator |
||
Wellhead Automation CDZY /DDZH Type Hydraulic Elevator Tubular Handing Tools

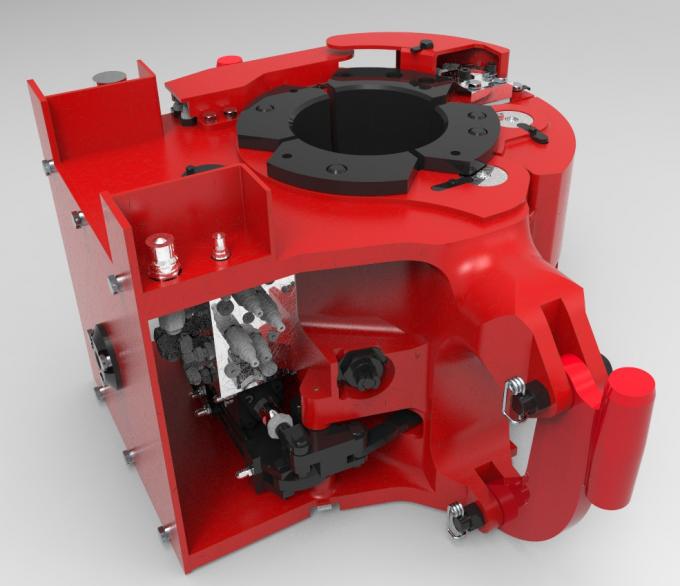

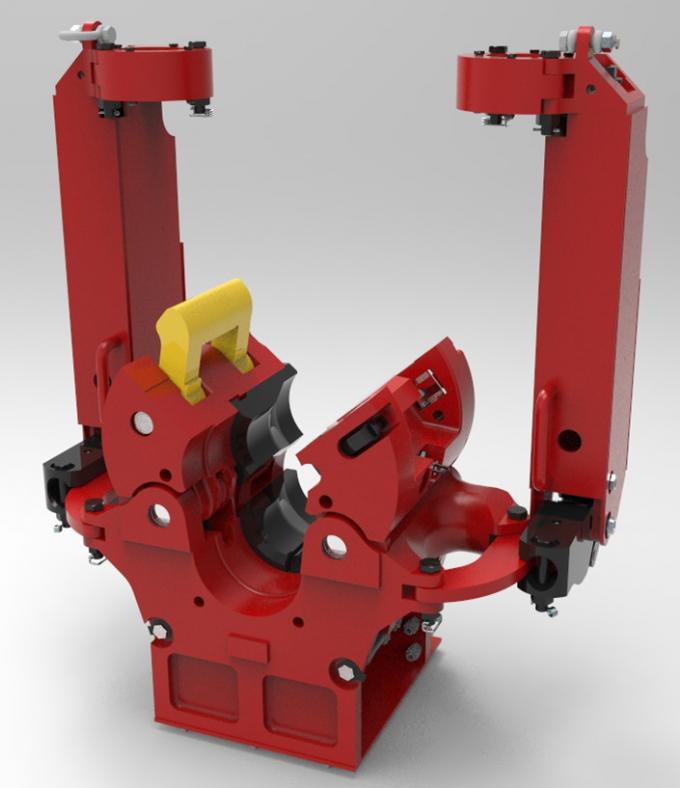

The CDZY type hydraulic elevator is designed and manufactured according to API Spec 8c. It adopts integrated control of machine, electricity and liquid to realize the automatic opening, closing, turning and signal feedback of the elevator. Unmanned operation of the second floor can be realized.
Features
◆Safe and reliable, the elevator has a load mechanical insurance mechanism;
◆It has the functions of pipe column entry and elevator closing detection;
◆Through the flip arm to achieve flip within the range of 0~90°;
◆The replaceable inner lining structure realizes multi-purpose and good economy;
◆Unmanned operation of the two-tier platform is realized through the cooperation of the manipulator.
| Specification model | specification | Load tons | ||||
| 18° drill pipe | casing | Drill Collar | Tubing | Flat step drill pipe | ||
| CDZY75 | 2.3/8~3.1/2 | / | / | 2.3/8~2.7/8 | 2.7/8~3.1/2 | 75 |
| CDZY 100 | 2.3/8~3.1/2 | / | / | 2.3/8~2.718 | 2.7/8~3.1/2 | 100 |
| CDZY150 | 2.3/8~4.1/2 | 4.1/2~4.3/4 | / | 2.3/8~4.1/2 | 2.7/8~4.1/2 | 150 |
| CDZY250 | 2.3/8~5.1/2 | 4.1/2~7.5/8 | 3.1/8~7.1/2 | 2.3/8~5.1/2 | 2.7/8~5.1/2 | 250 |
| CDZY350 | 2.3/8~5.1/2 | 4.1/2~7.5/8 | 3.1/8~7.1/2 | 2.3/8~5.1/2 | 2.7/8~5.1/2 | 350 |
| CDZY500I | 2.3/8~ 6.5/8 | 4.1/2~9.5/8 | 3.1/2~9.1/2 | 2.3/8~5.1/2 | 2.7/8~5.1/2 | 500 |
| CDZY500II | / | 9.5/8~20 | / | / | / | 500 |
| CDZY750 | 2.3/8~6.5/8 | 4.1/2~9.5/8 | 3.1/2~9.1/2 | 2.3/8~5.1/2 | 2.7/8~5.1/2 | 750 |

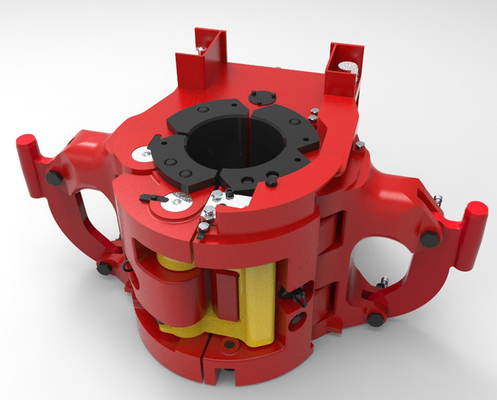

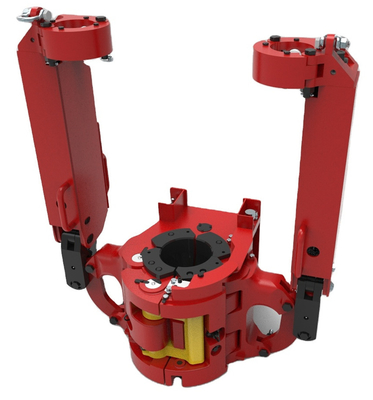

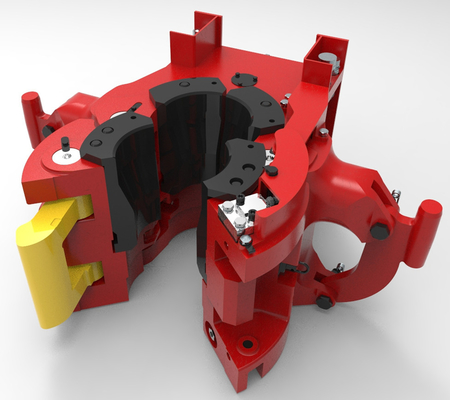

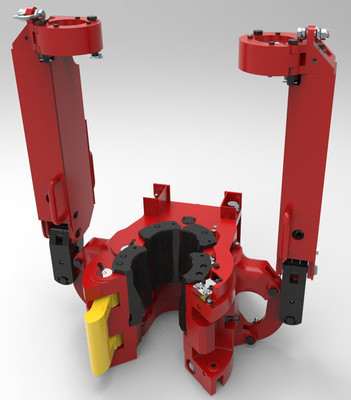

DDZH hydraulic elevator is center latch elevator. Through changing the bushing, it can handle drilling pipe, drill collar, casing and tubing and uses the hydraulic control system, which makes the operation more convenient, effectively reduces the workers’ labor intensity and improves the work efficiency; it can also realize remote control and make the use safer and more reliable. The products shall be designed and manufactured according to the requirements in API Spec 8C Specification for Drilling and Production Hoisting Equipment.
| Elevator model | Pipe type and specification (in) | Rated load (short tons) | |||
| Taper drill pipe | casing | Drill Collar | Tubing | ||
| DDZH-250 | 2023/8/5 | 1941/2/5 | 31/8-51/4 | 23/8-41/2 | 250 |
| DDZH-350 | 23/8-65/8 | 1941/2/7 | 31/8-63/4 | 23/8-51/2 | 350 |
| DDZH-500 | 23/8-65/8 | 1941/2/7 | 31/2-63/4 | / | 500 |
