Product Details:
|
| Product Name: | WQ Pneumatic Slip | Applicable Pipe Diameter: | 2.3/8~ 14 In |
|---|---|---|---|
| Maximum Working Load: | 250~500 | Applicable Turntable: | 27.1/2, 37.1/2 In |
| Working Pressure: | 0.6~0.8Mpa | Weight: | 1500kg |
| Model Number: | WQ 275, WQ 375 | ||
| High Light: | API 7K Power Casing Slip,API 7K Automation Pneumatic Slip,Wellhead Automation Pneumatic Slip |
||

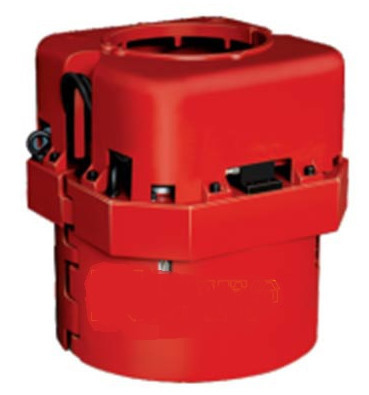

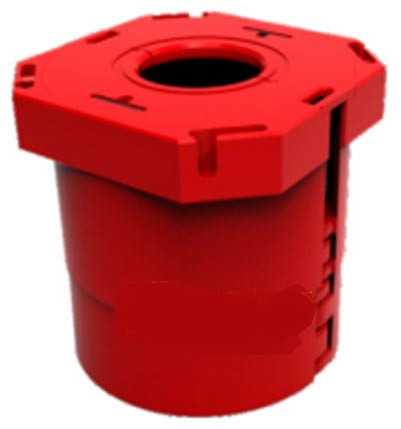

API 7K Power Slip Tubular Handing Tools Wellhead Automation Pneumatic Slip
● Safe and reliable: the use of one crane and one card to lift off the drill operation fundamentally avoids the occurrence of a single hoist ring accident in the operation of double elevators.
● Simple operation: realizing the control in the driller's room, saving the time of starting and lowering the casing or casing string.
● Strong applicability: different configurations can be used according to the scene;
● Air blowing and mud removal function: the air blowing function can be added as needed to ensure the cleanliness of the wellhead during the drilling process;
● Provide anti-torque: According to different models of hydraulic slip, the anti-torque can be provided is 20kN.m, 55kN.m, 75kN+m. The slipped kava can tighten the column, eliminating the need to use back pliers during the upper shackle process.
| Project | Specification model | |||

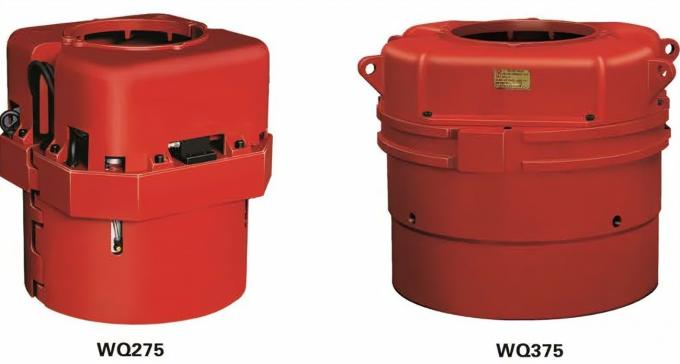

| WQ 275 I | WQ 275 II | WQ 375 II | WQ 375 III | |
| Applicable turntable (in) | 27.1/2 | 27.1/2 | 37.1/2 | 37.1/2 |
| Applicable pipe diameter (n) | 2.3/8~ 9.7/8 | 2.3/8~ 9.7/8 | 2.3/8~14 | 2.3/8~14 |
| Maximum working load (tons) | 250 | 350 | 500 | 500 |
| Maximum working load (kN) | 2224 | 3114 | 4448 |
4448 |
| Project | Specifications | |||
| WQ275 I (The upper cover of the turntable is exposed) | WQ275 II | WQ375 IV | WQ375 V (Quick replacement for drilling) | |
|
Applicable turntabe (in) |
27 1/2 | 27 1/2 | 371/2 | 371/2 |
|
Suitable diameter (in) |
2.3/8～9.7/8 | 2.3/8～7.5/8 | 2.3/8～14 | 2.3/8～7 |
|
Minimum working load (tons) |
350 | 350 | 500 | 500 |
|
Maximum working load (kN) |
3114 | 3114 | 4448 | 4448 |
|
Working pressure (MPa) |
0.6 ～ 0.8 | |||
