Product Details:
|
| Prodcut Name: | F Series Mud Pump Cylinder Head Flange | Material: | 35CrMo |
|---|---|---|---|
| Functions: | Connection | Horsepower: | 1600HP |
| Packing: | Plywood Box(free-fumigation) | Application: | Drilling Mud Pump |
| High Light: | Fluid End Cylinder Head Flange,Mud Pump Cylinder Head Flange,1600HL Mud Pump Spare Parts |
||
Fluid End Parts Cylinder Head Flange Mud Pump Spare Parts F-1000/1300/1600/1600HL

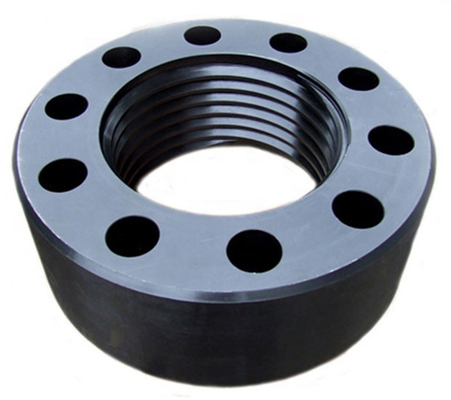

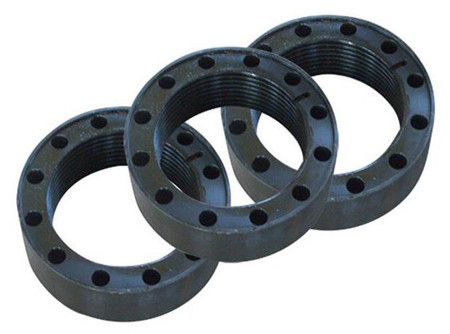

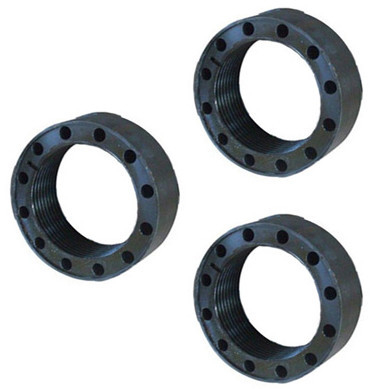

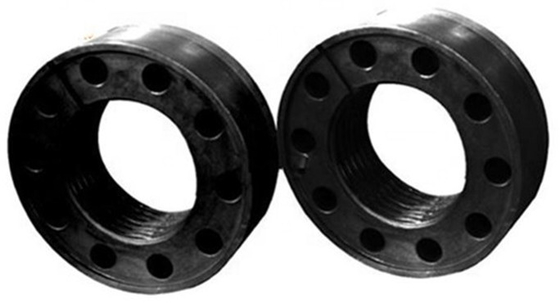

Cylinder Head Flange description of Mud Pump Spare Parts
The cylinder head flange is installed on the front of the fluid end module( hydraulic cylinder) for fixing the cylinder head, and it is connected with the fluid end module( hydraulic cylinder) with the double head screws.
The blank of cylinder head flange is casting ZG35CrMo.
Material: Casting ZG35CrMo
| PUMP TYPE | DRAWING NO. | ERP NO. | D×H | W/Kg |
| F800/F1000 | AH33001-05.02 | AH1001010502 | 393.7×114.3 | 60 |
| F1300/F1600 | AH36001-05.02 | AH1301010502 | 393.7×133.4 | 70 |
Pinion Shaft Assembly: including Pinion Shaft, Oil Seal Wear Ring, End Cover, Gasket, Bearing Sleeve, oil Gathering Box, Oil Seal, Bearing, Flange, Bolt.

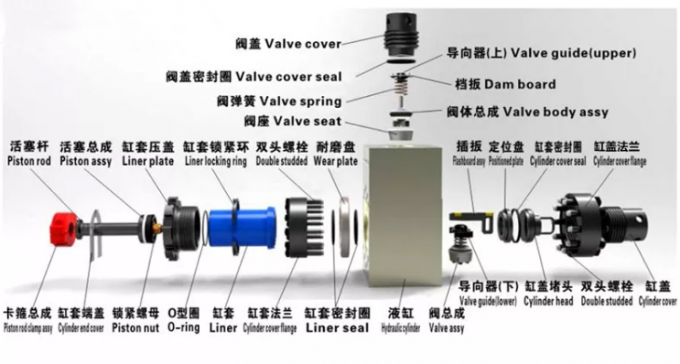

Hydraulic End Assemble: including Hydraulic cylinder assembly, Valve assembly, Cylinder liner, Piston, Piston rod, Cylinder head,Valve cover, Cylinder head flange,Cylinder liner flange, Cylinder liner gland, Cylinder head sealing ring, Cylinder liner seal,Valve cover sealing ring.
Discharge Pipeline Assembly: discharge manifold,The filter assembly, discharge air dampener assembly, double scale pressure gauge,Bend Stone.
Crank Shaft Assembly: crankshaft, Big gear ring, Main bearing set (left), Main bearing bolt, Eccentric Bearing, Main Bearing, spacer ,Retainer ring.
Fluid end: Liner, Piston, Piston rubber, valve body, seals, valve rubber,liner seals, cylinder head gasket, valve cover seals, piston rod, clamp assembly, valve cover, cylinder head, flange head, cylinder flange, cylinder cover, inhalation capsules, etc.
Crossing Head Assembly: Extension rod, crosshead , crosshead pin, cross pin baffle, upper and lower guide plate, packing boxes, seal ring, double lip oil seal.
Dampener: Dampener diaphragm, pressure gauges,fitting, tees, Angle type valve,relief valve, exhaust valve.
