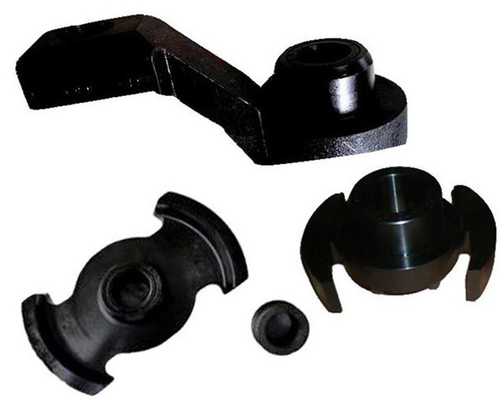

Oil Drilling Valve Rod Guides Mud Pump Spare Parts Upper Lower Valve Rod Guide

Oil Drilling Valve Rod Guides Mud Pump Spare Parts Upper Lower Valve Rod Guide

Valve Rod Guides descaiption of Mud Pump Spare Parts

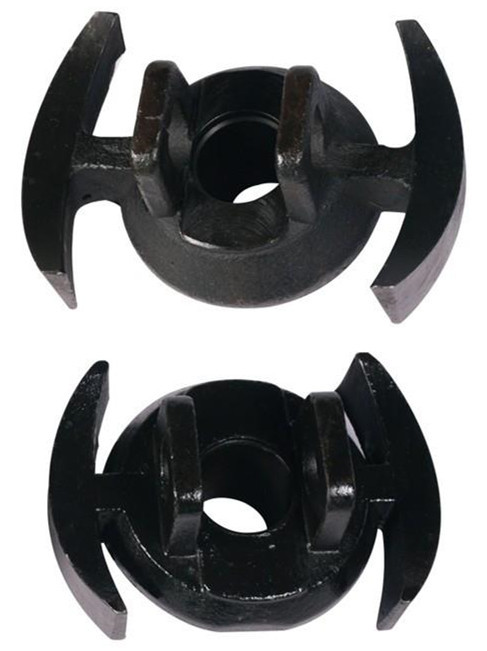

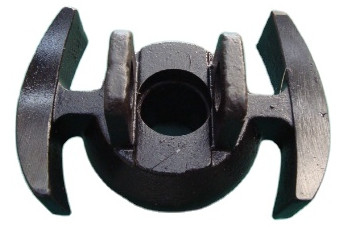

Valve rod guide upper

Guider (upper), also known as the upper guider, is used for centering and positioning the discharge valve body assembly whose material is 20CrMnTi,treated through carburizing and quenching, the HRC is more than 60.

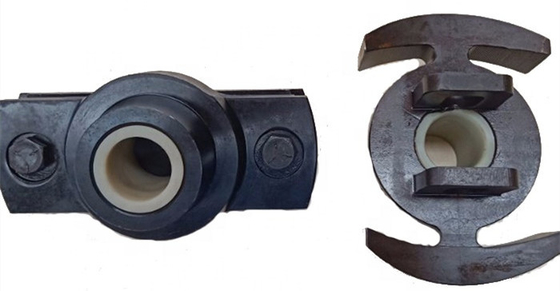

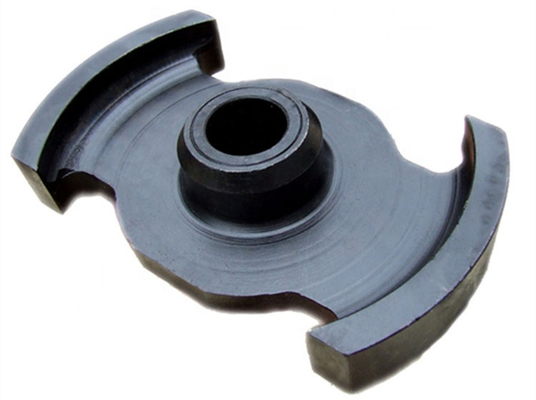

Valve Rod Guides Lower
Guider (lower) is installed in the inner chamber of the hydraulic cylinder ,for centering and positioning the suction valve body assembly.

The guider consists of the guide way and the inner sleeve embedded in the guide way.


The material of the guide way is ZG35CrMo, and the inner sleeve is treated by 20CrMnTi carburization and quenching.

The mud pump valve rod guide (lower), which is installed in the chamber of the cylinder, acts as a centring and positioning suction valve body assembly. It consists of a guide body and an inner sleeve, which is inserted into the guide body. The material of the guide body is ZG35CrMo, and the inner sleeve is carburized and hardened by 20CrMnTi. Check the inner sleeve of the valve rod guide once a week. Replace it if there is obvious wear (the gap between the valve rod and guide is more than 3mm), so as not to lose the guiding function of the guide and accelerate the wear of the valve.

Other Spare Parts of Mud Pump Spare Parts



Pinion Shaft Assembly, including Pinion Shaft, Oil Seal Wear Ring, End Cover, Gasket, Bearing Sleeve, oil Gathering Box, Oil Seal, Bearing, Flange, Bolt.



Hydraulic End Assemble: including Hydraulic cylinder assembly, Valve assembly, Cylinder liner, Piston, Piston rod, Cylinder head,Valve cover, Cylinder head flange,Cylinder liner flange, Cylinder liner gland, Cylinder head sealing ring, Cylinder liner seal,Valve cover sealing ring.



Discharge Pipeline Assembly: discharge manifold,The filter assembly, discharge air dampener assembly, double scale pressure gauge,Bend Stone.



Crank Shaft Assembly: crankshaft, Big gear ring, Main bearing set (left), Main bearing bolt, Eccentric Bearing, Main Bearing, spacer ,Retainer ring.



Fluid end: Liner, Piston, Piston rubber, valve body, seals, valve rubber,liner seals, cylinder head gasket, valve cover seals, piston rod, clamp assembly, valve cover, cylinder head, flange head, cylinder flange, cylinder cover, inhalation capsules, etc.



Crossing Head Assembly: Extension rod, crosshead , crosshead pin, cross pin baffle, upper and lower guide plate, packing boxes, seal ring, double lip oil seal.



Dampener: Dampener diaphragm, pressure gauges,fitting, tees, Angle type valve,relief valve, exhaust valve.



FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-4. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
