Product Details:
|
| Type: | Mud Pump Parts | Keywords: | Pinion Shaft Mud Pump Parts |
|---|---|---|---|
| Core Components: | Gear, Bearing | Material: | Alloy Steel |
| Machine Type: | Forging | Application: | Oilfield |
| High Light: | F1300 Triplex Mud Pump Spare Parts,EMSCO Mud Pump Valve Spring,F800 Mud Pump Valve Spring |
||

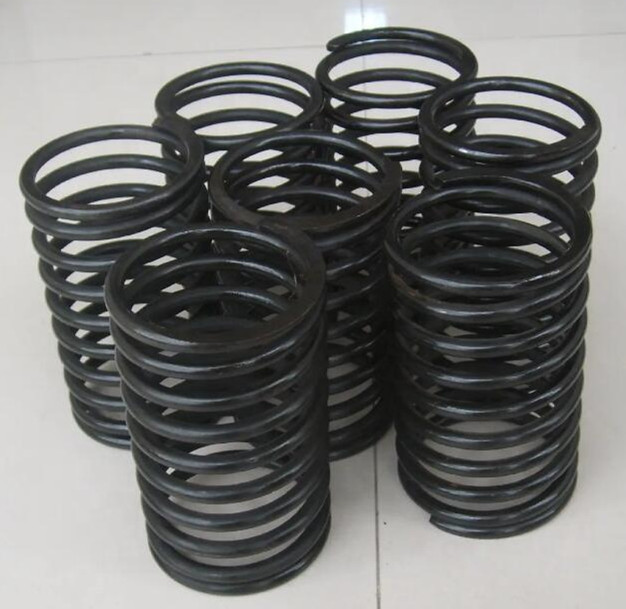

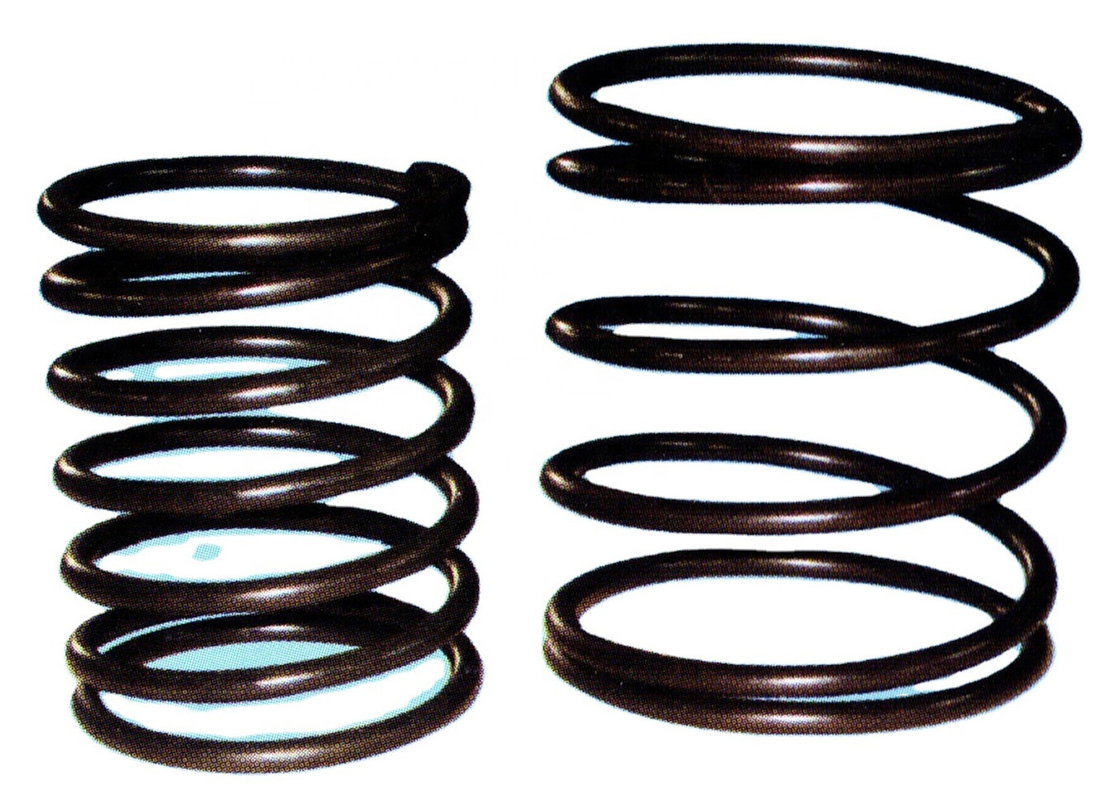

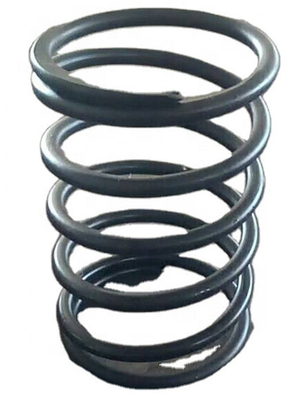

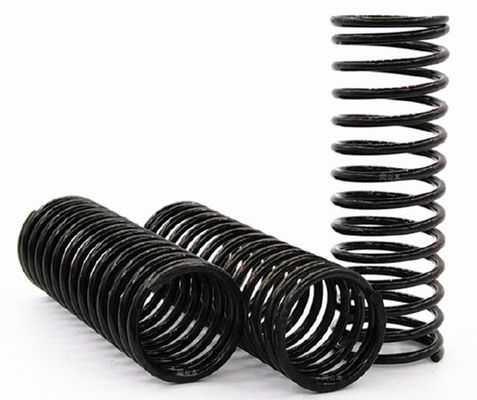

F800 / F1300 Triplex Mud Pump Spare Parts Valve Spring EMSCO Mud Pump Tools

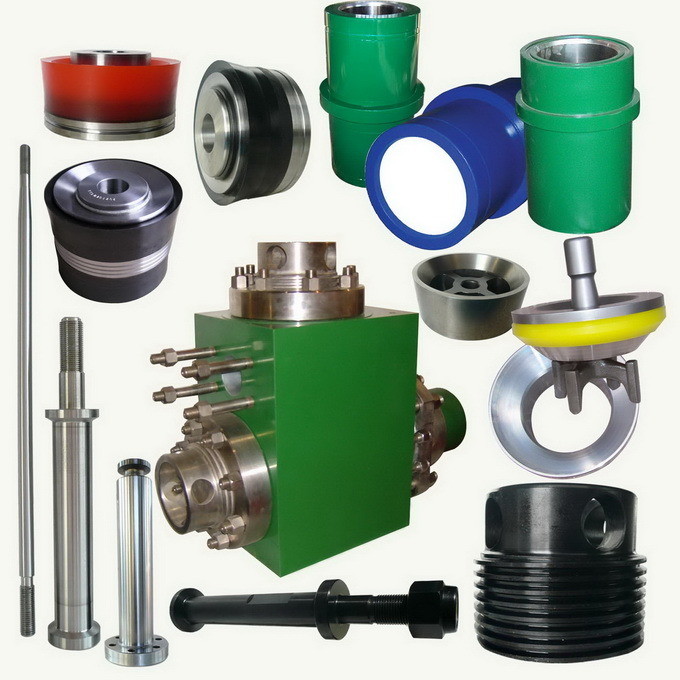

Topland supply wide range of mud pump spares:
China F series Mud Pumps(made by BOMCO, RG, RONGLI, RONGSHENG, HONGHUA), China 3NB series Mud Pumps(made by Lanzhou, Qingzhou), EMSCO, GARDNER DENVER, NATIONAL, OILWELL, IDECO etc.
China F series Mud Pump: F-500, F-800/1000, F-1300/1600
China 3NB series Mud Pump: 3NB-350, 3NB-500, 3NB-600, 3NB-800, 3NB-1000, 3NB-1300, 3NB-1600
EMSCO:F-350, F-500, F-650, F-800, F-1000, FA-1300, FB-1300, FA-1600, FB-1600
GARDNER DENVER: PZ-7, PZ-8/9, PZ-10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP
NATIONAL: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400
OILWELL:A-560/600-PT,A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
IDECO: T-500, T-800, T-1000, T-1300, T-1600
And other brand liners for WIRTH, OPI, ELLIS WILLIAMS, WHITE STAR etc.
| Item | F500 | F800 | F1000 | F1300 | F1600 |
| PN | AH00000101 | ||||
| Power Rating HP(kw) | 500 (373) | 800 (597) | 1000 (746) | 1300 (969) | 1600 (1193) |
| Stroke RatingSPM | 165 | 150 | 140 | 120 | 120 |
| Stroke Length(in /mm) | 7.5” /190.5 | 9”/228.6 | 10”/254 | 12”/305 | 12”/305 |
| Gear Ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 |
| Inlet Dia. (in/mm) | 8”/203 | 10”/254 | 12”/305 | 12”/305 | 12”/305 |
| Outlet Dia. (in) |
4” Flange 5000psi |
5-1/8” Flange 5000psi |
5-1/8” Flange 5000psi |
5-1/8” Flange 5000psi |
5-1/8” Flange 5000psi |
| Valve | API5# | API6# | API6# | API7# | API7# |
| Max. Liner (in/mm) | 6-3/4”/170 | 6-3/4”/170 | 6-3/4”/170 | 7”/180 | 7”/180 |
| Overall Dimension L*W*H(mm) |
3658*2709 *2231 |
3963*3025 *2410 |
4267*3167 *2580 |
4617*3260 *2600 |
4615*3276 *2688 |
| Approx. Weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-4. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
