Product Details:
|
| Name: | Liner 5 For MP 9T- 1000 Mud Pump Spare Parts | Part No.: | 01913503 |
|---|---|---|---|

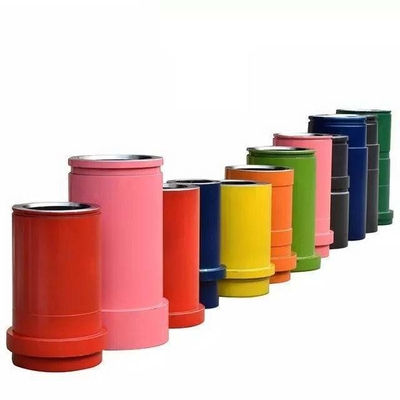

| Usage: | MP 9T- 1000, 9T-800, 7TS-600 Mud Pump | Color: | AT REQUEST |
| Weight: | 40 Kg | Material: | STEEL |
| High Light: | Mud Pump Spare Parts Liner,MP 9T-1000 Mud Pump Liner,Mud Pump Steel Liner |
||

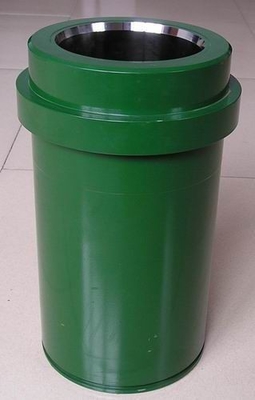

01913503 Liner 5 For MP 9T- 1000 Mud Pump Spare Parts Drillmec
| 1- Spare Parts For Mud Pump 12T-1600HP | ||
| 1 | Fluid End SUCTION MODULE FOR MP 12T-1600, PN 01917364 | |
| 2 | Fluid End DELIVERY MODULE FOR MP 12T-1600 , PN 01917365 | |
| 3 | WEAR PLATE FOR Liners support assembly FOR MP 12T-1600 , PN:01917416 |
|
| 4 | Valve Plug of Fluid End for 12T-1600, P/N: 01917369 | |
| 5 | DISCHARGE FLANGE For MP 12-T1600 P/N: 01917373 | |
| 6 | STUD BOLT FOR DISCHARGE FLANGE For 12T-1600 P/N; 01917377 |
|
| 7 | NUT FOR STUD BOLT DISCHARGE FLANGE For MP 12T-1600 P/N: 01917426 |
|
| 8 | BODY "CROSS PRESSURE LINE MANIFOLD" FOR 12T-1600 P/N: 01917147 |
|
| 9 | FILTER "STRAINER" FOR 12T-1600 CROSS PRESSURE LINE MANIFOLD P/N: 01917324 |
|
| 10 | BLIND FLANGE FOR 12T-1600 CROSS PRESSURE LINE MANIFOLD P/N: 50960095 |
|
| 11 | STUD FOR BLIND FLANGE FOR CROSS PRESSURE LINE MANIFOLD FOR 12T-1600 | |
| 12 | NUT FOR BLIND FLANGE FOR CROSS PRESSURE LINE MANIFOLD FOR 12T-1600 | |
| 13 | Nut for Suction Manifold & FOR Liners Support Assembly & Pulsations damp- of intake line For |
|
| 14 | Plug For SUCTION Pulsation Damper 12T-1600, P/N:01917382 | |
| 15 | 2-HALF TIE COLLAR FOR Liners support assembly FOR MP 12T-1600, PN : 01917358 | |
| 16 | SUPPORT "LINER HOLDER* FOR Liners support assembly FOR MP 12T-1600 , | |
| 17 | COLLAR "2-HALE TIE COLLAR" FOR Liners support assembly FOR MP 12T-1600, | |
| 18 | ROD FOR Liners support assembly FOR MP 12T-1600 PN:01917417 | |
| 19 | PONY ROD "Counter Rod" FOR Liners support assembly FOR MP 12T-1600, PN | |
| 20 | STUD FOR Liners support assembly FOR MP 121-1600, PN 01917423. | |
| 21 | NUT FOR Liners support assembly FOR MP 12T-1600, PN 01917424 | |
| 22 | CAP FOR LINER SUPPORT ASSEMBLY FOR MP 12T-1600, PN:50520028. | |
| 23 | PLUG FOR LINER SUPPORT ASSEMBLY FOR MP 12T-1600, PN:50520035 | |
| 24 | SCREW FOR LINER SUPPORT ASSEMBLY FOR MP 12T-1600, PN:70312020 | |
| 25 | SCREW FOR LINER SUPPORT ASSEMBLY FOR MP 12T-1600, PN:70390135 | |
| 26 | STUD BOLT FOR MP 12T 1600 Fluid end, PN: 01917374. | |
| 27 | NUT FOR STUD BOLT MP 12T-1600 Fluid end, PN:01917381 | |
| 28 | STUD for VALVE THREADED RING FOR MP 12T-1600 Fluid end, PN : 01917375 | |
| 29 | NUT for VALVE THREADED RING STUD FOR MP 12T-1600 Fluid end, PN. 01917378, | |
| 30 | STUD BOLT FOR Fluid end FOR MP 12T-1600, PN:01917376 | |
| 2- Spare Parts For Mud Pump 12T-1600HP, 9T-1000HP | ||
| 31 | Piston Complete 6 1/2'' FOR 12T-1600, 9T-1000, 9T-800, 7TS-600, PN: 01912149 |
|
| 32 | Piston Complete 6" FOR 12T-1600, 9T-1000, ST-800, 7T5-600, PN:01912163 |
|
| 33 | Piston Complete 5 1/2" For 12T-1600, 9T-1000, 9T-800, 7TS-500 ,PN:01912154 |
|
| 34 | Valve Seat (API 7'') FULL OPEN FOR 12T-1600, 9T-1000, 9T-800, PN:40390798 |
|
| 35 | Valve Complete (API 7'') FULL OPEN FOR 12T-1600, 9T-1000, 9T-800 PN : 40390797 |
|
| 36 | Expandable Sector Kit For 12T-1600, 9T-1000, 9T-800, P/N : 01913307 |
|
| 37 | Valve Guide Flange For 12T-1600, 9T-1000, 9T-800, P/N : 01913317 |
|
| 38 | Nut of Expandable Pin for 12T-1600, 9T-1000, 9T-800, P/N : 01913319 |
|
| 39 | Plain Washer for Manifold Suction of Fluid End 12T-1600, 9T-1000, 9T-800, P/N : 70900005 . |
|
| 40 | Support For Pulsation Damper 12T-1600, 9T-1000, 9T-800, P/N : 01913299 |
|
| 41 | NUT FOR BOLT FOR MP 12T-1600, 9T-1000, 9T-800 Fluid end, PN:01913318 |
|
| 42 | Cylindrical pin, FOR MP 12T-1600, 97-1000, 9T-800, PN 71142010. |
|
| 43 | Hydraulic Jack for valve seat puller for mud pump 127-1600, 9T-1000, 9T-800, PN:V1913133 |
|
| 44 | Plate for valve seat puller for mud pump 12T-1600, 9T-1000, 9T-800, PN 01917433 |
|
| 45 | Valve for Hydraulic Jack for valve seat puller for mud pump 12T-1600, 9T-1000, 9T-800, PN 09400063 |
|
| 46 | Extractor Head for valve seat puiter for mud pump 12T-160D, 97-1000, 9T-800, PN01913385 |
|
| 47 | Tie Rod for valve seat puller for mud pump 12T-1600, 9T-1000, 9T-800, PN 01913388 |
|
| 48 | Nut for for valve seat puller Tie Rod for mud pump 12T-1600, 9T-1000, 9T-800 PN 01910767 |
|
| 49 | Ring for valve seat puller for mud pump 12T-1600, 9T-1000, 9T-800, PN 01913386 |
|
| 50 | Screw for valve seat puller Ring for mud pump 12T-1600, 9T-1000, 9T-800 PN 01913387 |
|
| 51 | Washer for valve seat puller for mud pump 12T-1600, 9T-1000, 9T-800, PN 01913390 |
|
| 52 | TROLLEY FOR JIB-CRANE FOR MP 12T-1600, 9T-1000, 9T-800, PN 41040031 |
|
| 3- Spare Parts For Mud Pump 9T-1000HP | ||
| 53 | Liner 5 1/2'' For 9T-1000, 9T-BDO, 7TS-600 , PN: 01913288 | |
| 54 | Fluid End SUCTION MODULE FOR MP 9T-1000, 9T-800, PN 01913274 | |
| 55 | Fluid End DELIVERY MODULE FOR MP 9T-1000, 9-300, PN 01913275 | |
| 56 | GASKET BETWEEN SUCTION & DELIVERY FLUID END MODULE FOR MP 9T-1000, 9T-800 | |
| 57 | Clamp for piston rod, 9T-1000, 9T-800, PN:01913266 | |
| 58 | pony rod, 9T-1000, 9T-800, PN: 01913267 | |
| 59 | piston rod, 9T-1000, 9T-800, PN:01913298. | |
| 60 | SCREW for piston red clamp for MP 9T-1000, 9T-800, PN 70390102 | |
| 61 | Valve Cover for 9T-1000, 9T-800 Fluid End, P/N: 01913304 | |
| 62 | Delivery Block "CROSS PRESSURE LINE MANIFOLD" FOR MP 9T-1000, 9T-800, 7TS-600 | |
| 63 | STUD BOLT MP Fluid end for 9T-1000, 9T-800, P/N : 01913310 | |
| 64 | Anchor' 2-HALF TIE LINER COLLAR, 9T-1000, 9T-800, P/N : 01913277 | |
| 65 | HINGE FOR 2-HALF TIE LINERCOLLAR, 9T-1000, 9T-800, P/N : 01913278 | |
| 66 | Stud for LINER HOLDER, 9T-1000, 9T-800, P/N: 01913311 | |
| 67 | STUD BOLT TO CONNECT FLUID END WITH MP BODY FOR 9T-1000, 9T-800, PN:01913321 | |
| 68 | STUD BOLT FOR VALVE THREAD RING, 9T-100D, 9T-800, P/N : 01913322 | |
| 69 | NUT FOR LINER HOLDER STUD FOR MP 9T-1000, 9T-800, PN : 70720012 | |
| 70 | O-Ring Far Manifold Suction of Fluid End 9T-1000, 9T-800, P/N : 52108450 | |
| 71 | DISCHARGE D.RING , O-Ring For Manifold Suction of Fluid End 9T-1000, 9T-800, P/N : 521 | |
| 72 | Nut for Delivery Manifold of Fluid End 9T-1000, 9T-800, 7TS-600, P/N: 70760006 | |
| 73 | Stud For Delivery Manifold Of Fluid End 9T-1000, 9T-800, 7TS-600, P/N : 01910855 | |
| 74 | Flange For Manifold DISCHARGE Of Fluid End 9T-1000, 9T-800, P/N : 01913396 . | |
| 75 | LINER 5'' FOR MP 9T- 1000, 9T-800, 7TS-600, PN: 01913503, | |
| 76 | SCREW FOR LINE HOLDER FOR MP 9T-1000, 9T-800, PN:01913320. | |
| 77 | BLIND FLANGE FOR DISCHARGE LINE FOR MP 9T-1000, 9T-800, PN:50960048. | |
| 78 | SCREW FOR FLUID END DISCHARGE LINE (ALLENKEY BOLT) FOR MP 9T- 1000, 9T-800 | |
| 79 | PULSATION DAMPER BODY FOR MP 9T-100D, 9T-800 PN : RI40390795-01 | |
| 80 | TOP FLANGE FOR PULSATION DAMPER FOR MP 9T-1000, 9T-800 PN: RI40390795-02 | |
| 81 | BOTTOM FLANGE FOR PULSATION DAMPER FOR MP 9T-1000, 9T-800 PN: R/40390795-0 | |
| 82 | STUD BOLT FOR BOTTOM FLANGE FOR PULSATION DAMPER FOR MP 9T-1000, 9T-800 | |
| 83 | SECREW (ALLENKEY BOLT) FOR BOTTOM FLANGE FOR PULSATION DAMPER FOR MP 9T- 1000, 9T-800 RI40390795-08 | |
| 84 | SECREW (ALLENKEY BOLT) FOR TOP FLANGE FOR PULSATION DAMPER FOR MP 9T- 1000, 9T-800 RI40390795-09 | |
