Product Details:
|
| Product Name: | Lead Impression Block | Material: | Stainless Steel, Steel |
|---|---|---|---|
| Max. O.D (mm): | 121-206 | Total Length: | 365-420 |
| Min.Bore: | 30 | Weight: | 45 KG |
| Connection Threads: | NC,EU | Machine Type: | Fishing Tools |
| High Light: | Fishing Downhole Wireline Tools,PQY Lead Impression Block,Downhole Lead Impression Block |
||
PQY Type Lead Impression Block Downhole Wireline Tools Fishing Tools
Lead Impression Block Description of Downhole Drilling Tools

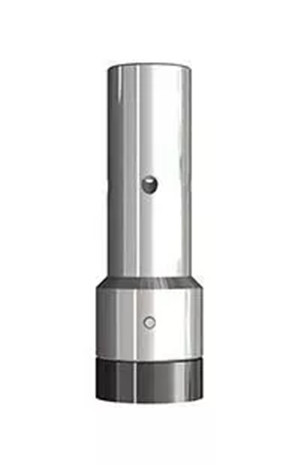

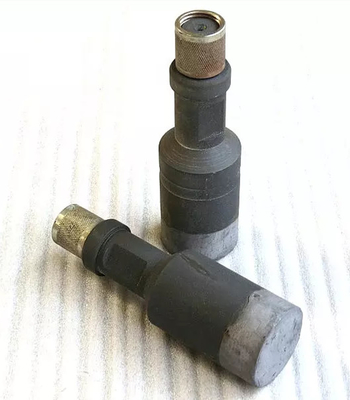

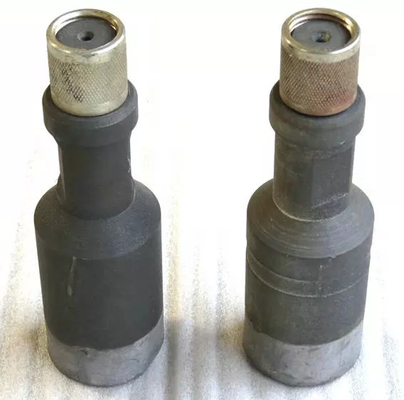

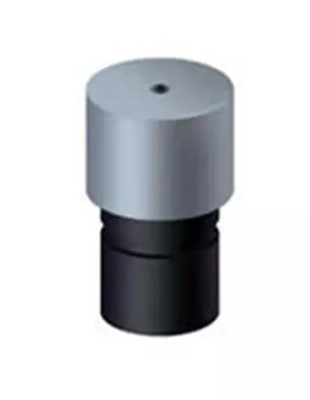

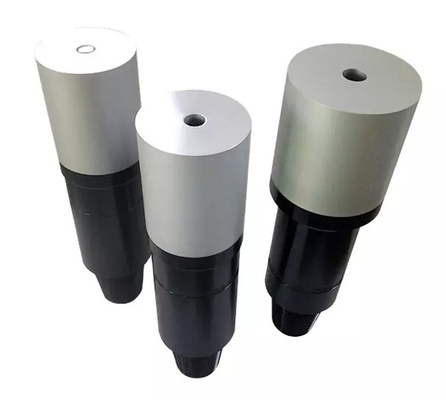

Lead Impression Block consists of a lead filled hollow steel housing,exposed at one end to enable impressions to be made in the soft lead face.
Impression Block is an accessory tool used to accurately determine the dimensions and configuration of the upper end of a fish as well as to check its condition and position in the well bore.

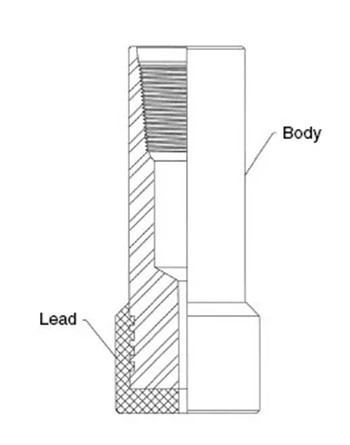

Impression block is made of joint steel body and Pb rooted in bottom of joint steel body,there is a circle hole in center of impression block to circle drill fluid. there is ring groove on the casting part of joint so that fixing impression block, joint connects with pipe string with its upper connection thread.
Lead Impression Blocks are used during fishing operations to check the shape / size of the top of fish and to determine tool appropriate for fishing operation. Lead is filled within body of Impression Block and a pin is fixed thru body of impression block and leadto stabilize lead within body.
Lead Impression Block Datasheet of Downhole Drilling Tools
| Model | COnn. | OD mm(inch) | ID mm(inch) | OAL mm(inch) |
| PQY406 | 7 5/8REG | 406(16) | 35(1 3/8) | 483(19) |
| PQY206 | NC50 | 206(8 1/8) | 30(1 3/16) | 420(16 35/64) |
| PQY168 | NC50 | 168(6 5/8) | 30(1 3/16) | 400(15 3/4) |
| PQY130 | NC38 | 130(5 1/8) | 20(25/32) | 380(14 31/32) |
| PQY127 | 3 1/2REG | 125(5) | 20(25/32) | 380(14 31/32) |
| PQY105 | 2 3/8REG | 105(4 1/8) | 15(19/32) | 360(14 11/64) |
| Size Range | Fishneck O.D. | Top Connection |
| 1.25''~1.5'' | 1.187'' | 15/16UN |
| 1.5''~2.0'' | 1.375'' | 15/16UN |
| 2.0''~2.5'' | 1.375'' | 15/16UN |
| 2.5''~3.0'' | 1.75'' | 1-1/16UN |
| 3.0''~4.0'' | 2.313'' | 1-1/16UN |
| 4.0''~5.0'' | 2.313'' | 1-1/16UN |
| 5.0''~6.0'' | 3.125'' | 1-9/16UN |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
