Product Details:
|
| Product Name: | Circulating Sub | Material: | Carbon Steel |
|---|---|---|---|
| Length Of Sub: | 500~650mm | Thread Of Drill Pipe Box Connection: | NC50 / NC80 |
| Size: | 4''-20'' | Connection: | Casing, Drilling Threaded |
| Machine Type: | Drilling Tool | Color: | Blue |
| High Light: | Downhole Drilling Side Entry Sub,Circulating Side Entry Sub Drilling,Casing Thread Downhole Drilling Tools |
||

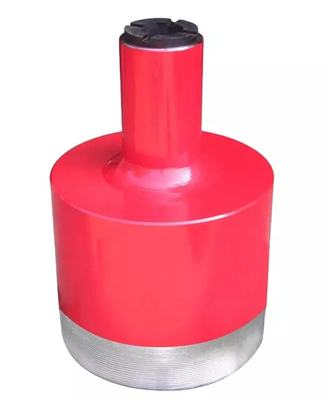

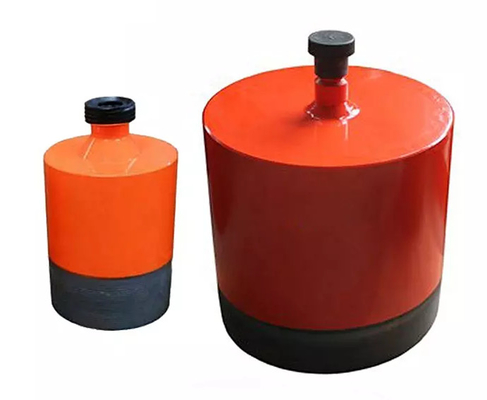

Casing Thread Circulating Sub Downhole Drilling Tools Integral Union Side Entry Sub
Circulating Sub Description of Downhole Drilling Tools
Circulating sub is connected between wellhead pipe string and ground circulating system. When casing is running or finished running, the circulating sub is connected to make fluid circulation. According to the application, the circulating sub is connected between Kelly and casing or between casing and hose. The former is used for fluid circulation during connecting of casing. The later generally is used after connecting of casing . The circulating sub produced in Topland belongs to the former.
The circulating sub during running casing is equipped with casing pin thread on one end or DP thread and DP box thread or union thread on other end.

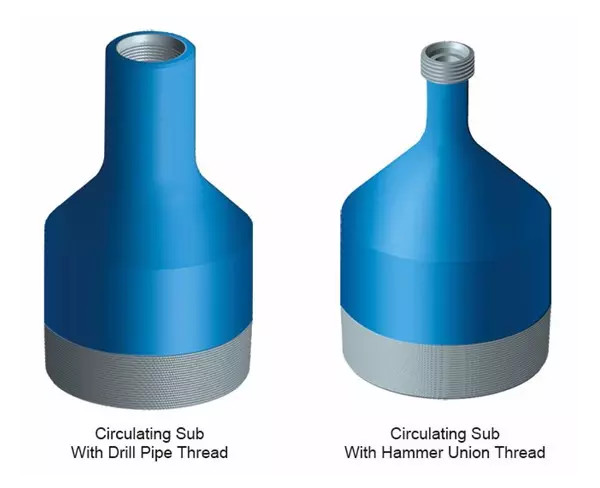

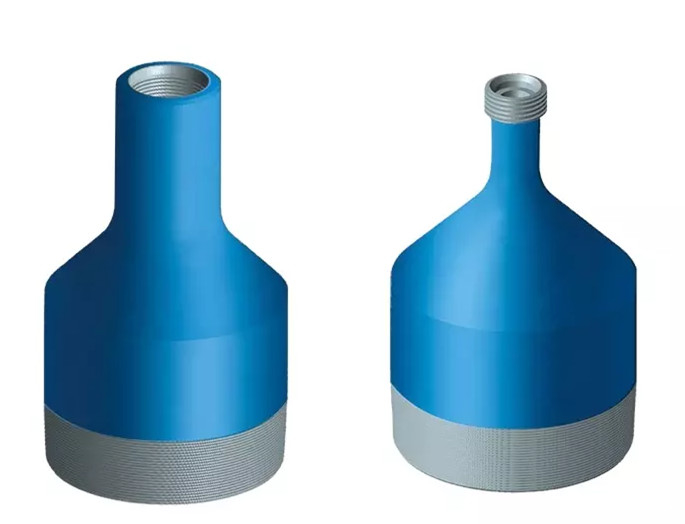

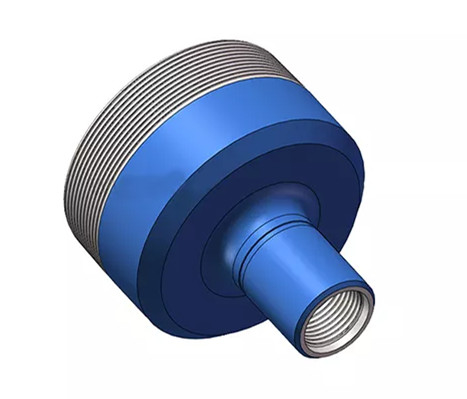

Circulating Sub with Drill pipe thread
| Thread / Model | I.D (mm) |
Length (mm) |
||
| Drill pipe box connection | Casing thread | Product code | ||
| NC38 | 5 BTC | J030701 | 57 | 580 |
| 5 LTC | J030702 | |||
| 5 STC | J030703 | |||
| NC38 | 5 1/2 BTC | J030801 | 57 | 580 |
| 5 1/2 LTC | J030802 | |||
| 5 1/2 STC | J030803 | |||
| NC50 | 7 BTC | J031201 | 71 | 610 |
| 7 LTC | J031202 | |||
| 7 STC | J031203 | |||
| NC50 | 9 5/8 BTC | J031801 | 71 | 610 |
| 9 5/8 LTC | J031802 | |||
| 9 5/8 STC | J031803 | |||
| NC50 | 10 3/4 BTC | J0301901 | 71 | 610 |
| 10 3/4 STC | J0301902 | |||
| NC50 | 13 3/8 BTC | J032001 | 71 | 650 |
| 13 3/8 STC | J032002 | |||

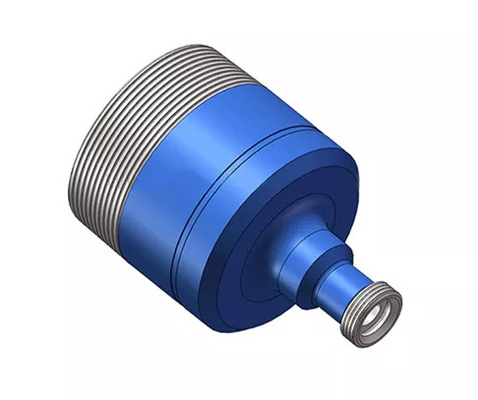

Circulating Sub with Hammer Union thread
| Thread / Model | I.D (mm) |
Length (mm) |
||
| Drill pipe box connection | Casing thread | Product code | ||
| 2" 1502 Union | 5 BTC | J040701 | 50.8 | 500 |
| 2" 1502 Union | 5 1/2 BTC | J040801 | 50.8 | 500 |
| 2" 1502 Union | 7 BTC | J041201 | 50.8 | 500 |
| 7 LTC | J041202 | |||
| 2" 1502 Union | 9 5/8 BTC | J041801 | 500 | |
| 9 5/8 LTC | J041802 | |||
| 2" 1502 Union | 10 3/4 BTC | J0401901 | 50.8 | 560 |
| 10 3/4 STC | J0401902 | |||
| 2" 1502 Union | 13 3/8 BTC | J042001 | 610 | |
| 13 3/8 STC | J042002 | |||
