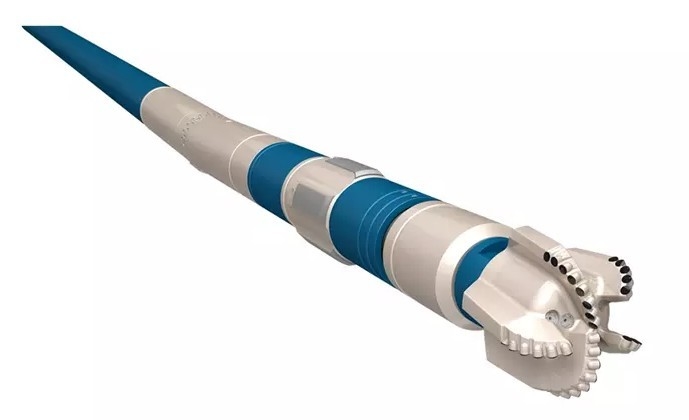

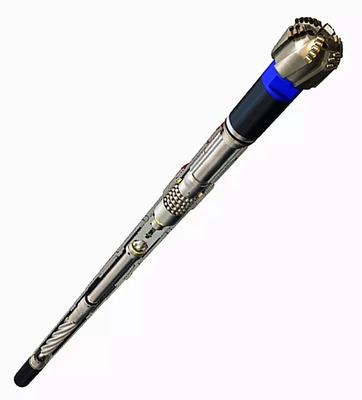

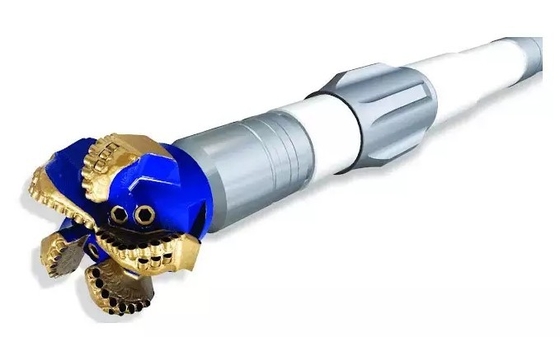

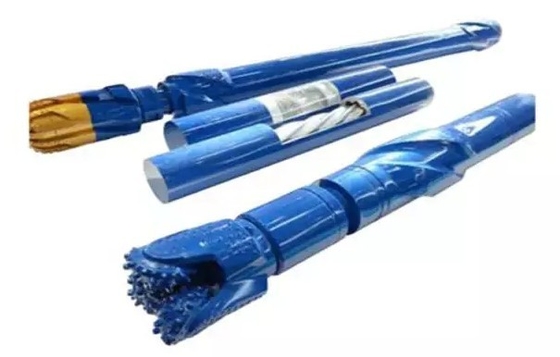

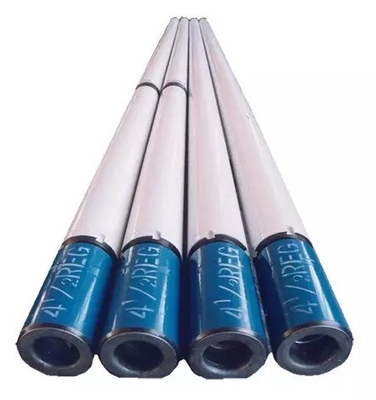

HDD Downhole Drilling Tools API 7 - 1 LZ Series Blue Mud Motor

API 7-1 HDD Downhole Drilling Motor LZ Series Downhole Mud Motors 6 3/4 Inch

Downhole Mud Motor Description of Downhole Drilling Tools:

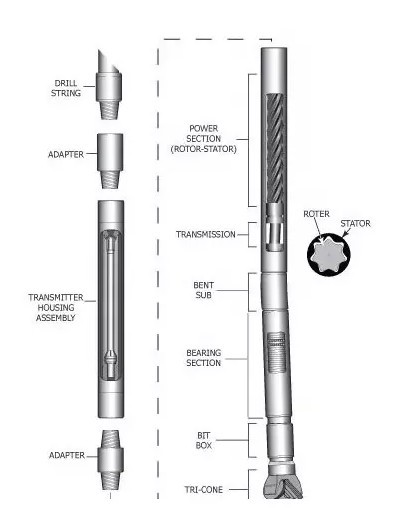

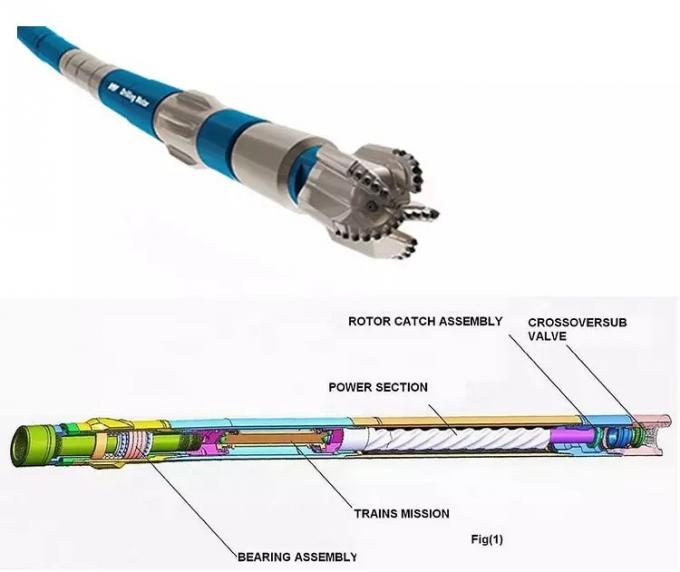

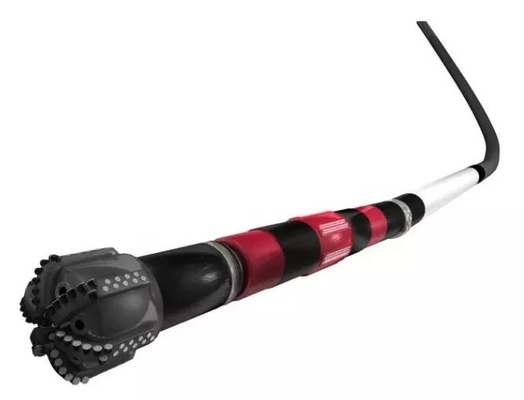

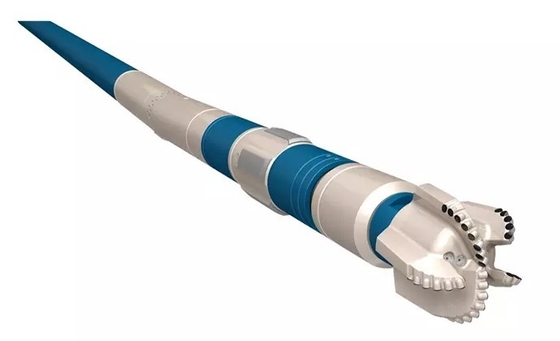

API Drilling Downhole Drilling Mud Motor is a kind of downhole drilling tool powered by mud. The mud from mud pump enters motor by way of bypass valve, and a pressure drop between motor inlet and outlet created, such pressure drop will drive the motor rotator to rotate, and transmit the torque and rotary speed to bit by universal shaft and transmission shaft. The downhole motor property mainly depends upon its property parameters. This product uses the high and new technology of coating to avoid coating off of rotors resulted from the traditional technology. Its strength and life are greatly improved. It is applicable to Horizontal Directional Drilling, composite drilling, cluster wells, sidetrack wells and well workover, Coiled Tubing Operation, etc. downhole drilling motor

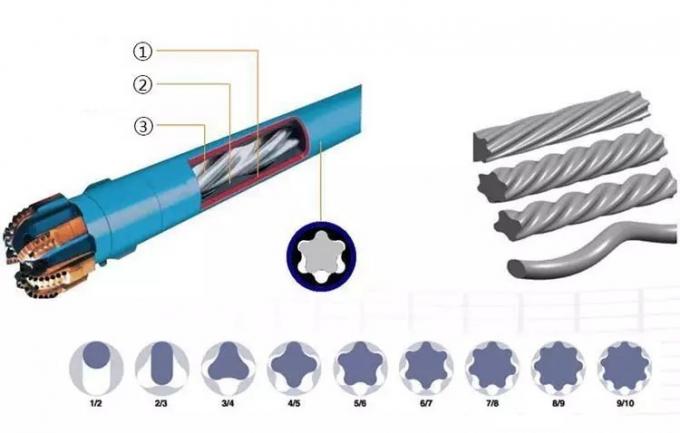

Downhole motor is a type of positive- displacement downhole motor(PDM). After high pressure drilling fluid enters into downhole motor from drill stem, fluid pressure forces rotor to rotate that transfers torque to bit to achieve drilling purpose.

Various downhole motor assemblies for well size 1 7/8"~26" with 24 main dimension specifications (which are identified by outer diameter of stator) : 1-11/16", 2-1/8", 2-3/8", 2-7/8", 3-1/8", 3-1/2", 3-3/4", 4", 4-1/8", 4-3/4", 5", 5-1/4", 5-7/8", 6-1/4", 6-1/2", 6-3/4", 7-1/4", 7-3/4", 8", 8-1/4", 8-1/2", 9", 9-5/8", 11-1/4".

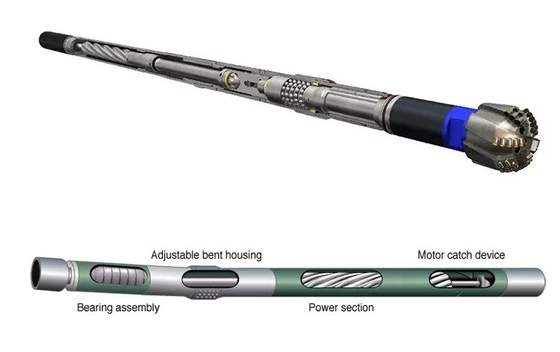

Structure form includes straight, single bend, double bend, angle adjustable and so on. Heat-resistant temperature range consist of 250°F (120℃) or less than 250℉ (120℃), and between 250 ℉(120℃) to 355℉ (180℃). We can also provide all specifications including Oil based mud resistant motor and saturated saltwater mud resistant motor.

Outstanding Features

Various rotation rate and torque, high efficiency, wide flow range, smooth operation, easy maintenance, high reliability, long service life.

Safe Application

Adequate strength and specially designed multiple falling-off-proof devices to ensure safe drilling operation.

Downhole Mud Motor Datasheet of Downhole Drilling Tools

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
