Product Details:
|
| Type: | Ceramic/ Bi-metal Type Liner | Dimension: | 207*106*54mm |
|---|---|---|---|
| Usage: | Sany Heavy Industry Concrete Pump Truck | Color: | Black |
| Weight: | 1.23kg | Material: | Rubber |
| Core Components: | Pump | Shape: | Circular |
| High Light: | Rubber Piston Bi metal Type Liner,3NB Series Bi metal Type Liner,Mud Pump Rubber Piston Spare Parts |
||

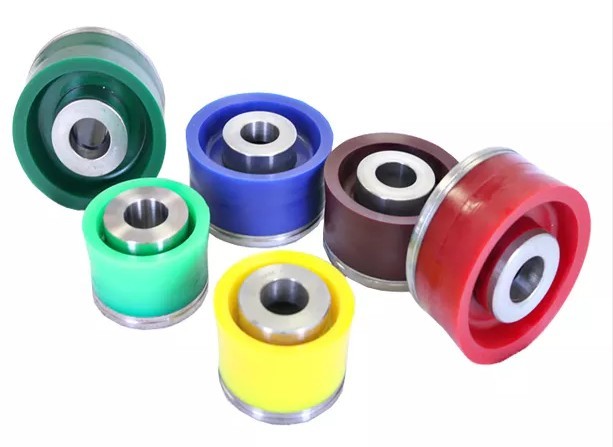

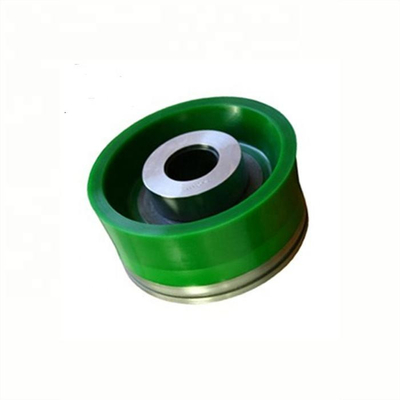

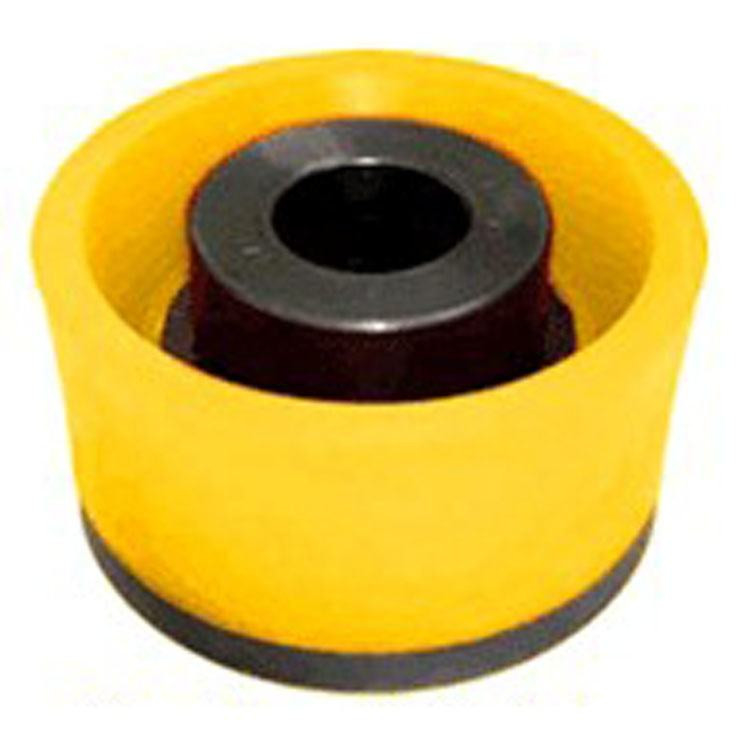

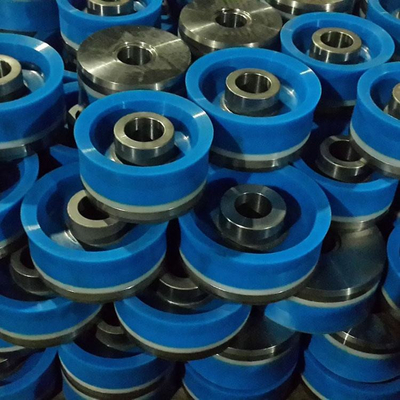

BOMCO/EMSCO/Garden Denver Mud Pump Spare Parts Replacement Rubber Piston Assembly
Rubber Piston description of Mud Pump Spare Parts
We supply mud pump spare parts like mud pump liner( including zirconia ceramic liner and high chrome bi-metal liner), mono-metal Liner, fluid end module, valve and seats, piston, piston rod, pony rod etc. parts for mud pump, we can also customize and machine as your drawing.
Piston assembly is one of the fragile components which are used the most. the use of the piston will reduce the number of replacement of piston so as to extend the service life of the piston rod.
Piston and piston rod are made of high hardness alloy steel,and they are wear-resistant , anti-corrosive and anti-distortion after heat treatment.
The piston core is made of 42CrMo. Nitrile butadiene rubber, polyurethane rubber or special rubber can be used to make piston rubber.
We can provide the piston for F series,3NB series and other type of mud pump.
Material:The piston assembly is constituted by the piston core, rubber, spring, clamp, etc.
Pistoncore is made of 42CrMo and the piston rubber is made of nitrile rubber or polyurethane rubber.
Application:Piston assembly is the major part of the mud pump fluid end. The discharge pressure of mud pump is generated by the up-and-down motion of the piston in the cylinder. Small piston—high pressure and low flow rate; Big piston—low pressure and high flow rate. Metric pump and inch pump adopts metric piston and inch piston respectively.
Key Features Include:
1.Excellent liner wear characteristics
2. Maximum working temperature up to 180°F
3.High resistance to chemical breakdown, tearing and abrasion
4. Recommended for use in oil-based drilling mud but can also be used in water-based
| BOMCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | F-1600L | F-2200HL |
| Hong Hua | HHF-500 | HHF-800 | HHF-1300 | HHF-1600 | 3NB-1600F | 5NB-1600 | 5NB-2400 | |
| EMSCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | FD-1000 | FC-2200 | FB-1300 |
| Gardner Denver | PAH | P7 | P8/9 | P10/11 | PXL | PX-11 | PZL | PY-FXD |
| National | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-200 | 14-P-220 | N-1000/1300 |
| Oilwell | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||||
| TSC | WF-500 | WF-800 | WF-1000 | WF-1300 | WF-1600 | WF-2000 | WF-2200 | |
| IDECO | T-500 | T-800 | T-1000 | T-1300 | T-1600 |
Related Products
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
