Product Details:
|
| Product Name: | Ceramic Plunger | Material: | Alumina Ceramic |
|---|---|---|---|
| Power: | Hydraulic | Condiction: | New |
| Usage: | Oil | Application: | Oilfield, Sewage, Submersible |
| Feature: | High Temperature Resistance | Max Working Temprature: | 1500℃-1800℃ |
| High Light: | Piston Alumina Ceramic Plunger,Mud Pump Ceramic Plunger,High Pressure Mud Alumina Ceramic Plunger |
||

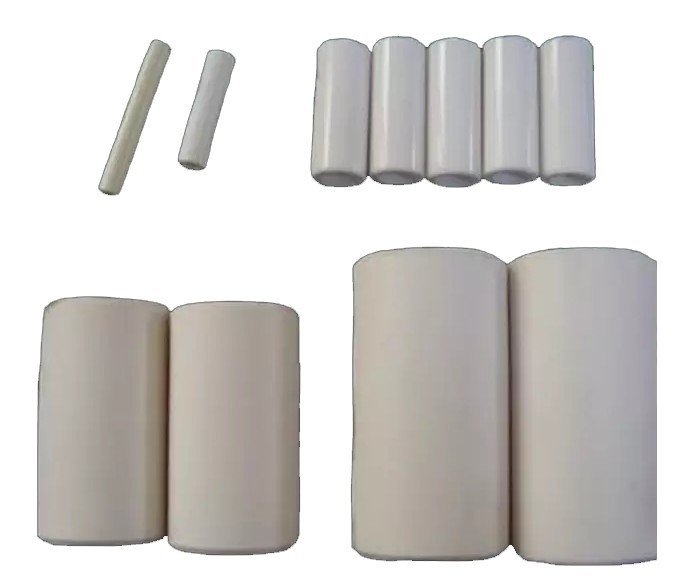

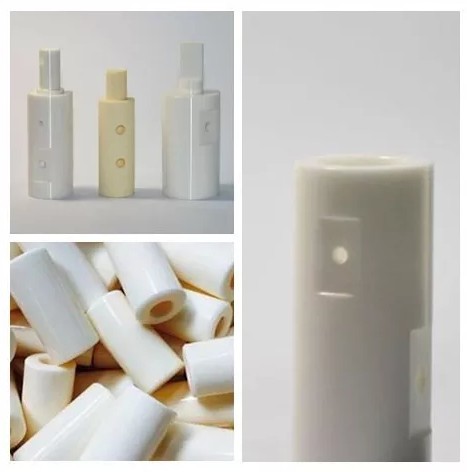

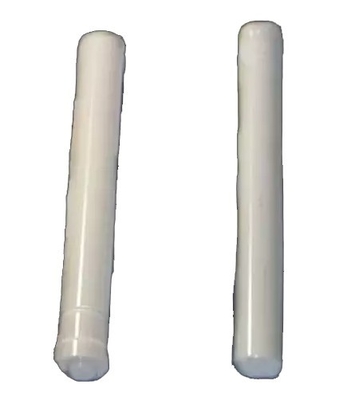

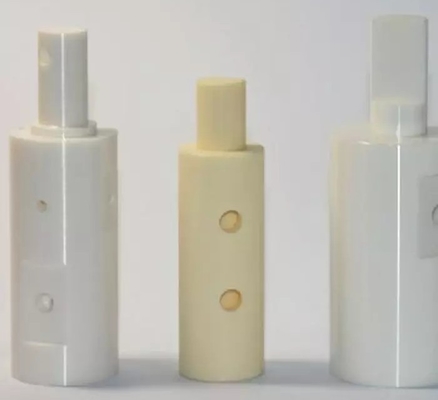

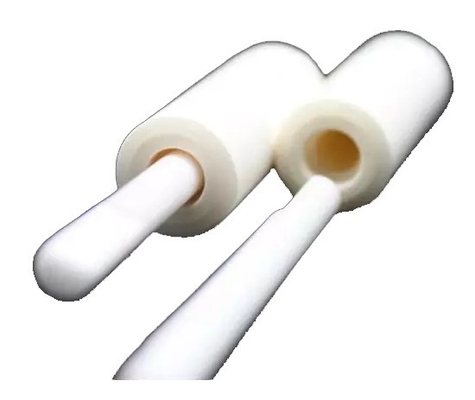

High Pressure Mud Plunger Pump Spare Part Piston Alumina Ceramic Plunger
Topland supplies all types of oil drilling equipment like ZJ30, ZJ40, ZJ50, ZJ70, ZJ90 and rig parts: Mud pump, Hook, Rotary Table, Swivel, Crown block, Travelling Block, iron roughneck, etc. Our products have certificated by international institutions, API and ISO, GOST. the quality is guaranteed. We always stick to the principle of ensuring quality and servicing customers.
Ceramic Plunger Description of Mud Pump Spare Parts

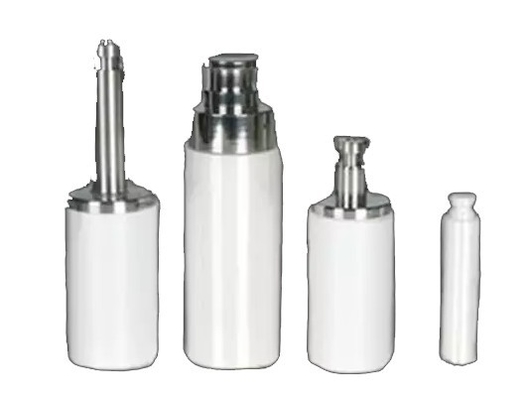

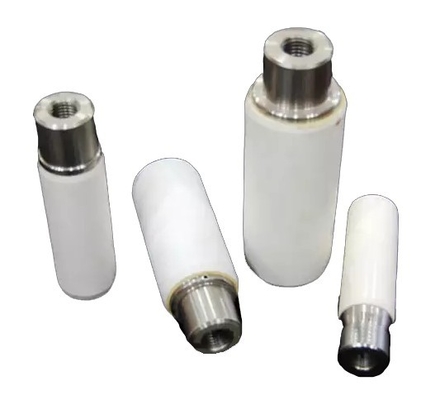

Ceramic plunger is made of our three new developed ceramic material series and is assembled by ceramic metallization bonding,welding,inlay and socket technology.It can be used for a wide range of pressure.For example,it can apply to high pressure reciprocating pump and fracturing pump whose pressure is above 100Mpa.
Plunger Pump: SPM2250/2500, HT400, TWS 600, TWS 1000, OFM Etc
Ceramic Plunger Datasheet of Mud Pump Spare Parts
| Material | Unit | Steatite ceramics | 95% alumina ceramics | 99.5% alumina ceramics |
| Density | G/cm3 | 2.7 | 3.65 | 3.85 |
| Highest application temperature | ℃ | 1100 | 1500 | 1800 |
| Bending strength | Mpa | 150 | 300 | 340 |
| Compressive strength | Mpa | 900 | 3400 | 3600 |
| Hardness | HV0.5 | 800 | 1800 | 2000 |
| Insulation breakdown strength | KV/mm | 10 | 15 | 18 |
| Processing technology | ||||
| Process range (mm) | ||||
| Outside Diameter | 1---300 | |||
| Inside Diameter | 0.5---300 | |||
| Length | 0.5---1200 | |||
| Accuracy of working(mm) | ||||
| Perpendicularity | 0.01 | |||
| Concentricity | 0.01 | |||
| Roundness | 0.005 | |||
| Straightness | 0.005 | |||
| Parallelism | 0.01 | |||
| Planeness | 0.005 | |||
| Roughness | 0.05 | |||
| Fit clearance | 0.005 | |||
Extremely high hardness,wear resistance,corrosion resistance,high pressure resistance and thermal shock resistance.

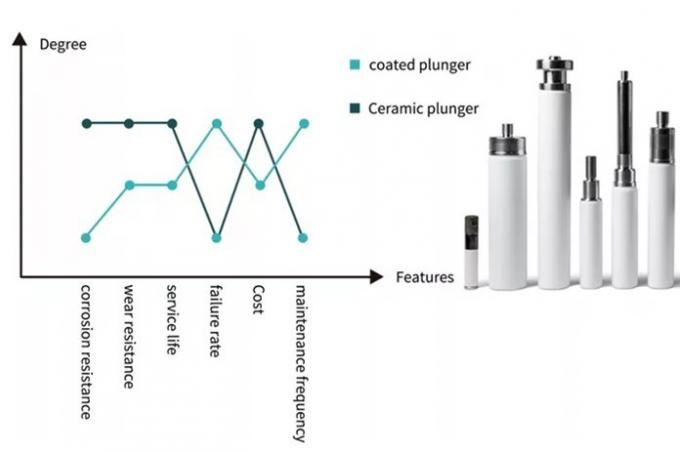

Its service life is 5-10 times than that of commom coated plunger.
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-4. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
