Product Details:
|
| Product Name: | Sucker Rod Elevator | Machine Type: | Drilling Tool |
|---|---|---|---|
| Processing Type: | Forging | Material: | Alloy Steel; Carbon Steel |
| Usage: | Wellhead Equipment | Application: | Oil Field |
| Color: | Red | Size: | 1/2"-1/12" |
| Rated Capacity: | 20/25T | Standard: | API 8A/8C |
| High Light: | SRE20 Tubular Handling Tool,25 Sucker Rod Elevator Drilling Tool,Carbon steel Sucker Rod Elevator |
||
SRE20 Tubular Handling Tool To 25 Sucker Rod Elevator Drilling Carbon Steel

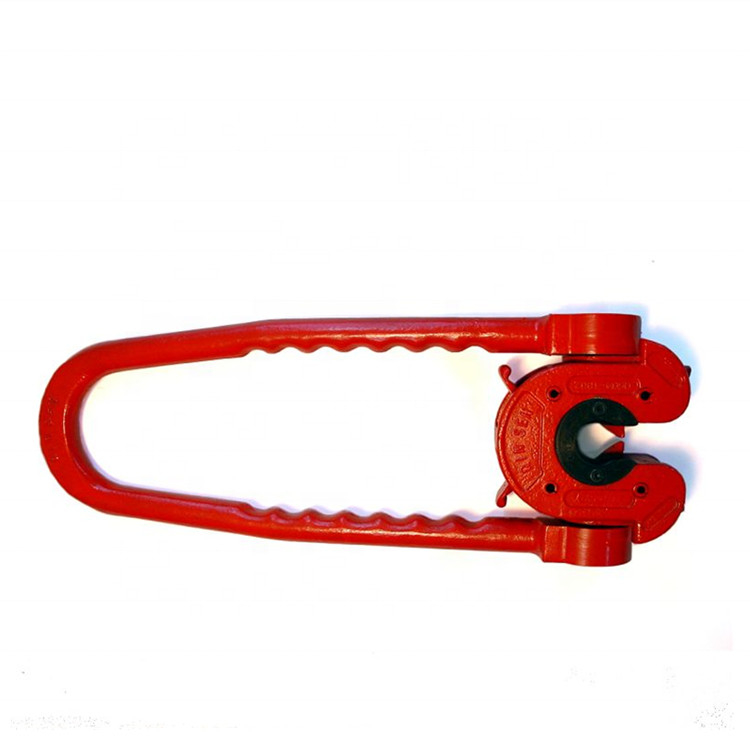

Description of Sucker Rod Elevator

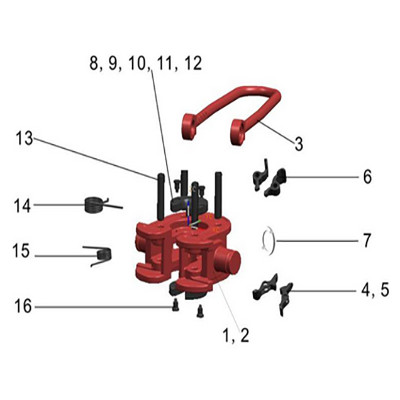

Sucker rod elevator is composed of elevator body and rod plates, which allow quick convert ion of the elevator body to various rod or pipe size. Additional saving is realized because work plates can be replaced instead of replacing the entire elevator. The basic elevator design provides excellent balance and non-tilt performance. Large access to the front and rear release levers assures easy, safe latching and unlatching. They are designed and manufactured according to API Spec 8C PSL1-specification for drilling and production Hoisting Equipment.

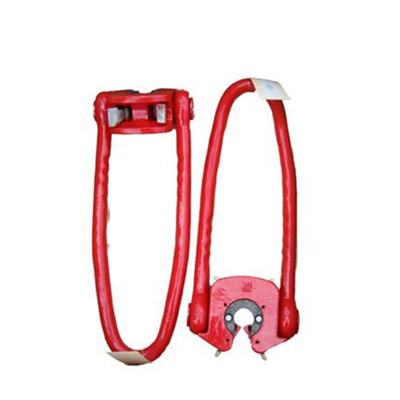

SRE Sucker Rod Elevator for oil field
SRE sucker rod elevators are suitable for each size sucker rod in well repairing.
1.It can be adjusted by changing the spacer on the body.
2.The elevators are designed and manufactured according to API Spec 8A-/8CSpecification for Drilling and Production Hoisting Equipment.
Tubular Handling Tools Feature:
1. Model: SRE20, SRE25
2. sucker rod elevators are hoisting tools for handling sucker rods
3. rated capacity:20tons, 25tons
4. applicable diameter of tubulars: 1/2~11/2 inch
5. Standard: API 8A/8C
| Rod size |
Dia of Bore (mm) |
Max load (kN) |
Weight (kg) |
| 1/2-5/8 | 19 | 200 | 12 |
| 5/8 - 3/4 | 23 | ||
| 3/4 - 7/8 | 26 | ||
| 1 | 30 | ||
| 1.1/8 | 32 | ||
| 1.1/4 | 35 | ||
| 5/8 - 3/4 | 23 | 25 | 17 |
| 3/4 - 7/8 | 26 | ||
| 7/8-1 | 30 |
| Specification | Rating Load KN(t) |
Specification of Suck Rod(in) |
| SRE20 | 20Tons (180KN) | 1/2”-5/8”,5/8”-3/4”,3/4”-7/8”,1”,1-1/8”,1-1/4”,1-1/2” |
| SRE25 | 25Tons (225KN) | 5/8”-3/4”,3/4”-7/8”,1” |
