Product Details:
|
| Product Name: | F-500/800/1000/1600/1600HL Crosshead Bearing | Key Words: | Crosshead Bearing |
|---|---|---|---|
| Type: | Roller | Number Of Row: | Double Row |
| Precision Rating: | P0 P6 P5 P4 P2 | Material: | Chrome Steel, Stainless Steel |
| Structure: | Cylindrical | Dimention: | 177.8*224.475*161.925mm |
| Seal Type: | OPEN ZZ 2RS RS | Application: | Drilling Mud Pump |
| High Light: | Mud Pumps Oilfield Bearings F500,Mud Pumps Oilfield Crosshead Bearing,1600 HL Mud Pumps Oilfield Bearing |
||

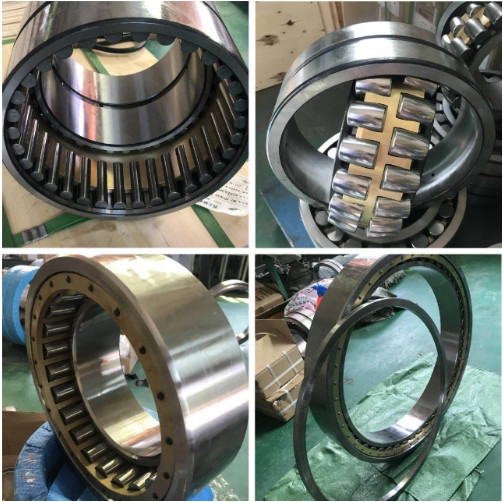

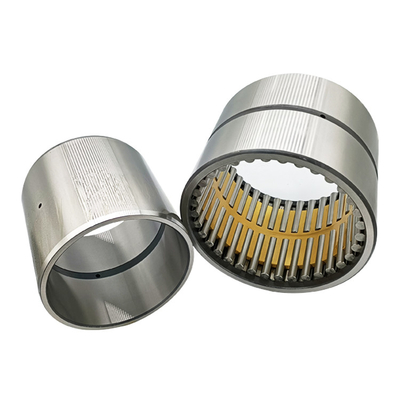

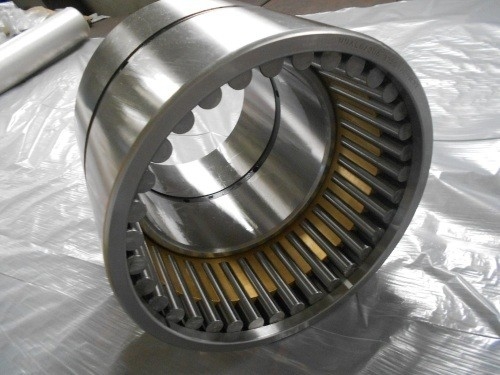

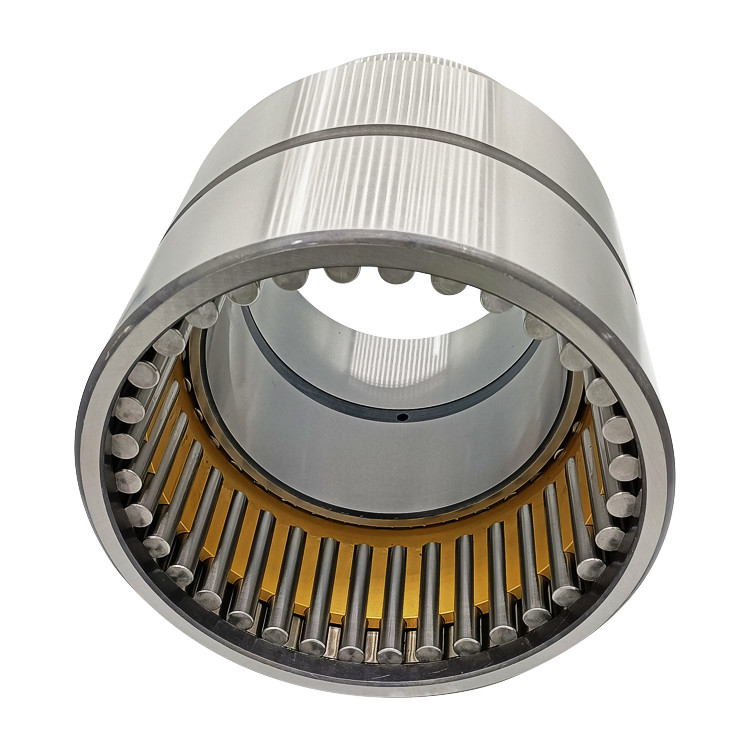

Mud Pumps Oilfield Bearings F500 -F1600 / 1600HL Crosshead Bearing For Mud Pump
The machinery bearing of professional supporting petroleum drilling ,the detailed type as following:
Mainly used in mud pump such as Eccentric Bearing ,Main Bearing ,Cross Head Bearing,Pinion Shaft Bearing;
Mainly mud pump model type: F1600, F-1300, F-1000, F-800, F-500, 3NB-500C, 3NB-800C, 3NB-1000C, 3NB1300C, 3NB-1600,F-1600L ,F1600HL, F-2200HL etc.
Rotary table bearing: ZP175,ZP205,ZP275,ZP375 etc;
Hook bearing: DG135, DG225, DG315 etc;
Traveling Block Bearing: YC135, YC250, YC350 ,YC450 etc.
| MUD PUMP F-500 | ||||
| Bearing | Old bearing number | New bearing number | Weight (kg) | Size d*D*B(mm) |
| Pinion bearing | 32828 | NU3228X2M | 18.7 | 140*250*82.55 |
| Main bearing | 3053738H | 23138CA/W33 | 34.4 | 190*320*104 |
| Eccentric bearing | 92984QU | NUP464779Q4/C9YA4 | 55.8 | 419.1*558.8*76.2 |
| Crosshead bearing | 354920Q | NNAL6/101.6Q4/W33XYA2 | 13.5 | 101.6*171.45*133.35 |
| MUD PUMP F-800 | ||||
| Pinion bearing | 32836 | NU3036X2M | 20 | 180*280*82.6 |
| Main bearing | 3053748H | 23148CA/W33 | 65.7 | 240*400*128 |
| Eccentric bearing | 928/508QU | NUP464779Q4/C9YA4 | 55.8 | 419.1*558.8*76.2 |
| Crosshead bearing | 254735Q | NNAL6/177.8-1Q4/W33XYA2 | 23.6 | 177.8*244.475*161.925 |
| MUD PUMP F-1000 | ||||
| Pinion bearing | 4G32840H | NU3040X3M/C4 | 38.4 | 200*320*88.9 |
| Main bearing | 4053156H | 24056CA/W33 | 69.2 | 280*420*140 |
| Eccentric bearing | 929/558.8QU | NUP464744Q4/C9 | 83.4 | 558.8*685.8*100 |
| Crosshead bearing | 254936Q | NNAL6/177.8Q4/W33XYA | 34.2 | 177.8*257.175*196.85 |
| MUD PUMP F-1300 | ||||
| Pinion bearing | 32844 | NU3044X3M | 38.4 | 220*350*98.4 |
| Main bearing | 4053160H | 24060CA/W33 | 97.6 | 300*460*160 |
| Eccentric bearing | 928/660.4QU | NUP464776Q4/C9/YA4 | 129 | 660.4*812.8*107.95 |
| Crosshead bearing | 254941QU | NNAL6/206.375Q4/W33XYA2 | 44.9 | 206.375*285.75*222.25 |
| MUD PUMP F-1600 | ||||
| Pinion bearing | 32844 | NU3044X3M | 38.4 | 220*350*98.4 |
| Main bearing | 3003760Y | 23160/W33 | 127 | 300*500*160 |
| Eccentric bearing | 929/660.4QU | NUP464777Q4/C9YA4 | 178 | 660.4*863.6*107.95 |
| Crosshead bearing | 254941QU | NNAL6/206.375Q4/W33XYA2 | 44.9 | 206.375*285.75*222.25 |
Topland main products:
1.API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
