Product Details:
|
| Prodcut Name: | Upper Lower Valve Rod Guide | Material: | 20CrMnTi |
|---|---|---|---|
| Lower Guide Way: | ZG35CrMo | Type: | Mud Pump Spare Parts |
| Weight: | 65kg | Usage: | Drilling Mud Pump Valves Assy |
| High Light: | Mud Pump Valve Rod,Oil Drilling Mud Pump Valve Rod,Mud Pump Spare Valve Rod |
||

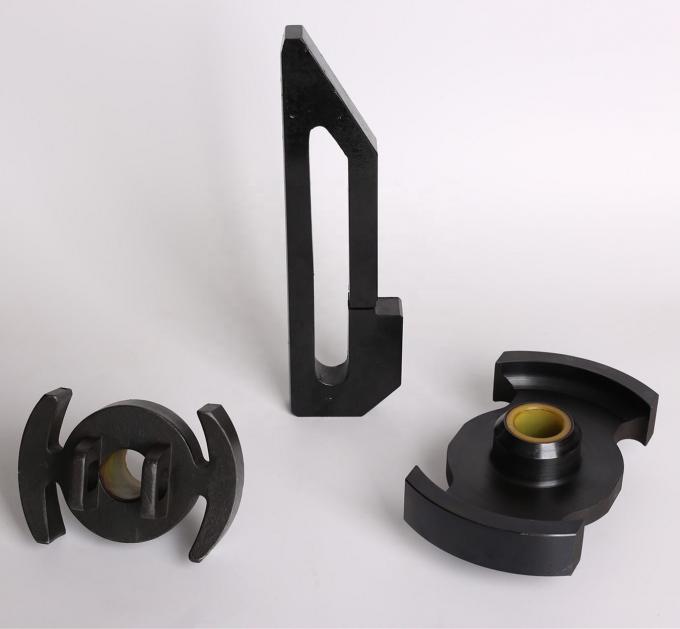

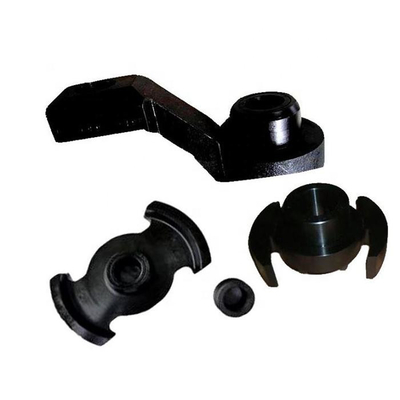

Oil Drilling Mud Pump Valve Rod Guides Upper Lower
Valve Rod Guides descaiption of Mud Pump Spare Parts

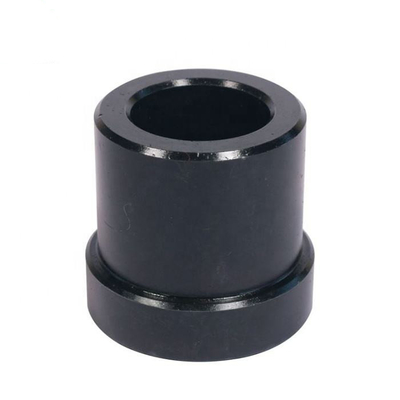

Valve rod guide upper
Guider (upper), also known as the upper guider, is used for centering and positioning the discharge valve body assembly whose material is 20CrMnTi,treated through carburizing and quenching, the HRC is more than 60.
| PUMP TTYPE | Original NO. | ERP NO. | D×H | W/Kg |
| F500 | AH35001-05.12 | AH0501010510 | 57.5×50.8 | 0.5 |
|
F800 F1000 F1300 F1600 |
AH33001-05.12 | AH1001010510 | 57.2×54 |
0.55 |

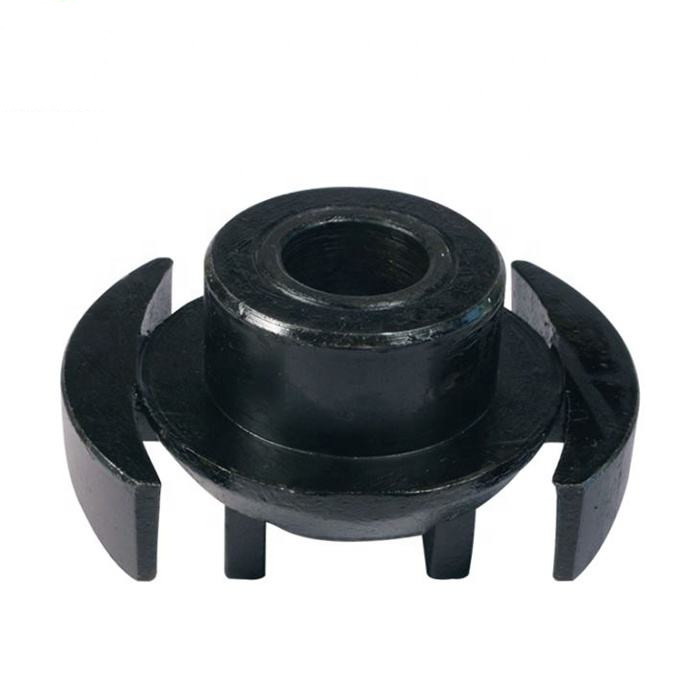

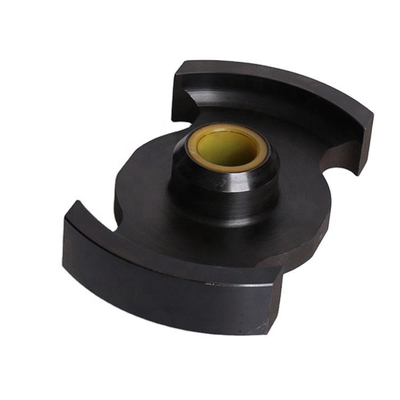

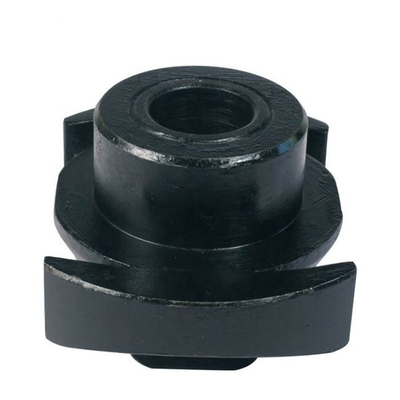

Valve Rod Guides Lower
Guider (lower) is installed in the inner chamber of the hydraulic cylinder ,for centering and positioning the suction valve body assembly.
The guider consists of the guide way and the inner sleeve embedded in the guide way.
The material of the guide way is ZG35CrMo, and the inner sleeve is treated by 20CrMnTi carburization and quenching.
The mud pump valve rod guide (lower), which is installed in the chamber of the cylinder, acts as a centring and positioning suction valve body assembly. It consists of a guide body and an inner sleeve, which is inserted into the guide body. The material of the guide body is ZG35CrMo, and the inner sleeve is carburized and hardened by 20CrMnTi. Check the inner sleeve of the valve rod guide once a week. Replace it if there is obvious wear (the gap between the valve rod and guide is more than 3mm), so as not to lose the guiding function of the guide and accelerate the wear of the valve.

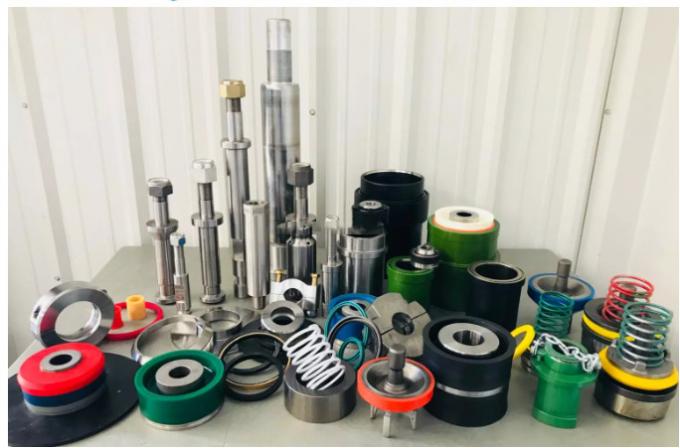

Topland main products:
