Product Details:
|
| Type: | Kelly Drill Pipe Spinner | Power: | Pneumatic / Hydraulic |
|---|---|---|---|
| Color: | Yellow,red | Usage: | Oilfield Drilling Equipment |
| Video Outgoing-inspection: | Provided | Machine Type: | Tubular Handling Tools |
| High Light: | API 8C Drill Pipe Spinner,Pneumatic Kelly drill pipe spinner,Hydraulic Kelly Drill Pipe Spinner |
||

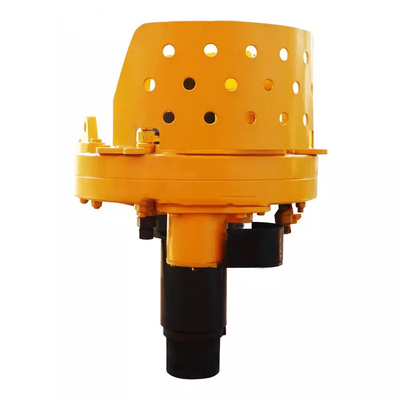

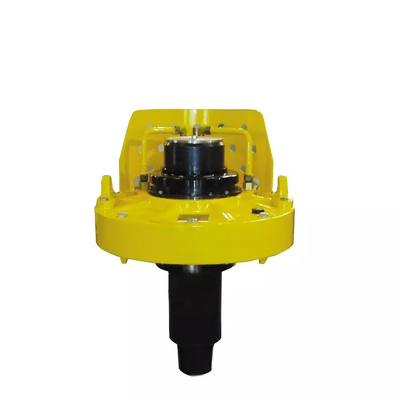

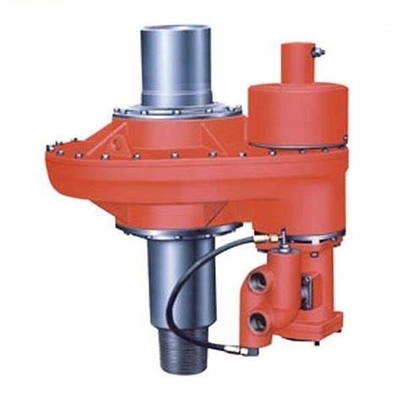

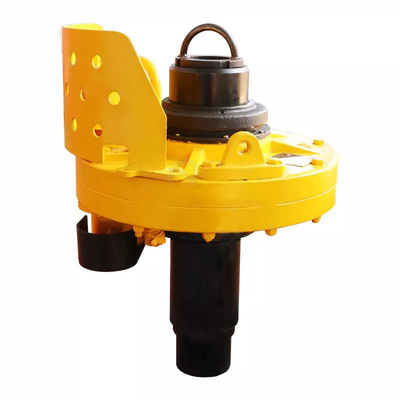

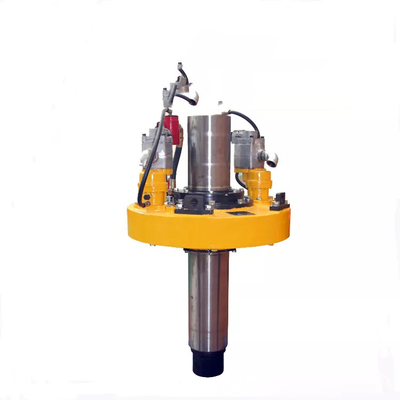

API 8C Oillfield Equipment Tubular Handling Tools Pneumatic / Hydraulic Kelly Drill Pipe Spinner Type 6800
Kelly Spinner description of Tubular Handing Tools:
Kelly spinner is a special equipment to connect single pipe by matching with mouse hole clamping device. It unitizes air or hydraulic motor to drive kelly to rotate, And is has the features of security, timr- saving time and high efficiency. It is designed and manufactured according to API Spec 8C “Specification For Drilling and Production Hoisting Equipment”.
Technical specifications
| Model | FXD | QF2 | Q3 | A6C | 6600 | 6800 | ||||
| Drive mode | Pneumatic Driven | Hydraulic Driven | ||||||||
| Max. static load | 2250kN | 2250kN | ||||||||
| Pressure | MPa | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 | 13.8 | |||||
| Psi | 72-130 | 72-130 | 72-130 | 2000 | ||||||
| Brake torque | Nm | 1200 | 1600 | 1650 | 1500 | 1500 | 1650 | |||
| ft.ibf | 885 | 1180 | 1215 | 1100 | 1100 | 1215 | ||||
| Idle speed | rpm | 76 | 72 | 72 | 170 | 130 | 110 | |||
| Rotating direction | Single | Double | Double | Double | ||||||
| consumption/flow | m3/min | 9.3 | 20 | 20 | 9.3 m3/min | 15 m3/min | 91 LPM | |||
| ft3/min | 328 | 706 | 706 | 328 ft3/min | 529 ft3/min | 24 GPM | ||||
| Stem connection | 6-5/8 REG LH | 6-5/8 REG LH | ||||||||
| Size | mm | 845*740*725 | 558*558*935 | 860*725*980 | 768*768*1225 | 740*710*978 | 740*710*978 | |||
| in | 33*29*28 | 22*22*37 | 34*28*39 | 30*30*48 | 29*28*38.5 | 29*28*38.5 | ||||
| Weight | Kg | 383 | 450 | 520 | 540 | 500 | 504 | |||
| lb | 844 | 992 | 1146 | 1190 | 1100 | 1110 | ||||
Topland main products:
1. API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
