Product Details:
|
| Prodcut Name: | Cylinder Head Plug | Material: | 45 Rough Steel |
|---|---|---|---|
| Modulation Process: | HB2217-255 | Type: | Mud Pump Spare Parts |
| Processing Type: | Forging | Weight: | 15kg |
| Color: | Black | Used: | Mud Pump Fluid End |
| High Light: | F Series Cylinder Head Plug,PZ Series Cylinder Head Plug,NB Series Cylinder Head Plug |
||

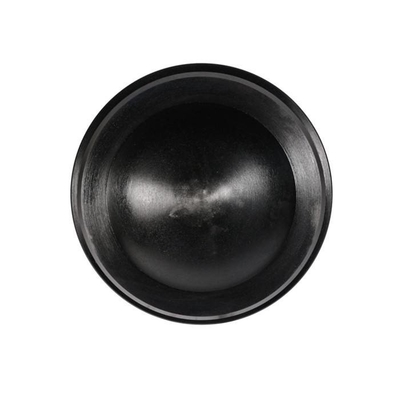

F/NB/PZ Series Cylinder Head Plug For Fluid End Parts Mud Pump
Cylinder Head Plug description of Mud Pump Spare Parts
Cylinder head is installed in the hydraulic cylinder. The cylinder head presses the positioning plate tightly in the F1300/1600 mud pump.
In the F800/1000 mud pump, cylinder head presses the cylinder device, which is pushing the cylinder liner.

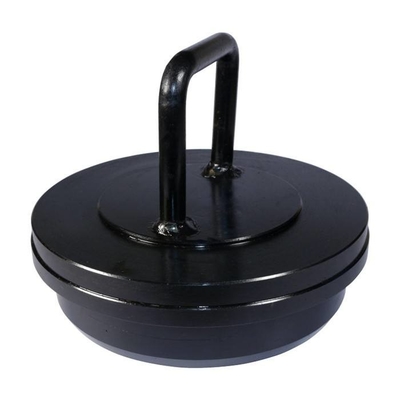

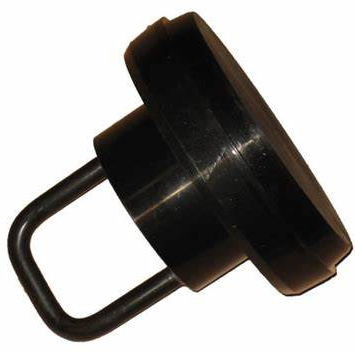

Cylinder head plug from the cylinder head handles and plug body composition, and welded together. Plug body 45 rough steel forgings, the modulation process HB2217-255.

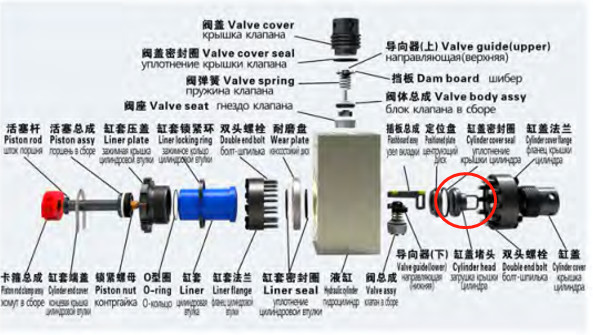

The cylinder head plug is installed in the fluid end studded assy, which atcs as a fixing function,Heat-treated and internally hardened for high durability; available in various materials to meet a wide range of applications; standard one-and/or-two-piece configuration, with designs available for pressure of 5000psi(35.1Mpa), 7500psi(52.7Mpa), and 10000psi(70.3Mpa); discharge connections available on each side; suction connections on each side or front center.
| PUMP TYPE | DRAWING NO. | New drawing NO. | D×L | W/Kg |
| F500 | AH35001-05.05A | AH050101050500 | 215.9×210 | 19.6 |
|
F800 F1000 |
AH33001-05.05A | AH100101050500 | 222.25×210 | 19.6 |
|
F1300 F1600 |
AH36001-05A.16.00 | AH130101050600 | 209.55×214.8 | 18.9 |
| BOMCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | F-1600L | F-2200HL |
| Hong Hua | HHF-500 | HHF-800 | HHF-1300 | HHF-1600 | 3NB-1600F | 5NB-1600 | 5NB-2400 | |
| EMSCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | FD-1000 | FC-2200 | FB-1300 |
| Gardner Denver | PAH | P7 | P8/9 | P10/11 | PXL | PX-11 | PZL | PY-FXD |
| National | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-200 | 14-P-220 | N-1000/1300 |
| Oilwell | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||||
| TSC | WF-500 | WF-800 | WF-1000 | WF-1300 | WF-1600 | WF-2000 | WF-2200 | |
| IDECO | T-500 | T-800 | T-1000 | T-1300 | T-1600 |
