Product Details:
|
| Prodcut Name: | Suction Manifold And Discharge Manifold | Material: | American Cast Iron A487-9D |
|---|---|---|---|
| Modulation Processing: | HB195-235 | Type: | Mud Pump Spare Parts |
| Key Words: | Drilling Rig Mud Pump Package | Application: | Oilfield Mud Pump |
| High Light: | F1600 Discharge Suction Manifold,F500 Discharge Suction Manifold,Mud Pump Discharge Suction Manifold |
||

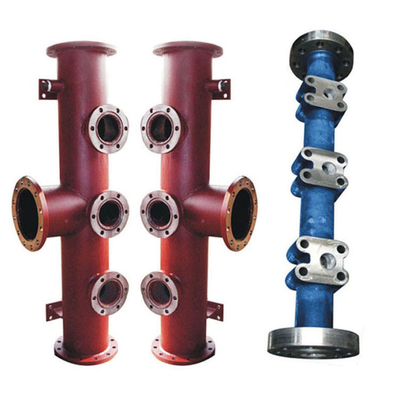

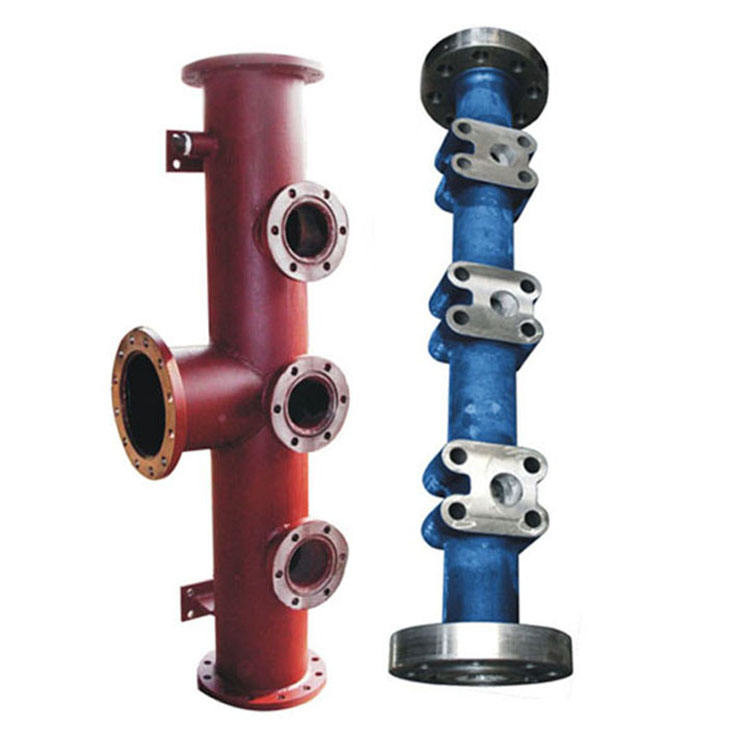

F500-F1600 Discharge Suction Manifold For Mud Pump Fluid End

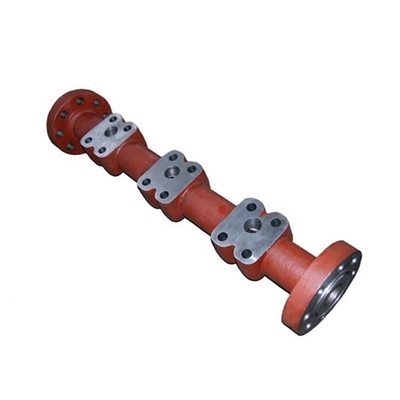

Discharge manifold Description of Mud Pump Spare Parts
Mud pump pressure medium discharge line is output. 35CrMo high quality casting blank processing. Three holes respectively, and the middle of it is connected to three hydraulic cylinders, one end and the end portion connected to the filter assembly, the output end and the other end through the four-way connection.
Discharge piping materials: American Cast Iron A487-9D, Resistant to corrosion and a wide temperature range and high strength characteristics.
| PUMP TYPE | DRAWING NO. | ERP NO. | D×L | W/Kg |
| F500 | AH35001-05.08 | AH0501010507 | 131×1403.4 | 157 |
| F800 | AH34001-05.01 | AH0801010501 | 374.7×1576 | 260 |
| F1000 | AH33001-05.08 | AH1001010507 | 374.7×1674.4 | 276 |
|
F1300 F1600 |
AH36001-05.09 | AH1301010509 | 375×1776 | 298 |
Suction manifold Description of Mud Pump Spare Parts
Inhalation consists of high quality seamless steel pipe with flange machining, it is at one end of the intake air bag, and the remaining two suction side flanges are imported, the user can use the pump is installed, choose one imported injection mud or water.
| PUMP TYPE | NEW DRAWING NO. | OLD DRAWING NO. |
| F500 | AH050101-051900 | AH35001-05.28.00A |
| F800 | AH080101-050500 | AH34001-05.06.00A |
| F1000 | AH100101-052300 | AH33001-05.34A.00 |
|
F1300 F1600 |
AH100101-052300 | AH33001-05.34A.00 |
