Product Details:
|
| Product Name: | Mud Pump Spare Parts Sealings | Material: | Rubber |
|---|---|---|---|
| Condition: | New | Application: | Drilling Mud Pump |
| Type: | O Ring, Oil SEAL Ring, Gasket | Color: | Black, Cutomerized |
| High Light: | Mud Pump Gasket O Ring,Drilling Pump Gasket O Ring,Mud Pump Oil Sealing Rings |
||

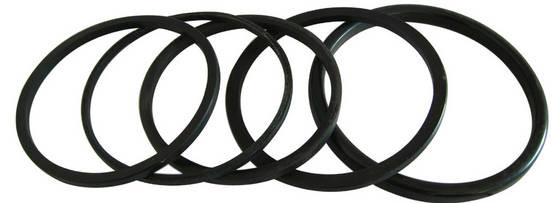

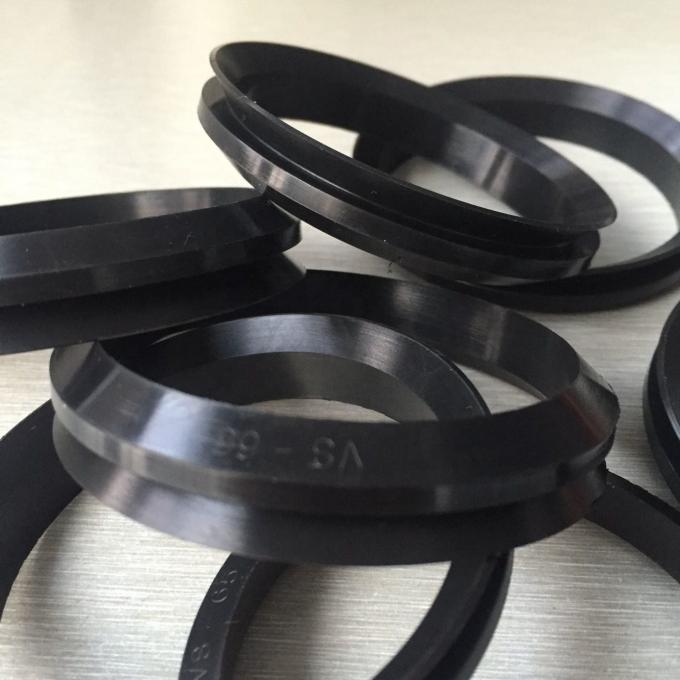

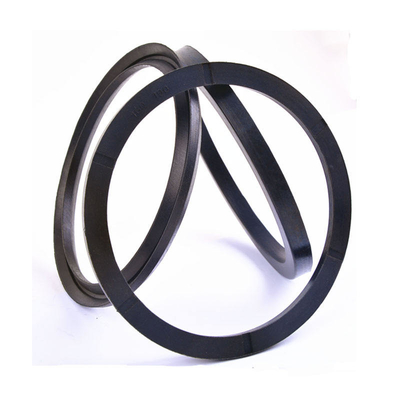

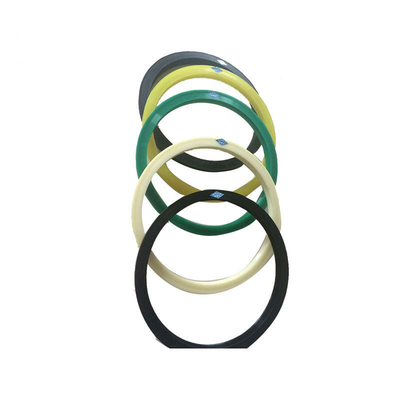

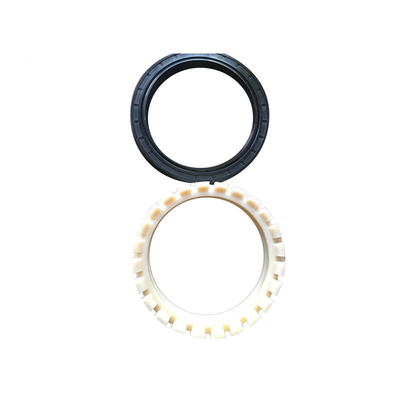

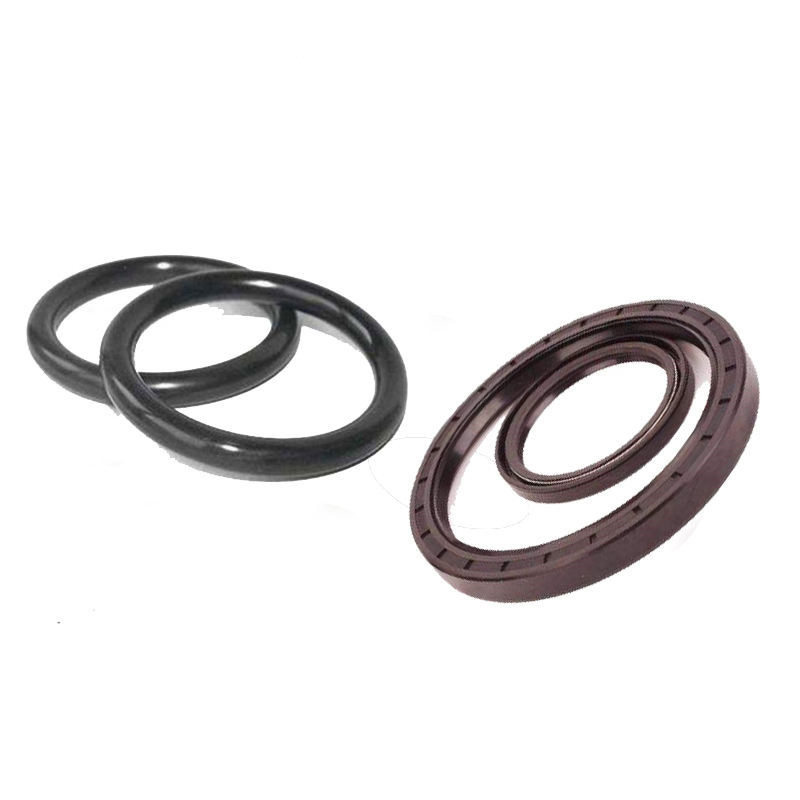

Drilling Mud Pump Gasket O Ring /Oil Sealing Rings For Mud Pump Spare Parts
Mud Pump Spare Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F2200, F2200HL, F-1300, F-1600, F1600HL, FB1300, FB1600, F-800, F-1000, F-500
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200
PZ7 Drilling mud pump spare parts
| PN. | DESCRIPTION | PN. | DESCRIPTION |
| 200PZG732 | SHIM (002) | 300PZJ715 | GASKET, VALVE COVER |
| 201PZG732 | SHIM (005) | 2007674 | BUSHING, SUCTION VALVE GUIDE |
| 202PZG732 | SHIM (007) | 2011860 | COVER-VALVE |
| 203PZG732 | SHIM (020) | 300PZG587 | LOCK-COVER |
| 12BA20 | BEARING-ROLLER, ECCENTRIC | 200PZG069 | MANIFOLD-SUCTION |
| 201PZG168 | PLATE-RETAINER, ECCENTRIC BEARING | 25BE41 | GASKET, SUCTION MANIFOLD TO CYLINDER |
| 655EG08D | SCREW, RETAINER TO ECCENTRIC | 655EG08N | SCREW, SUCTION MANIFOLD TO CYLINDER |
| 12BA18 | BEARING, CONNECTING ROD TO ECCENTRIC | 25C131N | GASKET, SUCTION MANIFOLD FLANGE |
| 74D18 | RING-RETAINING, CONNECTING ROD BEARING | 64CU11 | FLANGE, SUCTION - WELDNECK |
| 1PZ1400 | PLATE-RETAINING, BEARING TO ECCENTRIC | 655EG130 | SCREW, SUCTION FLANGE TO MANIFOLD |
| 655EF05D | SCREW, BEARING TO ECCENTRIC | 50B8 | NUT, SUCTION FLANGE TO MANIFOLD |
| 75B41 | SCREW, BEARING TO CONNECTING ROD | 200PZG071 | MANIFOLD-DISCHARGE |
| 12BA19 | BEARING-ROLLER, CROSSHEAD PIN | 25AL35 | GASKET, DISCHARGE MANIFOLD TO CYLINDER |
| 200PZG005 | CROSSHEAD | 209PZL110 | STUD, DISCHARGE MANIFOLD TO DISCHARGE FLANGE |
| 200PZG189 | PIN-CROSSHEAD | 50AW11 | NUT, DISCHARGE MANIFOLD TO DISCHARGE FLANGE |
| 202PZG168 | PLATE-RETAINER, CROSSHEAD PIN | 25V24 | GASKET, DISCHARGE MANIFOLD FLANGE |
| 655EG09D | SCREW, RETAINER PLATE TO CROSSHEAD | 64EB15 | FLANGE, DISCHARGE -WELDNECK |
| 75AG17 | SCREW, RETAINER PLATE TO CROSSHEAD PIN | 64EB240 | FLANGE, DISCHARGE, BLIND |
| 300PZG839 | ROD-EXTENSION | 2FXK840 | BAFFLE |
| PV701 | SCREW, ROD TO CROSSHEAD | 25BC69N | GASKET |
| 200PZG168 | PLATE-RETAINER, OIL STOP HEAD TO FRAME | 202PZL482A | FLUID VALVE ASSEMBLY |
| 2PO1398 | ADAPTOR, FOR ROTATING JACKSHAFT | 78H44 | SPRING, VALVE |
| 205PZL029 | CYLINDER-FLUID, 5000 PSI | 201PZL106 | INSERT, VALVE (POLYURETHANE) |
| 79L188 | STUD, CYLINDER TO FRAME (LONG) | 202PZL039 | SEAT-VALVE |
| 79AL6 | STUD, VALVE COVER RING TO CYLINDER | 50AW35 | LOCKNUT |
| 202PZL110 | STUD, CYLINDER TO DISCHARGE MANIFOLD | 201PZG060 | ROD-PISTON |
| 50B36 | NUT, CYLINDER TO FRAME STUD | 1PV14 | CLAMP, LINER |
| 50AQ30 | NUT, LINER CLAMP | 313PZL350 | PISTON, COMPOSITE (STD) 6" |
| 50B34 | NUT, VALVE COVER RING TO CYLINDER STUD | 321PZL350 | PISTON, COMPOSITE (STD) 5 1/2" |
| 50B34 | NUT, CYLINDER TO DISCHARGE MANIFOLD STUD | 321PZL350 | PISTON, COMPOSITE (STD) 4" |
| 2011861 | RING-RETAINER, VALVE COVER GASKET | PY13960 | LINER-FLUID 6" |
| 2011699 | RING-VALVE COVER | PY13955 | LINER-FLUID 5 1/2" |
| 300PZG456 | LINER-FLUID 4" |
Related Products:
FAQ
1.Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
