Product Details:
|
| Product Name: | Mud Pump Spare Parts V Belts | Model: | 5ZV25J-7620 |
|---|---|---|---|
| Material: | Rubber | Type: | Combined V-belt |
| Supply Model: | 3V/5V/8V | Length: | Customerized |
| Fuction: | Transmission | Application: | Drilling Mud Pump |
| High Light: | Oilfield Wedge Rubber V Belt,Mud Pump Wedge Rubber V Belt,Mud Pump Rubber Transmission Belt |
||

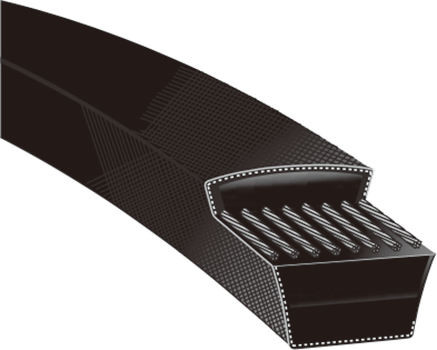

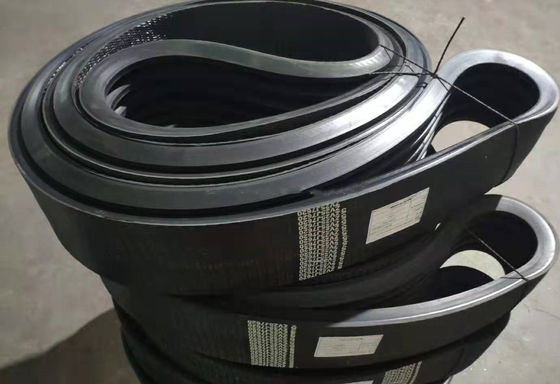

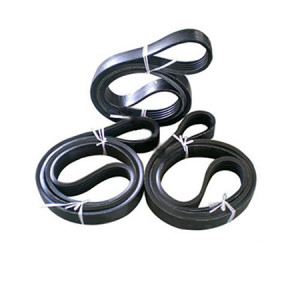

Oilfield Banded Wedge Rubber V Belt /Transmission Belt for Drilling Rig Mud Pump
We provide the Oilfields Transmission Belt for the following pump:
| EMSCO | F-350, F-500, F-650, F-800, F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-2200,D-300, D-375, D-500, D-700, DA-500, DA-700 |
| BOMCO | |
| GARDNER DENVER | PAH, PJ8A, TEE, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11 |
| IDECO | T-500, T-800, T-1000, T-1300, T-1600 |
| NATIONAL | JWS-400, 7-P-50, 8-P-80, 9-P-00, 10-P-130, 12-P-160, 14-P-200, 14-P-220,K-500, K-500A, K-700, K-700A |
| OILWELL | A-350-PT, A-560-PT, A-600-PT, A-850-PT, A-110-PT, A-1400-PT, A-1700-PT |
| UNBT | 8T-310, 8T-650, BRN-1, NBT-600, UNB-600, UNBT-950, UNBT-1180, UNBT-1180L |
| QZ/LS | 3NB-800, 3NB-1000, 3NB-1000C, 3NB-1300, 3NB-1300C, 3NB-1600 |
| WIRTH | TPK1000, TPK1600, TPK2000 |
Characteristics of Transmission V Blets :
Banded V-belt is connected by the connect layers and many narrow v-belts to a whole.When it is transporting,can be canceled the disadvantages of shaking,flapping and turning over etc.It make each belt stress evenly and can carry large load.
Mark:
The marked sequence of banded v-belt is as the type,numbers of banded,length size and length mark.It is marked to the outside perimeter of belt. If customers have special requirements,please mark the requirements in the product list.Please find the conversion of various model above the list.

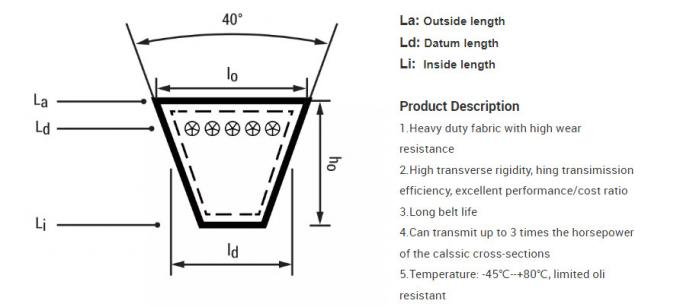

| Production type | Top width | Pitch width | Height | Angle | Length range(inch) | Length range(mm) |
| 3V(9J) | 9.7 | 10.3 | 9.7 | 40° | 47″--197″ | 1200—5000 |
| 5V(15J) | 15.7 | 17.5 | 15.7 | 40° | 59″--394″ | 1500—10000 |
| 8V(25J) | 25.4 | 28.6 | 25.4 | 40° | 79″--394″ | 2000—10000 |
| SPZ | 10.5 | / | 10.0 | 40° | 47″--197″ | 1200—1500 |
| SPA | 13.6 | / | 12.3 | 40° | 47″--197″ | 1200—1500 |
| SPB | 17.0 | / | 16.5 | 40° | 39″--394″ | 1500—10000 |
| SPC | 22.0 | / | 21.0 | 40° | 118″--492″ |
3000--12500 |
