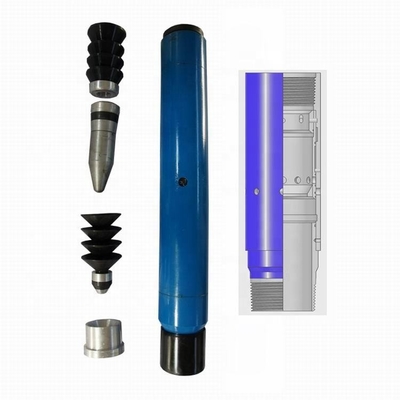

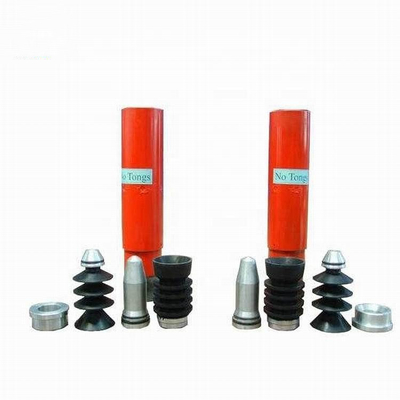

Product Details:
|
| Type: | Stage Cementing Collar | Application: | Energy & Minning |
|---|---|---|---|
| Machine Type: | Oilfield Cementing Equipment | Processing: | Forging |
| Material: | 35CrMo | ||
| High Light: | Hydraulic Stage Cementing Collar,API Oil Well Stage Cementing Collar,Double Pole Mechanical Cementing Collar |
||

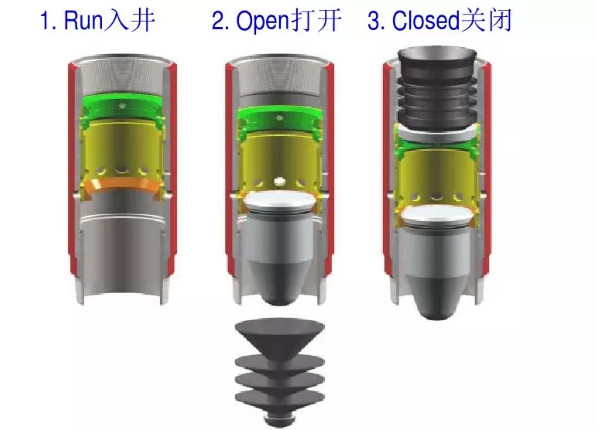

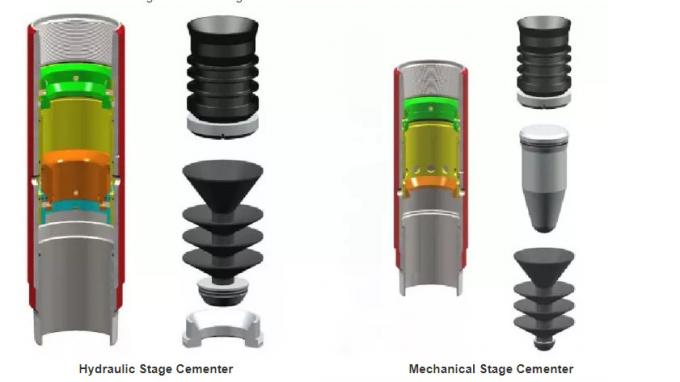

The multi-stage cementing collar provides an effective, economical way to cement one or more specific casing intervals or to cement upper zone after a lower zone has been cemented. The collar should be used with centralizers above and below and a cementing basket positioned below the ports. The operation of the collar is simple and reliable. It features a double locking mechanism consisting of a snap ring lock and ball lock system to assure that the ports are permanently locked closed after cementing is completed. Internal parts are designed to lock to prevent rotation during drill out and are constructed of easily drillable materials.
Features:
1.Opening pressure can be adjusted and it is not subjective to hole angle.
2.The pressure-relief design prevents fluid trapping and compression during the closing phase of the tool's operation.
3.The I.D of upper/lower sub is the same as that of casing, but smaller than that of closing sleeve, which can minimize chances of damages to the closing sleeve.
| Specifications, (in) | 5 1/2" | 7" | 9 5/8" | 13 3/8" |
| Max O.D., mm | 170 | 208 | 283 | 381 |
| Drill-out I.D., mm | 122 | 155 | 220 | 315 |
| Overall Length, mm | 1082 | 1182 | 1222 | 1280 |
| Rated Load, t | 140 | 170 | 210 | 300 |
| Sealing capacity, MPa | 25 | 25 | 25 | 25 |
| Opening Pressure, MPa | 13 | 13 | 13 | 14 |
| Closing Pressure, MPa | 5 | 5 | 5 | 5 |
| Lower Sliding Sleeve I.D., mm | 85 | 115 | 176 | 203 |
| Upper Sliding Sleeve I.D., mm | 95 | 125 | 197 | 285 |
